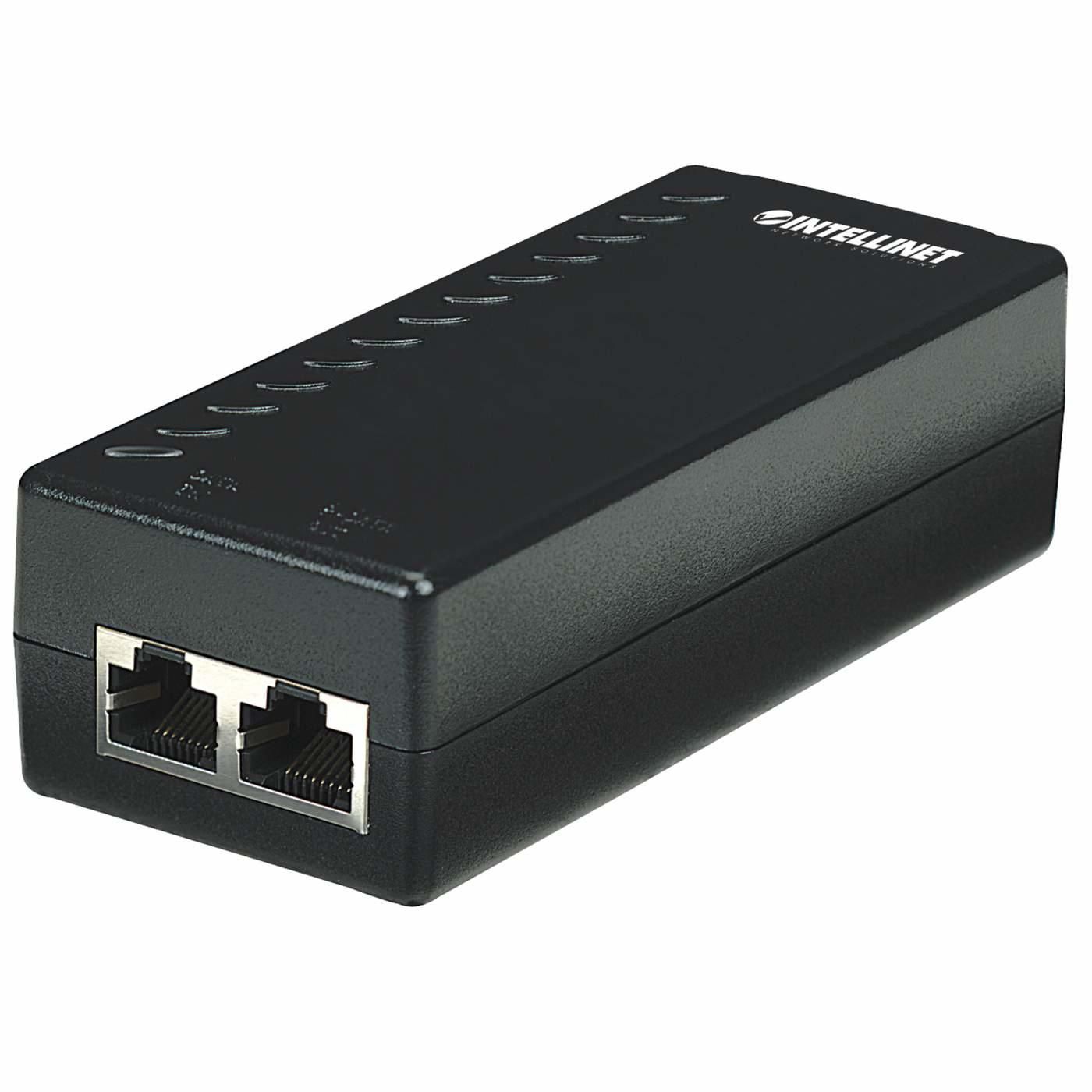

Intellinet Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant
Intellinet Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant, Fast Ethernet, 10,100 Mbit/s, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, Cat5, Black, SCP
Availability: In stock
Intellinet Power over Ethernet (PoE) Injector, 1 Port, 48 V DC, IEEE 802.3af Compliant. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u. Product colour: Black, Safety: SCP, Power protection features: Over voltage, Overload, Short circuit. Power over Ethernet (PoE) voltage: 52 V, Power requirements: 15.4 W, AC adapter frequency: 50/60 Hz. Certification: FCC Class B, Part 15, CE 89/336/EEC, UKCA, NDAA. Size (imperial): 5.08 cm (2"), Width: 50 mm, Depth: 120 mm
Specifications
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Cable types supported | Cat5 |
| Product colour | Black |
| LED indicators | No |
| Safety | SCP |
| Power protection features | Over voltage, Overload, Short circuit |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) voltage | 52 V |
| Power requirements | 15.4 W |
| AC adapter frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Input current | 0.45 A |
| AC adapter output voltage | 48 V |
| Output current | 0.35 A |
| Certification | FCC Class B, Part 15, CE 89/336/EEC, UKCA, NDAA |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 85 °C |
| Size (imperial) | 5.08 cm (2") |
| Width | 50 mm |
| Depth | 120 mm |
| Height | 35 mm |
| Weight | 140 g |
| Number of products included | 1 pc(s) |
| Manual | Yes |
| Harmonized System (HS) code | 85044095 |
