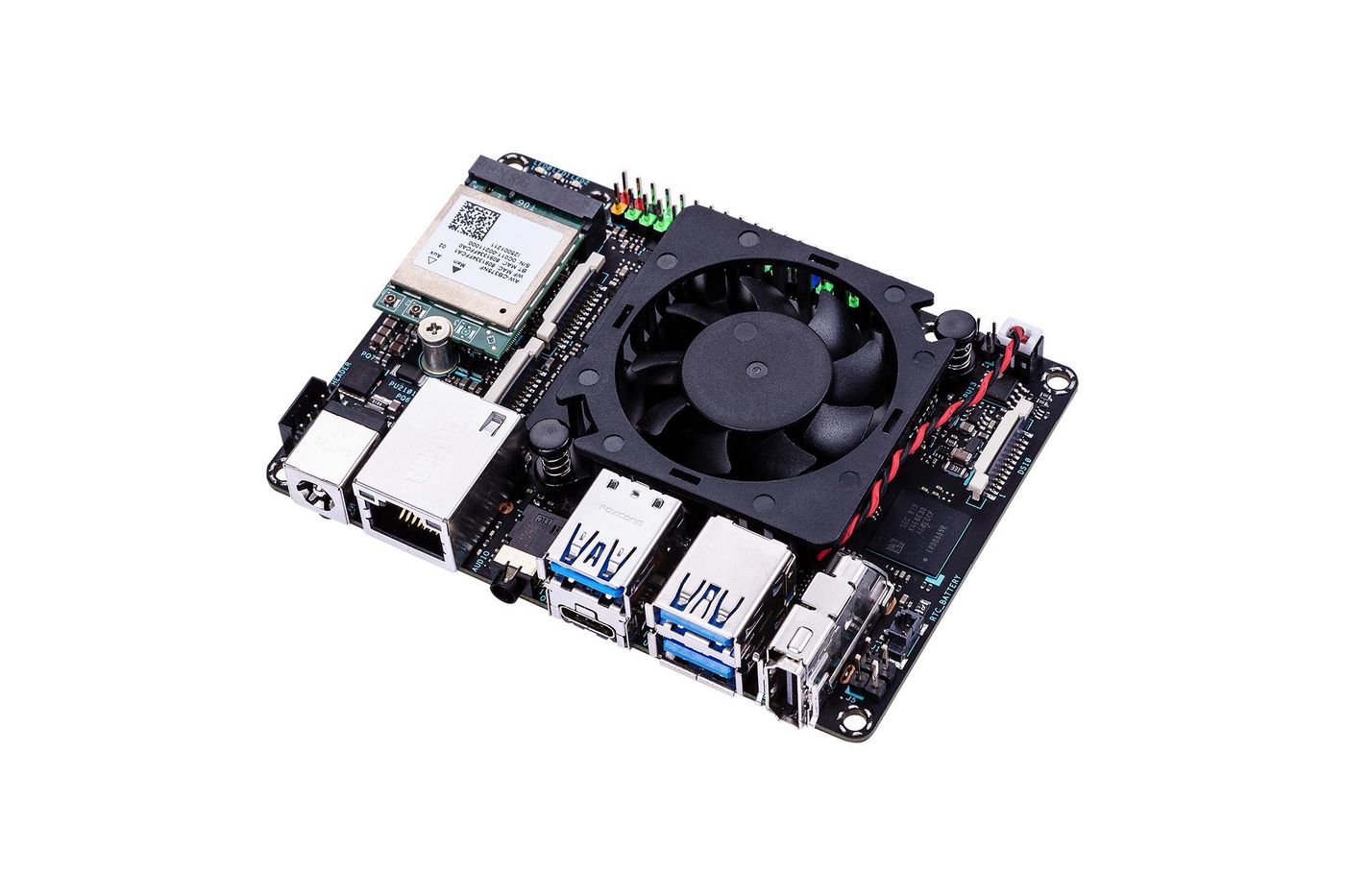

ASUS Tinker Edge R development board Rockchip RK3399Pro 1.8 MHz
€38,97
ASUS Tinker Edge R, Rockchip, Rockchip RK3399Pro, 1.8 MHz, 6 GB, LPDDR4-SDRAM, Dual-channel
Availability: In stock
Secure payment · Fast delivery
EAN:4718017593212Categories:, , Brand:
ASUS Tinker Edge R. Processor manufacturer: Rockchip, Processor model: Rockchip RK3399Pro, Processor frequency: 1.8 MHz. Maximum internal memory: 6 GB, Internal memory type: LPDDR4-SDRAM, Memory channels: Dual-channel. USB version: 3.2 Gen 1 (3.1 Gen 1), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Ethernet interface type: Gigabit Ethernet. On-board graphics card model: ARM Mali-T860 MP4. DC input voltage: 12 - 19 V
Specifications
Specifications
| Processor manufacturer | Rockchip |
| Processor model | Rockchip RK3399Pro |
| Processor frequency | 1.8 MHz |
| Maximum internal memory | 6 GB |
| Internal memory type | LPDDR4-SDRAM |
| Memory channels | Dual-channel |
| Flash memory type | eMMC |
| eMMC capacity | 16 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Storage location | Internal |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 4 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Headphone out | Yes |
| S/PDIF out port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| PWM digital I/O pins | 3 |
| HDMI ports quantity | 1 |
| MIPI DSI 1.1 | Yes |
| UART | Yes |
| GPIO interface | Yes |
| I2C interface | Yes |
| MPI DSI interface | Yes |
| MPI CSI interface | Yes |
| SPI interface | Yes |
| I2S interface | Yes |
| PCM interface | Yes |
| Real-time clock (RTC) | Yes |
| On-board graphics card | Yes |
| On-board graphics card model | ARM Mali-T860 MP4 |
| DC input voltage | 12 - 19 V |
| Board dimensions | 100 x 72 mm |
| Package type | Box |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
