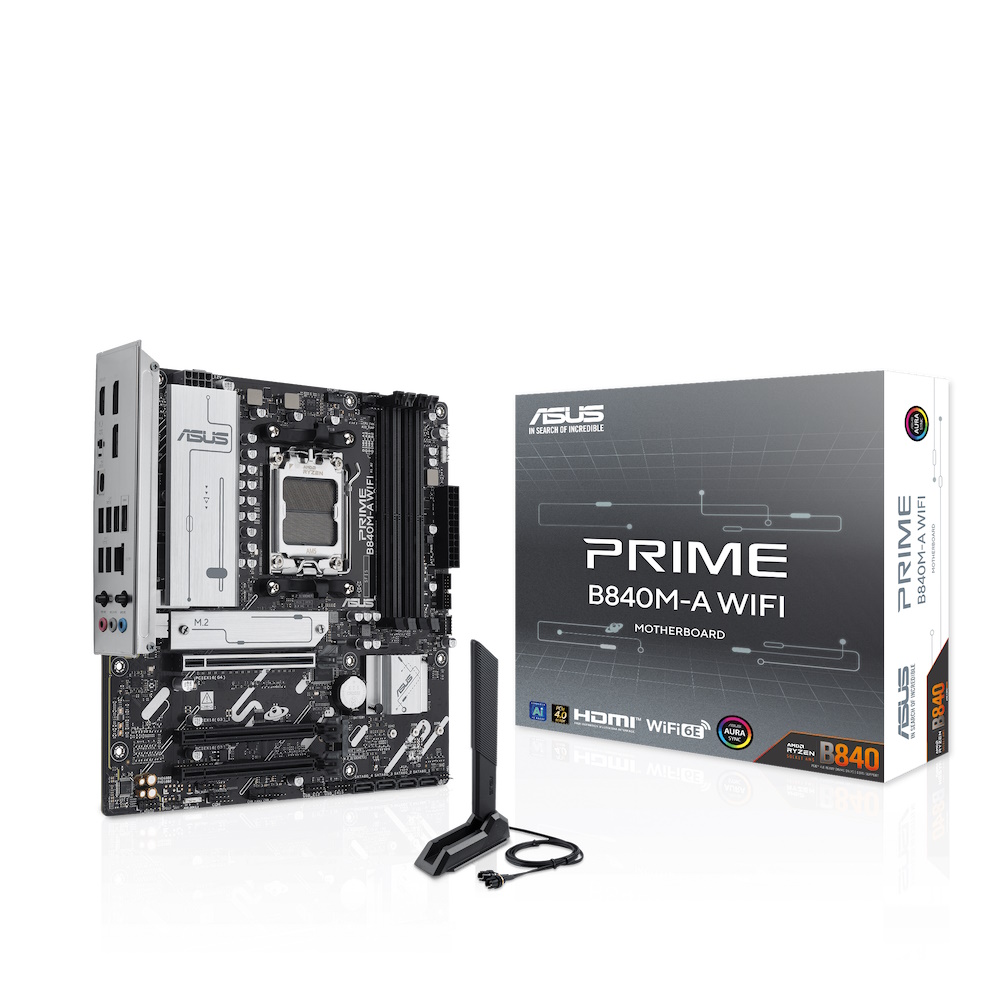

ASUS Prime B840-A WIFI mATX AM5
€105,85
ASUS PRIME B840M-A WIFI - Bundkort - micro ATX - Socket AM5 - AMD B840 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Availability: In stock
Secure payment · Fast delivery
EAN:4711387797143Categories:, , Brand:
ASUS PRIME B840M-A WIFI - Bundkort - micro ATX - Socket AM5 - AMD B840 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Specifications
Specifications
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B840 Chipset |
| Memory | 4x DIMM, DDR5, 192GB max. |
| Graphics | 1x DisplayPort 1.4, 1x HDMI™ 2.1 port |
| Expansion Slots | 1x Ryzen 9000 & 7000: PCIe 4.0 x16 slot (x16 mode) OR Ryzen 8000: PCIe 4.0 (x8/x4 mode), 2 x PCIe 3.0 x16 slots (support x1 mode) |
| Storage | M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode), 4 x SATA 6Gb/s ports |
| Ethernet | 1x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | 2x2 Wi-Fi 6E (802.11ax), Bluetooth® v5.3 |
| Rear USB | 2 x USB 10Gbps ports (2 x Type-A), 1 x USB 5Gbps port (1 x USB Type-C®), 4 x USB 2.0 ports (4 x Type-A) |
| Front USB | 1 x USB 5Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Back Panel I/O Ports | 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks,, 1 x BIOS FlashBack™ button |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Accessories | 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x M.2 rubber packages, 3 x Screw packages for M.2 SSD, 1 x Quick start guide |
| Form Factor | micro-ATX Form Factor (24.4 cm x 24.4 cm) |
