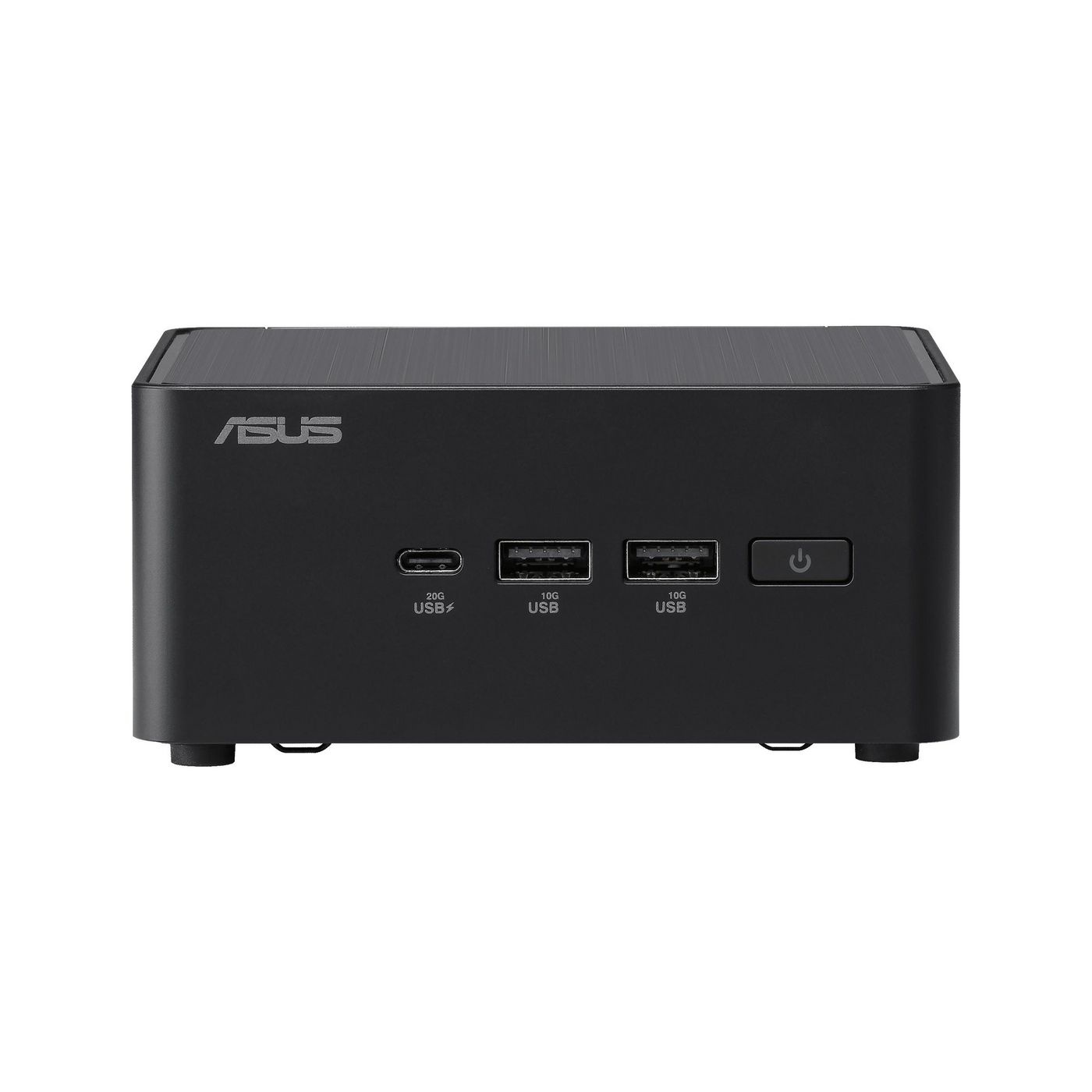

ASUS NUC 14 Pro RNUC14RVHV700002I UCFF Black 165H
ASUS NUC 14 Pro RNUC14RVHV700002I, UCFF, Mini PC barebone, DDR5-SDRAM, M.2, PCI Express, Serial ATA III, 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 120 W
Availability: In stock
ASUS NUC 14 Pro RNUC14RVHV700002I. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: SSD, Storage drive interface: M.2, PCI Express, Serial ATA III. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W
Specifications
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 165H |
| Processor cores | 16 |
| Processor threads | 22 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Built-in processor | Yes |
| Performance-core boost frequency | 5 GHz |
| Efficient-core boost frequency | 3.8 GHz |
| Processor cache | 24 MB |
| Thermal Design Power (TDP) | 28 W |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported storage drive types | SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2, PCI Express, Serial ATA III |
| NVMe | Yes |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® Graphics |
| Built-in speaker(s) | No |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB4 Gen 2x2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Number of processors supported | 1 |
| Windows operating systems supported | Windows 11 |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 54 mm |
| Weight | 600 g |
| Power cord included | Yes |
| Quick start guide | Yes |
