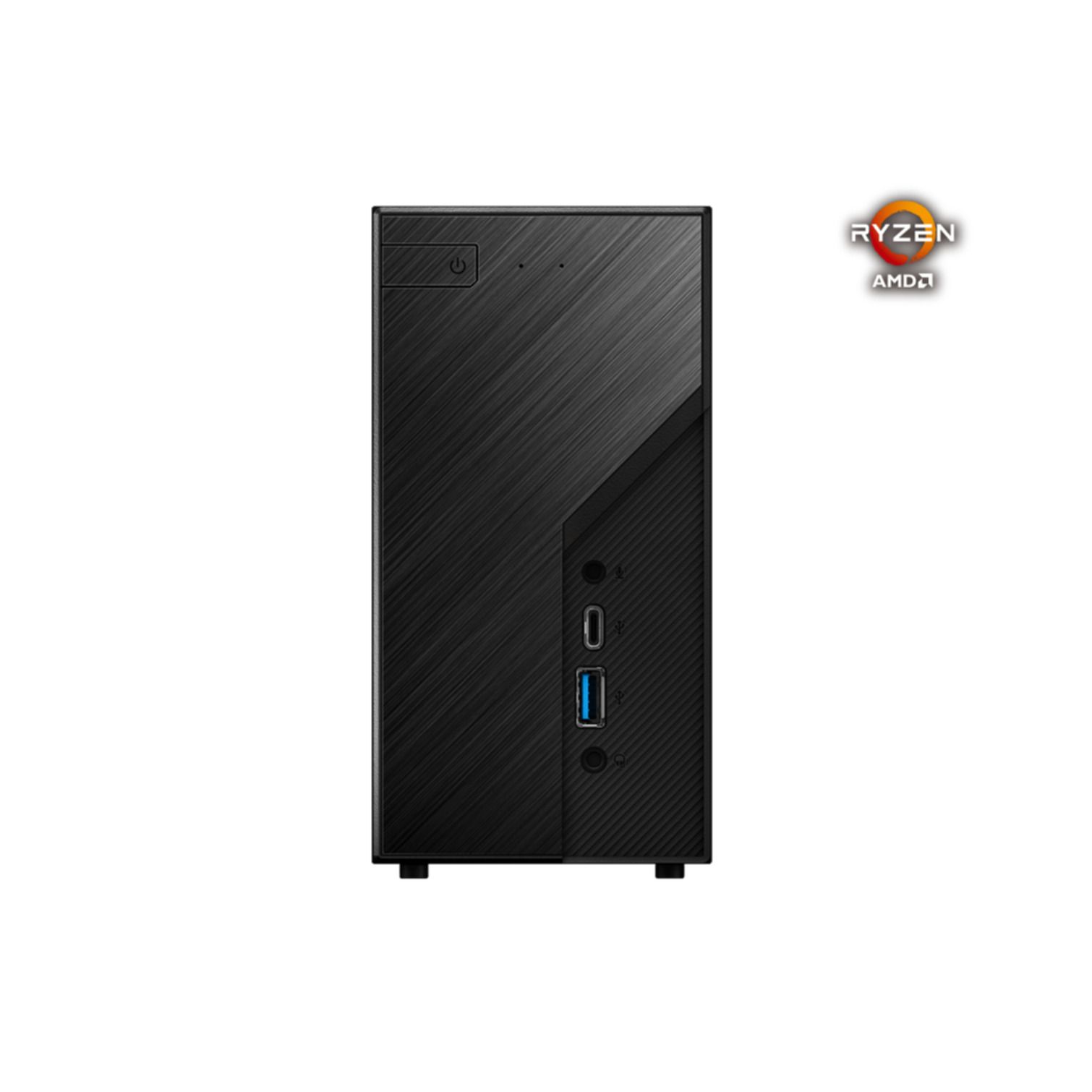

ASROCK DeskMini X300 - Barebone
Small APU Form Factor AMD AM4 Socket CPU Support Renoir, Picasso, Raven Ridge, up to 65W Support MAX Height ≦46mm CPU Cooler Overclocking Option in BIOS ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU. Insane Memory Performance ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance. 4X Storages ASRock DeskMini supports up to 4 Storages M2_1 M.2 (2280) –PCIe Gen3 x4 M2_2 M.2 (2280) –PCIe Gen3 x2/x4 2x 2.5” SATA 6Gb SSD/HDD Tray Mini Home Data Center DeskMini supports RAID 0/1 function! Build mini data center at home! RAID 0 –offers superior I/O performance RAID 1 –protects critical data in mirrored data Heatsink on MOSFET ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading. Triple Display DeskMini supports 3 dis
Availability: In stock
Small APU Form Factor AMD AM4 Socket CPU Support Renoir, Picasso, Raven Ridge, up to 65W Support MAX Height ≦46mm CPU Cooler Overclocking Option in BIOS ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU. Insane Memory Performance ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance. 4X Storages ASRock DeskMini supports up to 4 Storages M2_1 M.2 (2280) –PCIe Gen3 x4 M2_2 M.2 (2280) –PCIe Gen3 x2/x4 2x 2.5” SATA 6Gb SSD/HDD Tray Mini Home Data Center DeskMini supports RAID 0/1 function! Build mini data center at home! RAID 0 –offers superior I/O performance RAID 1 –protects critical data in mirrored data Heatsink on MOSFET ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading. Triple Display DeskMini supports 3 display output simultaneously Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive. USB Type-C A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.
Specifications
| Built-in processor | no |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2933, 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5, M.2 |
| RAID levels | 0, 1 |
| On-board graphics card | no |
| Motherboard chipset | AMD X300 |
| Processor socket | Socket AM4 |
| Number of processors supported | 1 |
| Compatible processor series | AMD Athlon, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| Built-in speaker(s) | no |
| Ethernet LAN | yes |
| Wi-Fi | no |
| LAN controller | Realtek RTL8111H |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | yes |
| Number of M.2 (M) slots | 2 |
| Chassis type | 1.92L sized PC |
| Product colour | Black |
| On/off switch | yes |
| LED indicators | yes |
| Product type | Mini PC barebone |
| Harmonized System (HS) code | 84713000 |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| AC adapter output voltage | 19 V |
| Width | 80 mm |
| Depth | 155 mm |
| Height | 155 mm |
