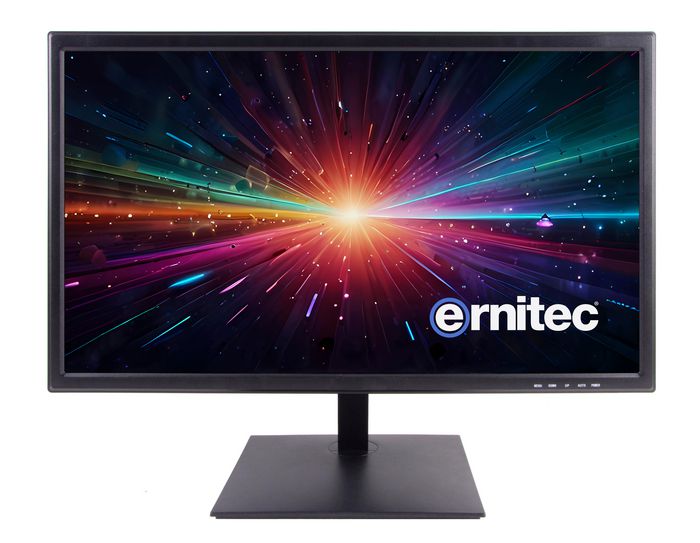

Ernitec 22" 24/7 Full-HD Surveillance monitor for 24/7 use. 1x HDMI 2.0, 1x VGA, 2x BNC inputs. 1x BNC output, 2x Speakers
High Performance 24/7 Security Monitor When you need a display that lasts, Ernitec delivers with this state-of-the-art monitor. Featuring a BNC input, it’s easy to connect your analog camera for seamless integration. Display Characteristics • Screen Size: 22 inches • Active Display Area: 476.64mm (W) × 268.11mm (H) • Display Mode: 16:9 • LED Type: TFT-LED • Resolution: 1920 × 1080 • Display Color: 16.7 million • Pixel Pitch: 0.248mm (H) × 0.248mm (V) • Brightness: 250 nits • Contrast Ratio: 1000:1 • Viewing Angle: 178° (H) / 178° (V) • Response Time: 5ms • Backlight: LED Input & Output • HDMI 2.0: 1 • VGA: 1 • BNC Input: 2 • BNC Output: 1 • Speaker: 2x 3W (Stereo) Video • Color System: PAL/NTSC/SECAM • OSD Control: Auto adjust, Brightness, Contrast, Horizontal/Vertical Position, Clock, Phase, Color, Language • 3D Comb Filter: Yes • Video Noise Reduction: Yes Power & Mounting • Power Supply: DC 12V, 50/60Hz • Working Temperature: -30 to +85°C • Power Consumption: ≤25W • Menu Language
Availability: In stock
High Performance 24/7 Security Monitor When you need a display that lasts, Ernitec delivers with this state-of-the-art monitor. Featuring a BNC input, it’s easy to connect your analog camera for seamless integration. Display Characteristics • Screen Size: 22 inches • Active Display Area: 476.64mm (W) × 268.11mm (H) • Display Mode: 16:9 • LED Type: TFT-LED • Resolution: 1920 × 1080 • Display Color: 16.7 million • Pixel Pitch: 0.248mm (H) × 0.248mm (V) • Brightness: 250 nits • Contrast Ratio: 1000:1 • Viewing Angle: 178° (H) / 178° (V) • Response Time: 5ms • Backlight: LED Input & Output • HDMI 2.0: 1 • VGA: 1 • BNC Input: 2 • BNC Output: 1 • Speaker: 2x 3W (Stereo) Video • Color System: PAL/NTSC/SECAM • OSD Control: Auto adjust, Brightness, Contrast, Horizontal/Vertical Position, Clock, Phase, Color, Language • 3D Comb Filter: Yes • Video Noise Reduction: Yes Power & Mounting • Power Supply: DC 12V, 50/60Hz • Working Temperature: -30 to +85°C • Power Consumption: ≤25W • Menu Languages: English, French • Mounting Options: Stand mount, VESA mount • Weight: 3.5kg • MTBF: 50,000 hours • VESA Size: 100x100 • EDID Compatibility: Not compatible Included Accessories • Screws • Cable holder • Quick start guide This monitor is designed to provide reliable performance around the clock, making it an ideal choice for security applications.
Specifications
| Detachable stand | Yes |
| Market positioning | Industrial |
| Product colour | Black |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness (typical) | 250 cd/m² |
| Display diagonal | 22 " |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LCD, LED |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Response time | 5 ms |
| Viewable size, horizontal | 47,7 cm |
| Viewable size, vertical | 26,8 cm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Comb filter | 3D |
| Compatible wall mount | Vesa 100 x 100 |
| Dimensions (WxDxH) | 506 x 48 x 303 mm |
| Mean time between failures (MTBF) | 50000 h |
| Noise filter | Yes |
| Package dimensions (WxDxH) | 550 x 108 x 413 mm |
| Picture enhancement | DNIe digital image processing |
| Speakers | 2 x 3W Stereo |
| Weight | 3500 g |
| Cables included | Power |
| Power adapter included | No |
| Quick start guide | Yes |
| Screws included | Yes |
| Stand included | Yes |
| AC (power) in | Yes |
| BNC input ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 1 |
| Power consumption (average) | 25 W |
| Power plug type | C14 coupler |
| Socket connector type | C13 |
| Brand Name | Ernitec |
| Homepage | http://www.ernitec.com |
| Warranty | 5 years |
| 19 " | 0070-24219-BNC |
| 22 " | 0070-24222-AC |
| 24 " | 0070-24224-AC |
| 28 " | 0070-24228-AC |
