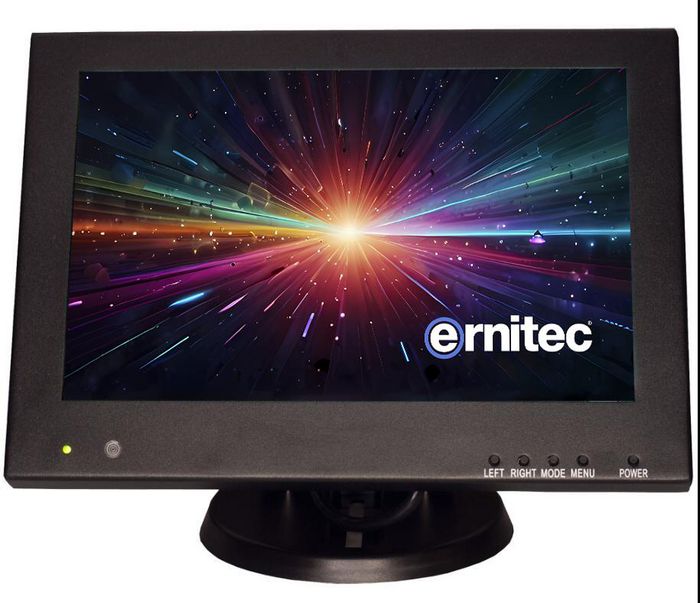

Ernitec 10" 24/7 HD Surveillance monitor. 1280x800 Pixels. 1x HDMI 2.0, 1x VGA, 2x BNC inputs. 1x BNC output, 2x Speakers, PSU.
Product Features: Experience the reliability of our industrial-level DID LCD panel, designed for continuous 24/7 operation. This monitor boasts a physical resolution of 1280 x 800P and a rapid 5ms response time to eliminate image ghosting. Equipped with the latest 3D digital filtering and noise reduction technology, it ensures fast picture response and a wide 178° viewing angle for distortion-free images. Enjoy high-fidelity digital processing for brilliant and vivid video, complemented by built-in speakers and a user-friendly menu for convenient control. Display Characteristics • Screen Size: 10 inches • Active Display Area: 162mm (W) × 121.5mm (H) • Display Mode: 16:9 • LED Type: TFT-LED • Resolution: 1280 x 800 • Display Color: 16.7 million • Pixel Pitch: 0.2025mm (H) × 0.2025mm (V) • Brightness: 250 nits • Contrast Ratio: 500:1 • Viewing Angle: 178° (H) / 178° (V) • Response Time: 5ms • Backlight: LED Input & Output • HDMI 2.0: 1 • VGA: 1 • BNC Input: 2 • BNC Output: 1 • Speake
Availability: In stock
Product Features: Experience the reliability of our industrial-level DID LCD panel, designed for continuous 24/7 operation. This monitor boasts a physical resolution of 1280 x 800P and a rapid 5ms response time to eliminate image ghosting. Equipped with the latest 3D digital filtering and noise reduction technology, it ensures fast picture response and a wide 178° viewing angle for distortion-free images. Enjoy high-fidelity digital processing for brilliant and vivid video, complemented by built-in speakers and a user-friendly menu for convenient control. Display Characteristics • Screen Size: 10 inches • Active Display Area: 162mm (W) × 121.5mm (H) • Display Mode: 16:9 • LED Type: TFT-LED • Resolution: 1280 x 800 • Display Color: 16.7 million • Pixel Pitch: 0.2025mm (H) × 0.2025mm (V) • Brightness: 250 nits • Contrast Ratio: 500:1 • Viewing Angle: 178° (H) / 178° (V) • Response Time: 5ms • Backlight: LED Input & Output • HDMI 2.0: 1 • VGA: 1 • BNC Input: 2 • BNC Output: 1 • Speaker: 2x 3W (Stereo) Video • Color System: PAL/NTSC/SECAM - 480P, 576P, 720P • OSD Control: Auto adjust, Brightness, Contrast, Horizontal/Vertical Position, Clock, Phase, Color, Language • 3D Comb Filter: Yes • Video Noise Reduction: Yes Power & Mounting • Power Supply: DC 12V, 50/60Hz • Working Temperature: -30 to +85°C • Power Consumption: ≤8W • Menu Languages: English (other languages supported) • Mounting Options: VESA mount • Weight: 3.5kg • VESA Size: 75x75 • MTBF: 50,000 hours Included Accessories • Industrial PSU • Screws • Cable holder • Quick start guide This monitor is perfect for demanding environments, ensuring high performance and durability.
Specifications
| Detachable stand | Yes |
| Front bezel colour | Black |
| Market positioning | Industrial |
| Product colour | Black |
| 3D | Yes |
| Backlight type | LED |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 173 cd/m² |
| Display brightness (typical) | 173 cd/m² |
| Display diagonal | 10,1 " |
| Display number of colours | 16.7 million colours |
| Display resolution | 1280 x 800 pixels |
| Display technology | LCD, LED |
| Native aspect ratio | 16:9 |
| Pixel pitch | 0.630(H)×0.630(V) mm |
| Response time | 5 ms |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| On Screen Display (OSD) languages | English |
| Panel mounting interface | 75 x 75 mm |
| Operating temperature (T-T) | -30 - +85 °C |
| Accessories included | Industrial PSU,Screw, Cable holder, Quick start guide |
| Active display area (W x H) | 211.2mm(W)×158.4mm(H) mm |
| Analog signal format system | NTSC, PAL, SECAM |
| Certification | EMC Class A |
| Comb filter | 3D |
| Contrast ratio | 1000:1 |
| Dimensions (WxDxH) | 260 x 43 x 185 mm |
| Mean time between failures (MTBF) | 50000 h |
| Mounting | Stand mount, VESA mount 75 x 75 mm |
| Noise filter | Yes |
| Number of colours | 16.78 million colours |
| Package dimensions (WxDxH) | 430 x 125 x 260 mm |
| Picture enhancement | DNIe digital image processing |
| Power consumption | 7 W |
| Speakers | 2x3W (Stereo) |
| Weight | 2000 g |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Screws included | Yes |
| Stand included | Yes |
| Operating hours (hours/days) | 24/7 |
| BNC input ports | 2 |
| DisplayPorts quantity | 0 |
| DVI-I ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 1 |
| Socket connector type | C13 |
| Brand Name | Ernitec |
| Homepage | http://www.ernitec.com |
| Warranty | 5 years |
| 8 " | 0070-24108-M |
| 10,1 " | 0070-24110-M-L |
| 22 " | 0070-24222-AC-M |
| 43 " | 0070-24143 |
| 49 " | 0070-24149 |
| 55 " | 0070-24155 |
| 65 " | 0070-24165 |
| 75 " | 0070-24175 |
| 86 " | 0070-24186 |
| 98 " | 0070-24198 |
