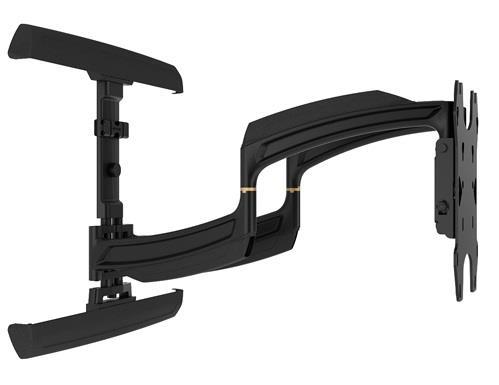

Chief TS525TU | THINSTALL Large 635mm Dual Swing Arm | VESA 100x100-800x400 | Max 56.7kg | Black
A lightweight, low-profile full-motion wall display mount for TVs 42-75". Easily installs with one person by mounting the top rail and sliding on the assembly.
Availability: In stock
A lightweight, low-profile full-motion wall display mount for TVs 42-75". Easily installs with one person by mounting the top rail and sliding on the assembly. In-wall installation available when TA500 purchased with mount. Key Features Low Profile Sleek design collapses to 2.0" (50 mm) (without interface) or 2.1” (53 mm) (with interface) Ultra Low Profile Facilitate ADA compliance with an ultra-low profile when installed together with a TA500 in-wall back box Extends up to 25" (635 mm) Full extension maximizes viewing potential Centris™ Low-Profile Tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles Centerless™ Lateral Shift Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
Specifications
| Color | Black |
| Display orientation | Landscape |
| Height adjustable | yes; 25mm |
| Side adjustment | yes; 406mm |
| Depth adjustment | yes |
| Tiltable | yes; -15° |
| Swing/Pan | yes |
| Roll/Pivot | no |
| Motorized | no |
| Lockable | no |
| Number of displays | 1 pcs. |
| Weight capacity (per screen) | 56.7 kg |
| Mounting type | Wall |
| VESA mount interface (mm) | 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x300, 500x400, 600x200, 600x300, 600x400, 700x200, 700x400, 800x200, 800x400 |
| Videowall | no |
| Warranty | 10 years |
| Packaging size | 830 x 550 x 80 mm |
| Packaging weight | 23.40 kg |
