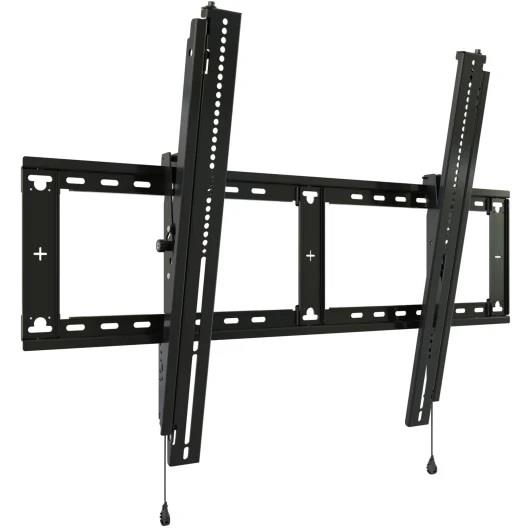

Chief RXT3 | Extra-Large Fit™ Tilt Display Wall Mount | VESA 100x100-915x650 | Max 113.4kg | Black
The Fit series RXT3 is an extra-large tilt display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5” (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.
Availability: In stock
The Fit series RXT3 is an extra-large tilt display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5” (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved. Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included Display can be tilted up to 12° to set the optimal viewing angle Open wall plate allows for flexible positioning around power and data wall boxes Supports display mounting patterns up to 915 x 650 mm Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen Easy access magnetic quick-store release pullcords Kickstand for easy access to power and signal connections Theft deterrent security options (not included) UL and TUV safety standards approved
Specifications
| Color | Black |
| Display orientation | Landscape |
| Height adjustable | yes; 19,1 mm |
| Side adjustment | yes |
| Depth adjustment | no |
| Tiltable | yes; -12° |
| Swing/Pan | no |
| Roll/Pivot | no |
| Motorized | no |
| Lockable | yes; With Padlock (Optional) |
| Number of displays | 1 pcs. |
| Weight capacity (per screen) | 113.4 kg |
| Mounting type | Wall |
| VESA mount interface (mm) | 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 200x500, 200x600, 300x100, 300x200, 300x300, 300x400, 300x500, 300x600, 400x100, 400x200, 400x300, 400x400, 400x500, 400x600, 500x100, 500x200, 500x300, 500x400, 500x500, 500x600, 600x100, 600x200, 600x300, 600x400, 600x500, 600x600, 700x100, 700 |
| Videowall | no |
| Warranty | 10 years |
| Packaging size | 1,165 x 240 x 70 mm |
| Packaging weight | 7.20 kg |
