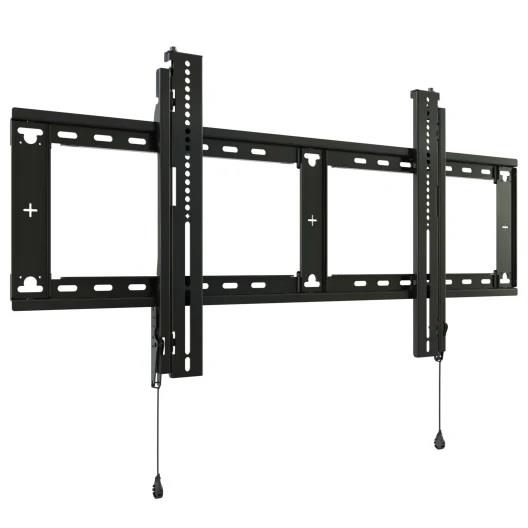

Chief RLF3 | Large Fit™ Fixed Display Wall Mount | VESA 960x450 mm | Max 90.7kg | Black
The Fit series RLF3 is a large fixed display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 19 mm post-installation leveling, robust wall plate design supporting up to 90.7 kg, 25 mm low-profile depth, and UL and TUV safety standard approvals.
Availability: In stock
The Fit series RLF3 is a large fixed display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 19 mm post-installation leveling, robust wall plate design supporting up to 90.7 kg, 25 mm low-profile depth, and UL and TUV safety standard approvals. Low profile 25 mm depth facilitates ADA compliance for typical AV design requirements Easy to reach 19 mm post-installation leveling screw and 254 mm ball end hex-key included Open wall plate allows for flexible positioning around power and data wall boxes Supports display mounting patterns up to 960 x 450 mm Re-designed rigid wall plate supports up to 90.7 kg and has additional mounting slots for improved installation experience Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen Easy access magnetic quick-store release pullcords Kickstand for easy access to power and signal connections Theft deterrent security options (not included) UL and TUV safety standards compliant
Specifications
| Color | Black |
| Display orientation | Landscape |
| Height adjustable | yes; 19,1 mm |
| Side adjustment | yes |
| Depth adjustment | no |
| Tiltable | no |
| Swing/Pan | no |
| Roll/Pivot | no |
| Motorized | no |
| Lockable | yes; With Padlock (Optional) |
| Number of displays | 1 pcs. |
| Weight capacity (per screen) | 90.7 kg |
| Mounting type | Wall |
| VESA mount interface (mm) | 100x100, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 300x400, 400x100, 400x200, 400x300, 400x400, 500x100, 500x200, 500x300, 500x400, 600x100, 600x200, 600x300, 600x400, 700x100, 700x200, 700x300, 700x400, 800x100, 800x200, 800x300, 800x400, 900x100, 900x200, 900x300, 900 |
| Videowall | no |
| Warranty | 10 years |
| Packaging size | 50 x 1,000 x 600 mm |
| Packaging weight | 5.95 kg |
