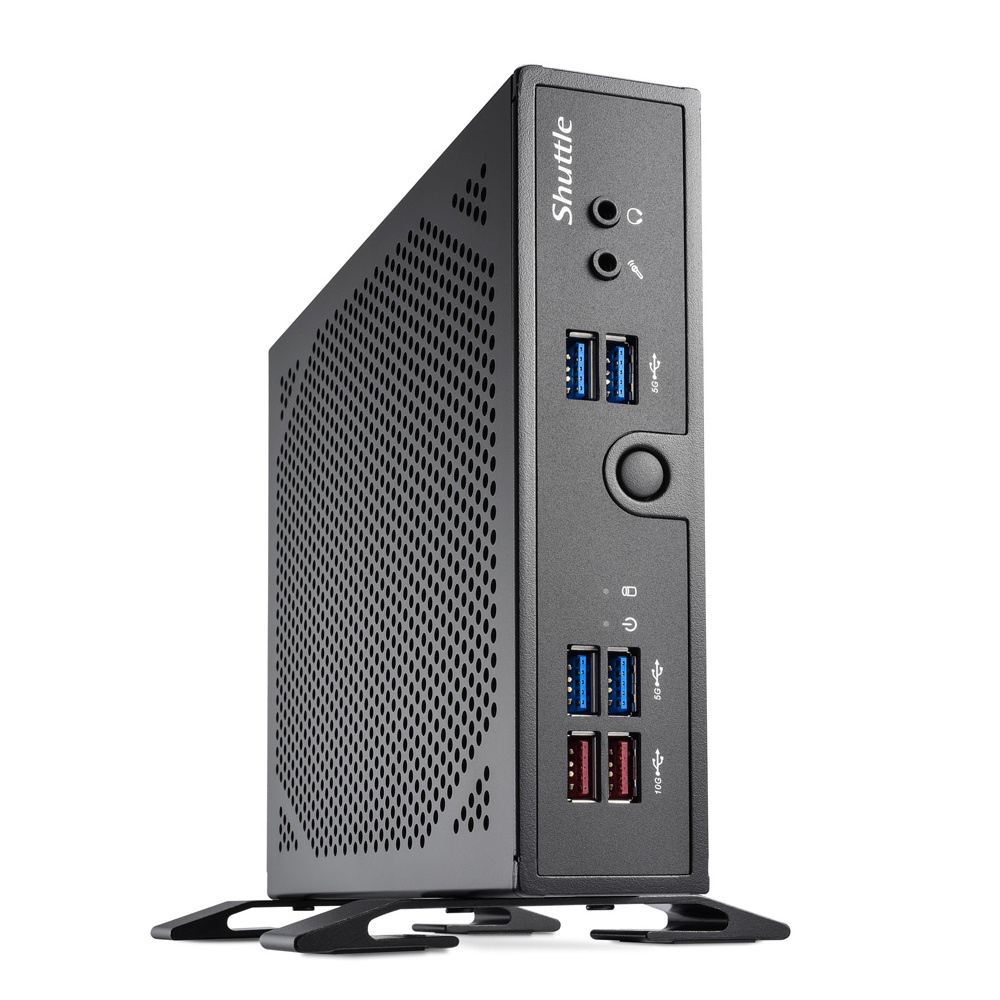

Shuttle XPC slim DS50U3 Slim-PC i3-1315U 0GB No-OS
€425,56
Shuttle XPC slim DS50U3 - Barebone - Slim-PC 1 x Core i3 i3-1315U / op til 4.5 GHz - RAM 0 GB - UHD Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet - sort
Availability: In stock
Secure payment · Fast delivery
EAN:0887993006192Categories:, , Brand:
Shuttle XPC slim DS50U3 - Barebone - Slim-PC 1 x Core i3 i3-1315U / op til 4.5 GHz - RAM 0 GB - UHD Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet - sort
Specifications
Specifications
| Processor | Intel Core i3-1315U (15W, Up to 4.5 Ghz) |
| Graphics | Intel UHD Graphics |
| Memory | 2x SO-DIMM slots, Supports 64GB (32GB per dimm) DDR5-5200 (PC5-41600) SDRAM at 1.1 V |
| 2.5" Drive Bay | 1x Serial ATA hard disk or 1x SATA SSD drive in 6.35 cm (Serial-ATA III, 6 Gb/s) |
| M.2 Storage support | 2x M.2-2280 Key-M slots (1x PCIe Gen4 x4 NVMe, 1x SATA) |
| 4G/5G | Optional WWN04 kit |
| WLAN | M.2-2230 Type E (PCI-Express Gen. 3.0 X1 and USB 2.0) |
| Audio | Realtek® ALC888S High-Definition Audio |
| LAN | Dual LAN (2.5G Intel i226 + 1G Intel i219) |
| Front Panel connectors | 4x USB 3.2 Gen 1 (max. 5 Gbps, blue), 2x USB 3.2 Gen 2 (max. 10 Gbps, red), Microphone input, Audio Line-out (headphones) |
| Back Panel connectors | DisplayPort 1.4, HDMI 2.0b, D-Sub/VGA, 2x USB 2.0 (black), 2x Intel RJ45 LAN (left: 1 Gbps and right: 2.5 Gbps), Serial COM port (5V / 12V, switchable to RS232 / RS422 / RS485), DC-input, 4-pin connector (2.54 mm pitch) for power button, Clear CMOS and 5 V DC, 2x connector for external WLAN antennas |
| VESA | Included VESA mount for 75/100mm standard (two metal brackets) |
| Certifications | CE, FCC, BSMI, RCM, VCCI, RoHS, Energy Star, ErP, CB, BSMI, cTUVus |
| Cooling | Passive |
| Dimensions (L x W x H) | 200 x 165 x 39.5 mm |
| Weight | 1.6 kg net and 2.3 kg gross |
| Operating System | No OS |
| Compatible Operating Systems | Windows 10/11 (64-bit) and Linux (64-bit) |
| BIOS | AMI UEFI 32 MByte EEPROM with SPI interface |
| Security | Supports Firmware-TPM (fTPM) Version 2.0 |
| Power Adapter | 90 W DC power adapter (fanless) |
