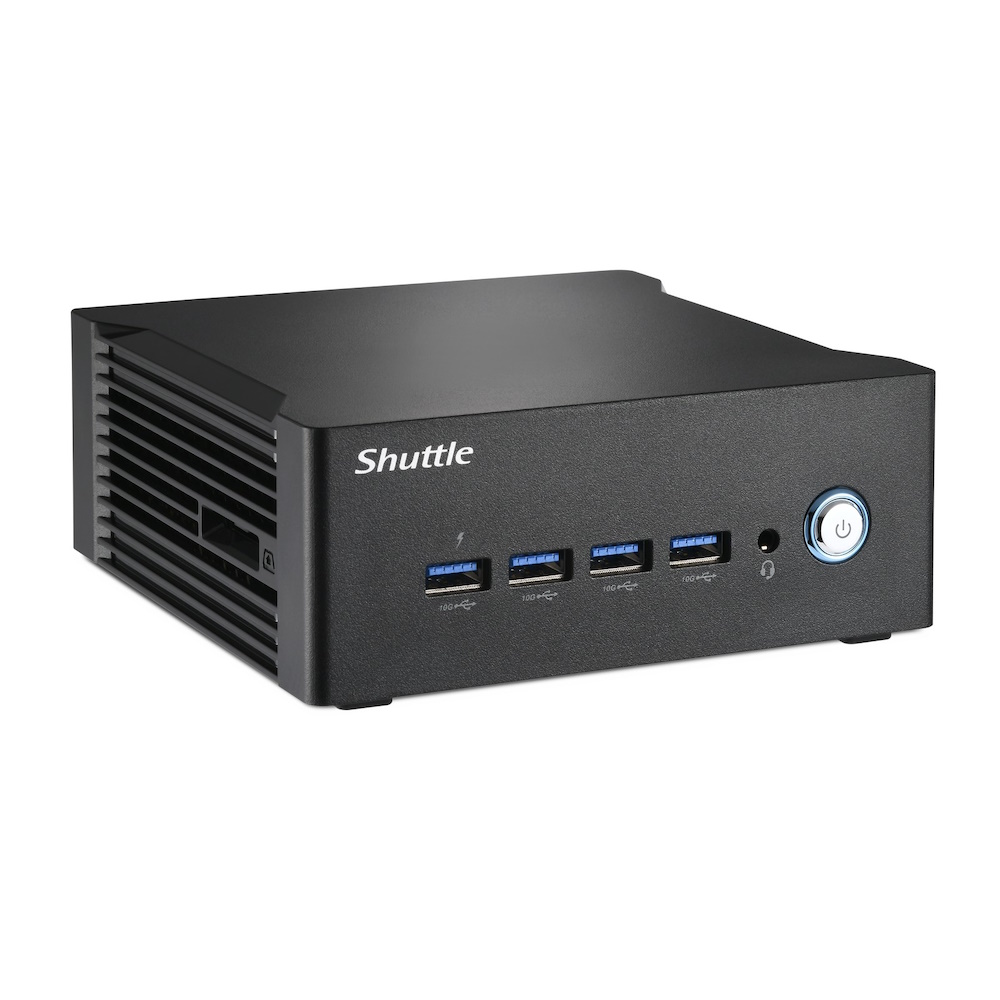

Shuttle XPC Nano NA10H7 R7-8845HS 0GB No-OS
€419,88
Shuttle XPC nano NA10H7 - Barebone - mini PC 1 x Ryzen 7 8845HS / op til 5.1 GHz - RAM 0 GB - Radeon 780M - Gigabit Ethernet
Availability: In stock
Secure payment · Fast delivery
EAN:887993007403Categories:, , Brand:
Shuttle XPC nano NA10H7 - Barebone - mini PC 1 x Ryzen 7 8845HS / op til 5.1 GHz - RAM 0 GB - Radeon 780M - Gigabit Ethernet
Specifications
Specifications
| Processor | AMD Ryzen 7-8845HS (cores: 8, Threads: 16, 3,8 - 5,1 GHz, 16 MB) |
| Cooling System | 80 mm Processor fan, 60 mm Chassis fan |
| Integrated Graphics | AMD Radeon 780M (cores: 12, 2700 MHz) |
| Display output | 2x HDMI 2.0b, 2x USB4 Type-C with DisplayPort 1.4 function (Up to 4K/60Hz) |
| UEFI | AMI UEFI Firmware (BIOS) |
| TPM | DTPM 2.0 with Infineon SLB9670VQ2.0 |
| Memory support | 2x SO-DIMM (Supports Non ECC DDR5-5600, 32 GB per DIMM, Dual Channel mode) |
| SSD Support | M.2-2280M slot B+M key (Supports PCIe Gen4 x4) |
| Audio | Realtek ALC269-VC3 |
| LAN | 2x Realtek RTL8125B 2.5G Ethernet |
| WLAN | M.2-2230E for WLAN expansion cards (Supports PCI-Express X1 and USB 2.0) |
| SD Card | SD cards in the size of 24 mm x 32 mm |
| Front Panel connectors | 1x Power button with Power LED (blue), 4x USB 3.2 Gen 2 Type-A (max. 10 Gbps), 1x Audio Combo port (3.5 mm jack plug, 4-pole) [2] |
| Back Panel connectors | 2x HDMI 2.0, 2x USB4 Type-C (max. 40 Gbps) with DP-Alt mode (DP 1.4) and PD (max. 5V / 3A), 1x USB 3.2 Gen 2 Type A (max. 10 GBit/s), 1x USB 2.0, 2x 2.5G Ethernet LAN (RJ45, Realtek RTL8125B), 1x DC-input (5,5 / 2,5 mm) |
| Power Adapter | 19.0 V External 120 W power adapter (fanless) |
| Power Adapter dimensions | 64.5 mm x 22.5 mm x 98 mm (WHD) |
| Supplied Accessories | Multi-language Quick Installation Guide, VESA mount with screws (supports 75x75 and 100x100 mm standards), Heat sink with two thermal pads for the M.2 SSD card, Power adapter 120 W with AC power cord, A DVD driver disk is not supplied |
| Operation System | No operating system included (compatible with Windows 11, 64-bit / Linux, 64-bit) |
| Dimensions | 132 x 143 x 55 mm (WLH) |
| Weight | 1.7 kg |
| VESA mount | 75x75 and 100x100 mm standard |
