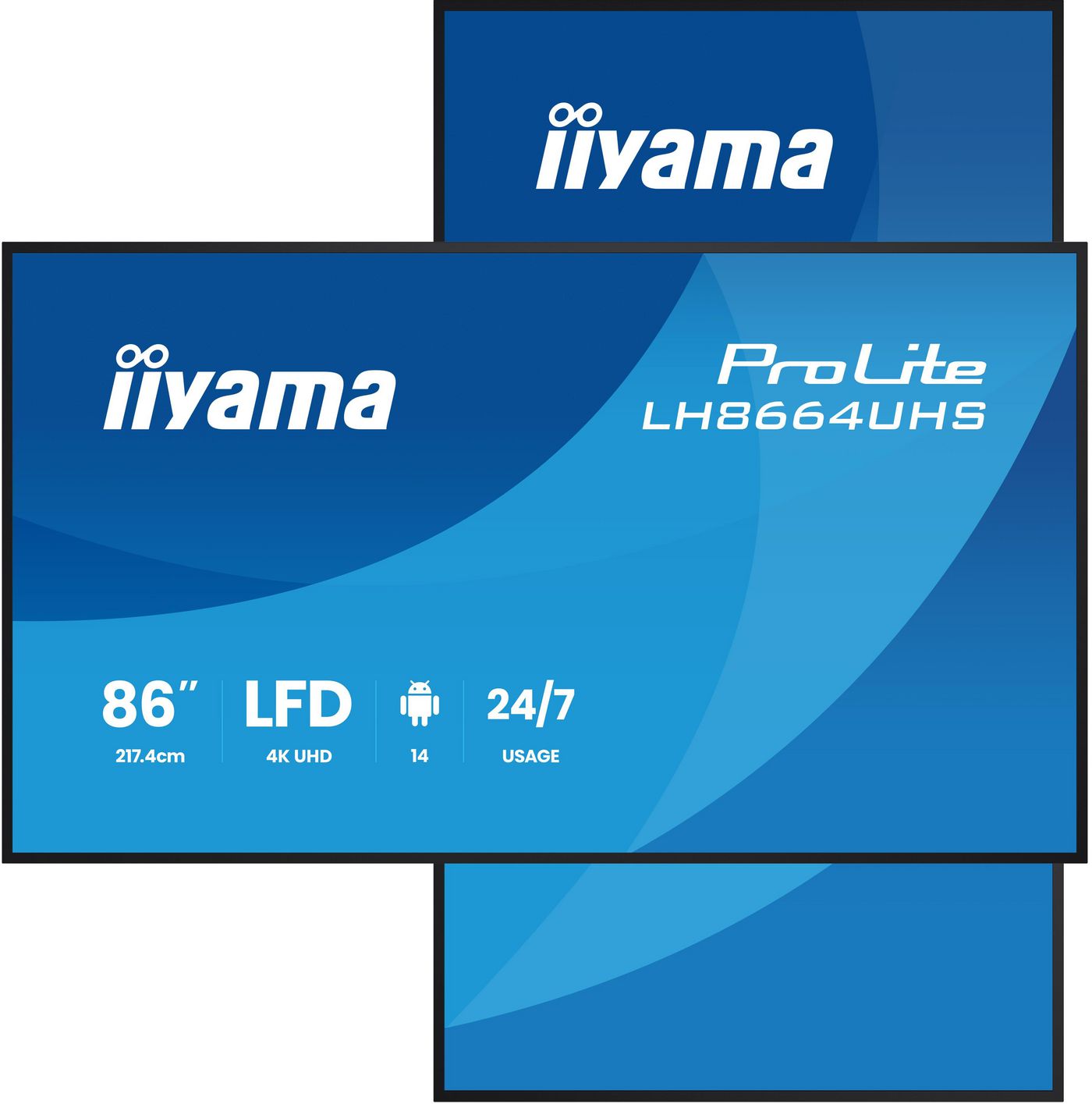

iiyama LH8664UHS-B3AG Signage Display Digital signage flat panel 2.17 m (85.6") Wi-Fi 450 cd/m² 4K Ultra HD Black Built-in processor Android 24/7
€1448,92
iiyama LH8664UHS-B3AG, Digital signage flat panel, 2.17 m (85.6"), 3840 x 2160 pixels, Wi-Fi, 24/7
Availability: In stock
Secure payment · Fast delivery
EAN:4948570125357Categories:, , Brand:
iiyama LH8664UHS-B3AG. Product design: Digital signage flat panel. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Specifications
Specifications
| Panel type | IPS |
| Display diagonal | 2.17 m (85.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 450 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.493 x 0.493 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 2 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-C |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232C | Yes |
| Infrared data port | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Audio Return Channel (ARC) | Yes |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 2.2 cm |
| Bezel width (side) | 2.15 cm |
| Bezel width (top) | 2.2 cm |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Purpose | Corporate |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 277 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 227 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Built-in processor | Yes |
| Processor manufacturer | MediaTek |
| Processor model | MT9679 |
| Processor architecture | ARM Cortex-A73 |
| Processor cores | 4 |
| Internal memory | 4 GB |
| On-board graphics card model | Mali-G52 MC1 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Display width | 1937.8 mm |
| Display depth | 79.6 mm |
| Display height | 1108.8 mm |
| Display weight | 47.9 kg |
| Width | 1937.8 mm |
| Depth | 79.6 mm |
| Height | 1108.8 mm |
| Weight | 47.9 kg |
| Package width | 2095 mm |
| Package depth | 225 mm |
| Package height | 1215 mm |
| Package weight | 62.2 kg |
| Remote control included | Yes |
| Cables included | AC, HDMI, RS-232 |
| Mounting kit | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Playback media | Y |
| User controls | network (network status, WiFi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, over scan, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD settings (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD), General (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, physical button, power saving, panel saving, monitor information, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen Share, Miracast standby, log export) |
| Sustainability certificates | EPEAT, ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Quick start guide | Yes |
| Power supply type | Internal |
