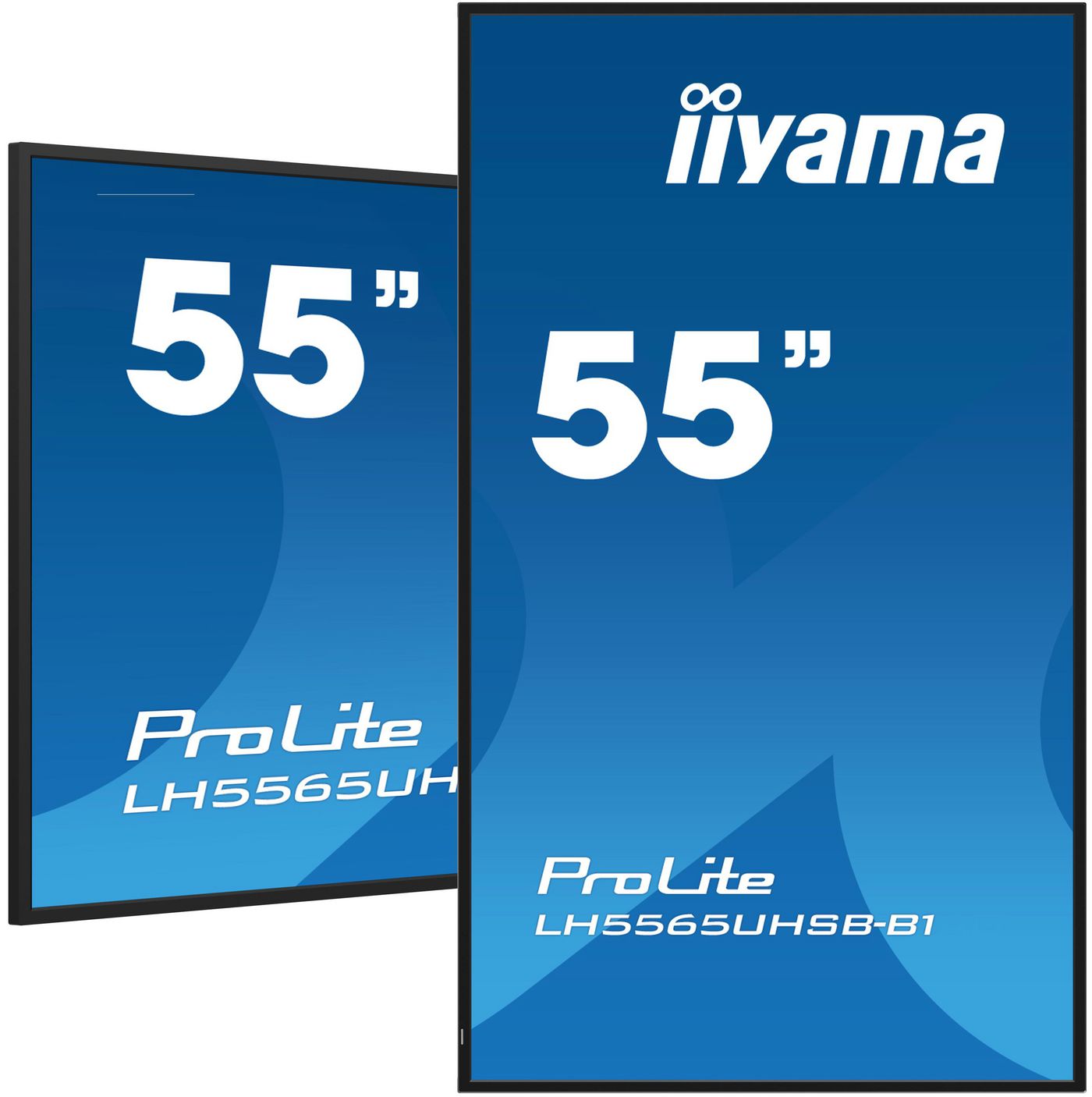

iiyama LH5565UHSB-B1 Signage Display Kiosk design 138.7 cm (54.6") LED Wi-Fi 800 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
€746,63
iiyama LH5565UHSB-B1, Kiosk design, 138.7 cm (54.6"), LED, 3840 x 2160 pixels, Wi-Fi, 24/7
Availability: In stock
Secure payment · Fast delivery
EAN:4948570123575Categories:, , Brand:
iiyama LH5565UHSB-B1. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Specifications
Specifications
| Panel type | IPS |
| Display diagonal | 138.7 cm (54.6") |
| Display technology | LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 800 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Display diagonal (metric) | 139 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 1% |
| RGB colour space | NTSC |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) in | 1 |
| RS-232 interface | Yes |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Product design | Kiosk design |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Bezel width (bottom) | 1.49 cm |
| Bezel width (side) | 1.49 cm |
| Bezel width (top) | 1.49 cm |
| Bezel colour | Black |
| Purpose | Commercial |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 78 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 78 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A73 |
| Processor cores | 8 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Display width | 1237.5 mm |
| Display depth | 55 mm |
| Display height | 710 mm |
| Display weight | 14.6 kg |
| Width | 1237.5 mm |
| Depth | 55 mm |
| Height | 710 mm |
| Weight | 14.6 kg |
| Package width | 1386 mm |
| Package depth | 130 mm |
| Package height | 845 mm |
| Package weight | 19.8 kg |
| Remote control included | Yes |
| Cables included | AC, HDMI, RS-232 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | -20 - 60% |
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Playback media | Y |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset) |
| Sustainability certificates | ErP |
| Compliance certificates | CE, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Quick start guide | Yes |
| Power supply type | Internal |
