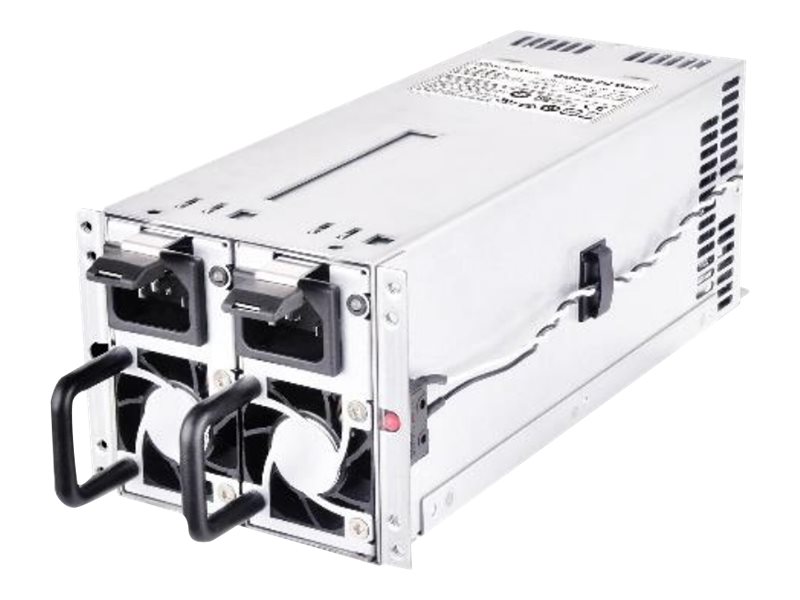

SilverStone GEMINI Series SST-GM600-2UG-V2 600Watt 80 PLUS Gold
€644,03
SilverStone GEMINI Series SST-GM600-2UG-V2 - Strømforsyning - hurtigstik/redundant (indstiksmodul) - PS/2 - 80 PLUS Gold - AC 90-264 V - 600 Watt - aktiv PFC - 2U - sølv
Availability: In stock
Secure payment · Fast delivery
EAN:4710679813783Categories:, , Brand:
SilverStone GEMINI Series SST-GM600-2UG-V2 - Strømforsyning - hurtigstik/redundant (indstiksmodul) - PS/2 - 80 PLUS Gold - AC 90-264 V - 600 Watt - aktiv PFC - 2U - sølv
Specifications
Specifications
| Produktbeskrivelse | SilverStone GEMINI Series SST-GM600-2UG-V2 - strømforsyning - hurtigstik/redundant - 600 Watt |
| Enhedstype | Strømforsyning - hurtigstik/redundant - aktiv Power Factor Correction (PFC) - indstiksmodul |
| Rackstørrelse | 2U |
| Specifikationsoverensstemmelse | PS/2 |
| 80 PLUS certificering | 80 PLUS Gold |
| Indgangspænding | AC 90-264 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 600 Watt |
| Output Current | +3.3V - 25 A / 1 A | +5V - 25 A / 1 A | +12V1 - 49 A / 1 A | +5VSB - 3.5 A / 0.1 A | -12V - 0.8 A / 0 A |
| Output-stikforbindelser | 1 x power 24 pin ATX<br>1 x power 8 pin EPS12 V<br>1 x power ATX12V 4-pin connector<br>2 x 6 pin PCI Express power<br>8 x 4-PIN internal power<br>4 x 15 pin Serial ATA power<br>2 x 4-PIN mini power supply connector |
| Kølesystem | 2 x 40 mm ventilatorer |
| Farve | Sølv |
| Dimensioner (B x D x H) | 8.4 cm x 21.7 cm x 8.2 cm |
| Color | Silver |
| Device Type | Power supply - hot-plug / redundant - active Power Factor Correction (PFC) - plug-in module |
| Height (Rack Units) | 2U |
| Specification Compliance | PS/2 |
| 80 PLUS Certification | 80 PLUS Gold |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 90-264 V |
| Installed Power Modules | 2 |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 600 Watt |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 1 x power 24 pin ATX | 1 x power 8 pin EPS12V | 1 x power 4 pin ATX12V connector | 2 x 6 pin PCI Express power | 8 x 4 pin internal power | 4 x 15 pin Serial ATA power | 2 x 4 pin mini-power connector |
| Supported Power Modules | 2 |
| Cooling System | 2 x 40 mm fans |
| Features | Overcurrent protection, overvoltage protection, overpower protection, short-circuit protection, PMBus compliant |
| MTBF | 100,000 hours |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 62.5 dBA |
| Depth | 21.7 cm |
| Height | 8.2 cm |
| Width | 8.4 cm |
