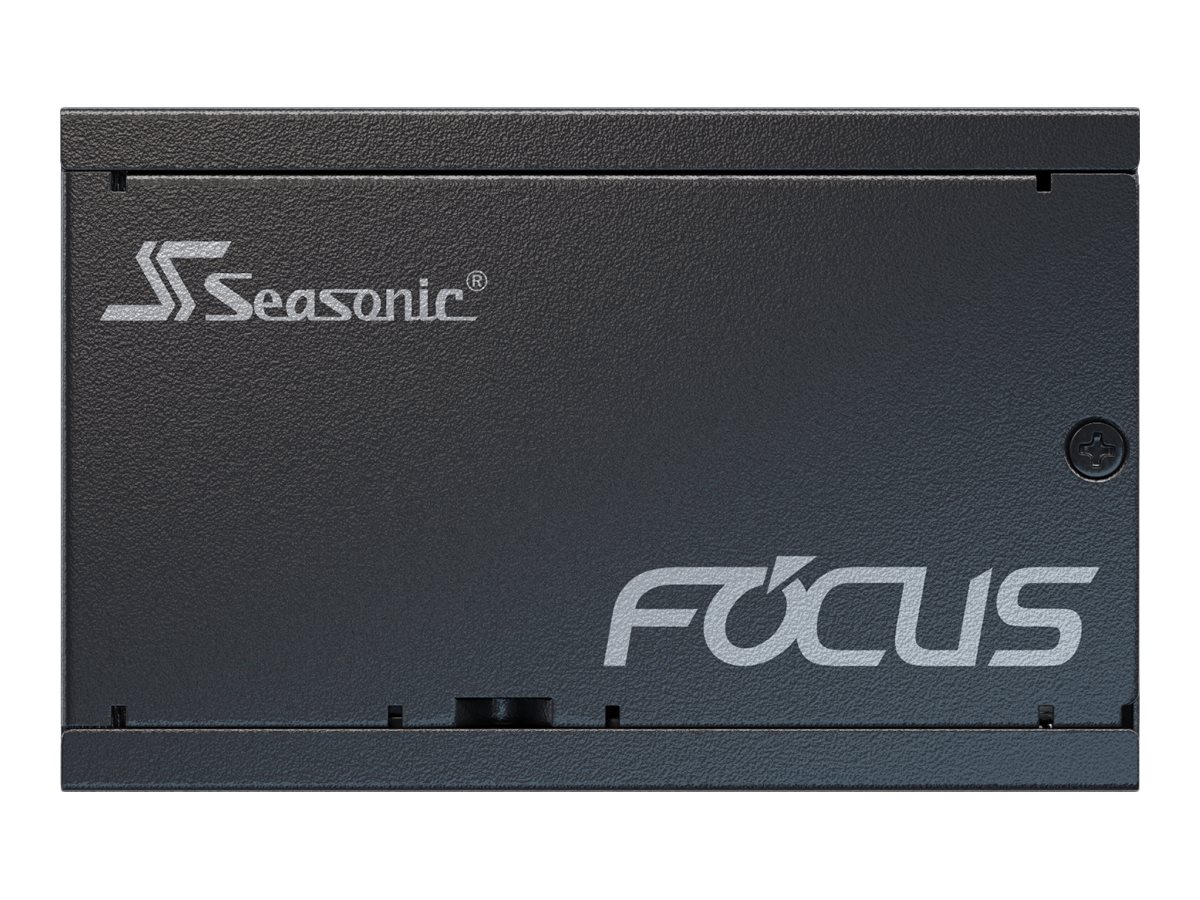

Seasonic FOCUS SGX (2021) SSR-750SGX 750Watt 80 PLUS Gold
€119,30
Seasonic FOCUS SGX (2021) SSR-750SGX - Strømforsyning (intern) - ATX12V / SFX12V - 80 PLUS Gold - AC 100-240 V - 750 Watt
Availability: In stock
Secure payment · Fast delivery
EAN:4711173877110Categories:, , Brand:
Seasonic FOCUS SGX (2021) SSR-750SGX - Strømforsyning (intern) - ATX12V / SFX12V - 80 PLUS Gold - AC 100-240 V - 750 Watt
Specifications
Specifications
| Produktbeskrivelse | Seasonic FOCUS SGX (2021) SSR-750SGX - strømforsyning - 750 Watt |
| Enhedstype | Strømforsyning - intern |
| Specifikationsoverensstemmelse | ATX12V / SFX12V |
| 80 PLUS certificering | 80 PLUS Gold |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | DC +3.3, DC +5, DC ±12 V |
| Strømkapacitet | 750 Watt |
| Output Current | +3.3V - 20 A | +5V - 20 A | +12V - 62 A | -12V - 0.3 A | +5VSB - 3 A |
| Output-stikforbindelser | 1 x power 24 pin ATX with removable 4 pin section<br>1 x power 8 pin +12 V with removable 4 pin section<br>4 x 8 pin PCI Express power with removable 2 pin section<br>6 x 15 pin Serial ATA power<br>3 x 4-PIN internal power |
| Modulær Kabel Administration | Ja |
| Kølesystem | 92 mm blæser |
| Udstyr inkluderet | SFX to ATX bracket |
| Dimensioner (B x D x H) | 12.5 cm x 10 cm x 6.35 cm |
| Miljømæssige standarder | ENERGY STAR |
| Producentgaranti | 10-year guarantee |
| Device Type | Power supply - internal |
| PSU Form Factor | SFX |
| Specification Compliance | ATX12V / SFX12V |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 90% at 50% Load |
| Frequency Required | 50 - 60 Hz |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Voltage | DC +3.3, DC +5, DC ±12 V |
| Power Capacity | 750 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 4 x 8 pin PCI Express power with detachable 2 pin section | 6 x 15 pin Serial ATA power | 3 x 4 pin internal power |
| Compliant Standards | TUV, BSMI, CB, CCC, RoHS, WEEE, cTUVus, Energy-Related Products (ErP) Lot 6, REACH, EAC |
| Cooling System | 92 mm fan |
| Features | On/off switch, overheat protection, gold-plated terminals, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, fluid dynamic bearing cooling fan, Premium Hybrid Fan Control, fully m |
| Included Accessories | SFX to ATX bracket |
| MTBF | 100,000 hours |
| ENERGY STAR | Yes |
| Service & Support | Limited warranty - 10 years |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Depth | 10 cm |
| Height | 6.35 cm |
| Width | 12.5 cm |
