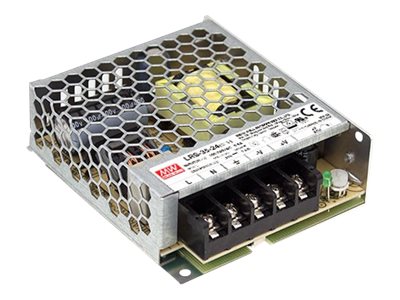

Mean Well LRS-35 series LRS-35-12 36Watt
€14,71
Mean Well LRS-35 series LRS-35-12 - Strømforsyning (intern) - AC 115/230 V - 36 Watt
Availability: In stock
Secure payment · Fast delivery
EAN:4711287434506Categories:, , Brand:
Mean Well LRS-35 series LRS-35-12 - Strømforsyning (intern) - AC 115/230 V - 36 Watt
Specifications
Specifications
| Produktbeskrivelse | Mean Well LRS-35 series LRS-35-12 - strømforsyning - 36 Watt |
| Enhedstype | Strømforsyning - intern |
| Indgangspænding | AC 115/230 V |
| Udgangspænding | 12 V ± 1% |
| Strømkapacitet | 36 Watt |
| Dimensioner (B x D x H) | 9.9 cm x 8.2 cm x 3 cm |
| Producentgaranti | 3 year warranty |
| Device Type | Power supply - internal |
| Efficiency | 86% |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 115/230 V |
| Input Voltage Range | AC 85 - 264 / 120 - 373 V |
| Output Voltage | 12 V ± 1% |
| Power Capacity | 36 Watt |
| Compliant Standards | TUV, CISPR 22 Class B, EN55022 Class B, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 50082-2, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, EN 60950-1, EN61000-3-2, EN61000-3-3, cURus |
| Features | Overvoltage protection, overload protection, cold-start function, short-circuit protection |
| MTBF | 763,600 hours |
| Service & Support | Limited warranty - 3 years |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Depth | 8.2 cm |
| Height | 3 cm |
| Width | 9.9 cm |
| Shipping Weight | 230 g |
