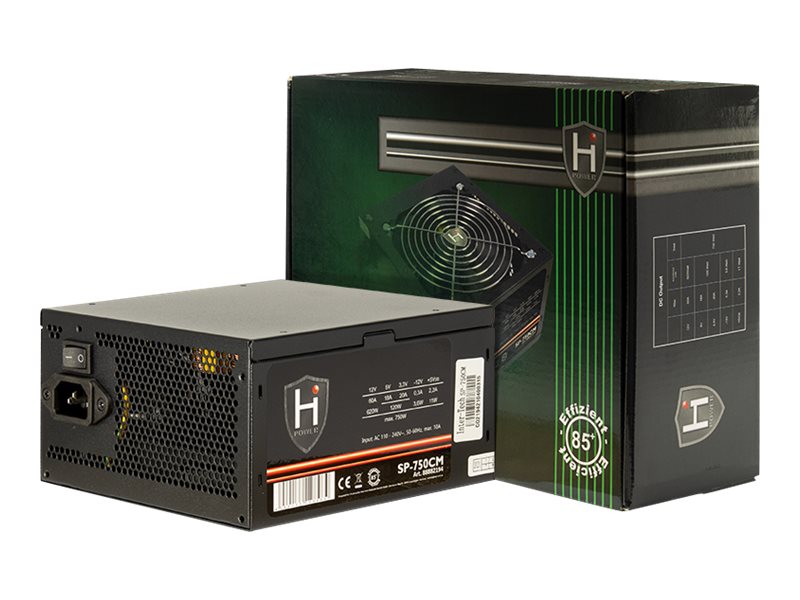

HiPower SP-750CM 750Watt
€38,74
HiPower SP-750CM - Strømforsyning (intern) - ATX12V 2.3 - AC 100/240 V - 750 Watt - aktiv PFC
Availability: In stock
Secure payment · Fast delivery
EAN:4260133128484Categories:, , Brand:
HiPower SP-750CM - Strømforsyning (intern) - ATX12V 2.3 - AC 100/240 V - 750 Watt - aktiv PFC
Specifications
Specifications
| Produktbeskrivelse | HiPower SP-750CM - strømforsyning - 750 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.3 |
| Vægt | 1.43 kg |
| Indgangspænding | AC 100/240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 750 Watt |
| Output Current | +3.3V - 20 A | +5V - 18 A | +12V - 60 A | -12V - 0.3 A | +5VSB - 2.2 A |
| Output-stikforbindelser | 1 x power 24 pin ATX with removable 4 pin section<br>1 x power 8 pin +12 V with removable 4 pin section<br>2 x 8 pin PCI Express power with removable 2 pin section<br>8 x 15 pin Serial ATA power<br>3 x 4-PIN internal power<br>1 x 4-PIN mini power supply connector |
| Kølesystem | 140 mm ventilator |
| Udstyr inkluderet | Kabelbånd |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.6 cm |
| Producentgaranti | 2 year warranty |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.3 |
| Efficiency | 86.6% at 50% Load, 84.8% at 20% Load, 83.3% at full Load |
| Frequency Required | 50 - 60 Hz |
| Input Voltage | AC 100/240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 2 x 8 pin PCI Express power with detachable 2 pin section | 8 x 15 pin Serial ATA power | 3 x 4 pin internal power | 1 x 4 pin mini-power connec |
| Cables Included | Power cable | 2 x SATA to Molex adapter |
| Cooling System | 140 mm fan |
| Features | Overvoltage protection, overpower protection, short-circuit protection |
| Included Accessories | Cable ties |
| Service & Support | Limited warranty - 2 years |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.43 kg |
| Width | 15 cm |
| Shipping Weight | 2.18 kg |
