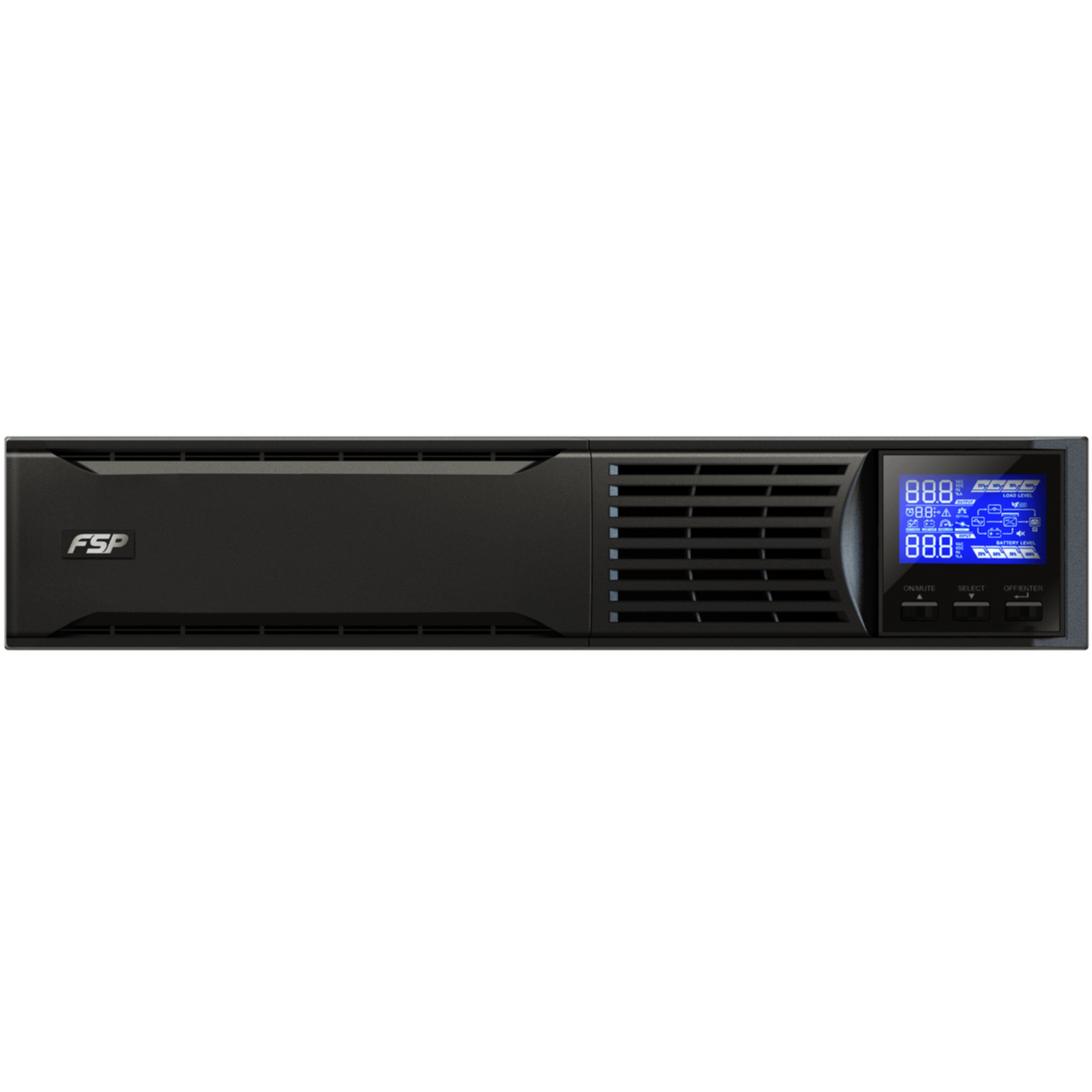

Fortron FSP Champ Rack 2k 1800W - Online-USV
FSP Champ Rack Series is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller. It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
Availability: In stock
FSP Champ Rack Series is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller. It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
Specifications
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2 kVA |
| Output power | 1800 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 47/63 Hz |
| Output frequency regulation | 0 Hz |
| Output voltage regulation | 1% |
| Response time | 0 ms |
| Power factor | 0.99 |
| Crest factor | 3:1 |
| Total Harmonic Distortion (THD) (linear load) | 3% |
| Total Harmonic Distortion (THD) (non-linear load) | 6% |
| Noise level | 50 dB |
| Audible alarm(s) | yes |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| AC outlet types | Type F |
| AC outlets quantity | 3 AC outlet(s) |
| USB port | yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of battery cells | 4 |
| Battery recharge time (90%) | 4 h |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cooling type | Active |
| Built-in fan | yes |
| Product colour | Black |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Compliance certificates | CE |
| Batteries included | yes |
| Cables included | Input power cable, USB cable |
| Manual | yes |
| Sustainability compliance | yes |
| Width | 438 mm |
| Depth | 410 mm |
| Height | 88 mm |
| Weight | 19 kg |
| Software CD | yes |
| Harmonized System (HS) code | 85078000 |
| Number of phases | 1 |
| Packaging content | UPS, Power cable, USB cable, Software on CD, User manual |
