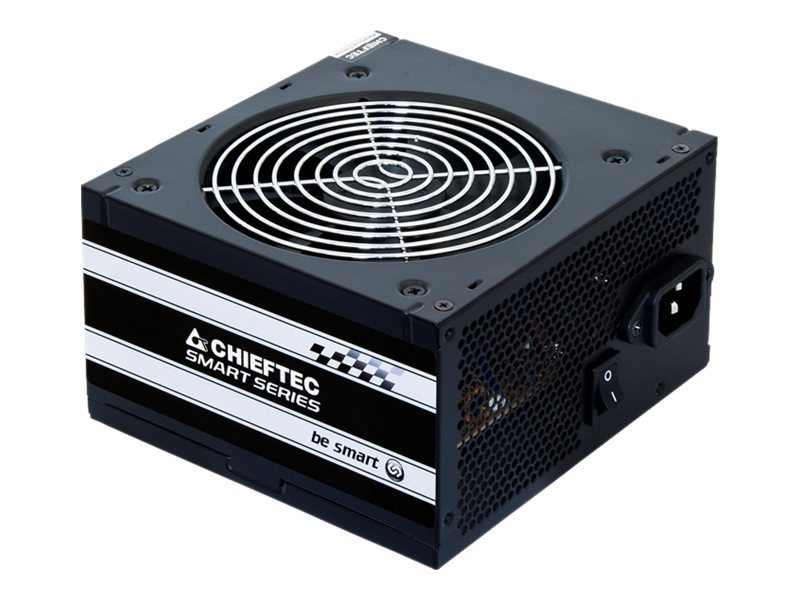

Chieftec Smart Series GPS-400A8 400Watt 80 PLUS
€31,76
Chieftec Smart Series GPS-400A8 - Strømforsyning (intern) - ATX12V 2.3 - 80 PLUS - AC 230 V - 400 Watt - aktiv PFC - sort
Availability: In stock
Secure payment · Fast delivery
EAN:4710713239517Categories:, , Brand:
Chieftec Smart Series GPS-400A8 - Strømforsyning (intern) - ATX12V 2.3 - 80 PLUS - AC 230 V - 400 Watt - aktiv PFC - sort
Specifications
Specifications
| Produktbeskrivelse | Chieftec Smart Series GPS-400A8 - strømforsyning - 400 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.3 |
| 80 PLUS certificering | 80 PLUS |
| Indgangspænding | AC 230 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 400 Watt |
| Output Current | +3.3V - 22 A | +5V - 18 A | +12V1 - 18 A | +12V2 - 17 A | -12V - 0.3 A | +5VSB - 2.5 A |
| Output-stikforbindelser | 1 x power 24 pin ATX with removable 4 pin section<br>1 x power ATX12V 4-pin connector<br>3 x 15 pin Serial ATA power<br>2 x 4-PIN internal power<br>1 x 4-PIN mini power supply connector<br>1 x 8 pin PCI Express power with removable 2 pin section |
| Kølesystem | 120 mm ventilator |
| Farve | Sort |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.7 cm |
| Producentgaranti | 2 year warranty |
| Color | Black |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.3 |
| 80 PLUS Certification | 80 PLUS |
| Efficiency | 80% |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 230 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 400 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 4 pin ATX12V connector | 3 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connector | 1 x 8 pin PCI Express power with detachable 2 pin section |
| Compliant Standards | CB, FCC, RoHS, EuP Ready |
| Cooling System | 120 mm fan |
| Features | Sleeved cables, overheat protection, overcurrent protection, overvoltage protection, overload protection, undervoltage protection, short-circuit protection |
| MTBF | 100,000 hours |
| Service & Support | Limited warranty - 2 years |
| Depth | 14 cm |
| Height | 8.7 cm |
| Width | 15 cm |
