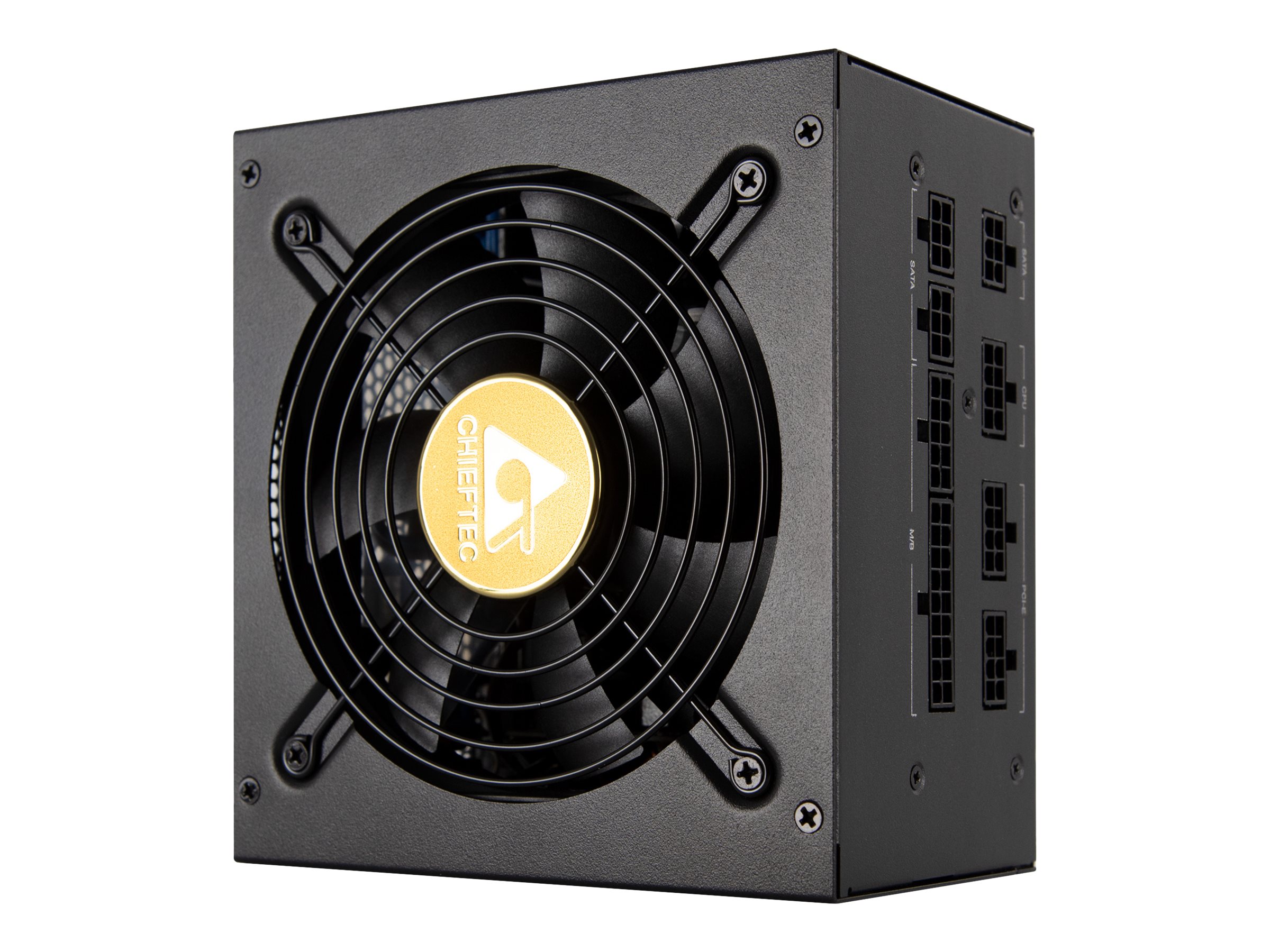

Chieftec Polaris Series 750W Strømforsyning 750Watt
€88,31
Chieftec Polaris Series 750W - Strømforsyning (intern) - ATX12V 2.4/ EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - aktiv PFC
Availability: In stock
Secure payment · Fast delivery
EAN:0753263076441Categories:, , Brand:
Chieftec Polaris Series 750W - Strømforsyning (intern) - ATX12V 2.4/ EPS12V - 80 PLUS Gold - AC 100-240 V - 750 Watt - aktiv PFC
Specifications
Specifications
| Produktbeskrivelse | Chieftec Polaris Series 750W - strømforsyning - 750 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.4/ EPS12V |
| 80 PLUS certificering | 80 PLUS Gold |
| Vægt | 2.285 kg |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 750 Watt |
| Output Current | +5V - 22 A | +3.3V - 22 A | +12V1 - 62.5 A | +5VSB - 3 A | -12V - 0.3 A |
| Output-stikforbindelser | 1 x power 24 pin ATX with removable 4 pin section<br>2 x power 8 pin EPS12 V with removable 4 pin ATX12V section<br>4 x 8 pin PCI Express power with removable 2 pin section<br>3 x 4-PIN internal power<br>8 x 15 pin Serial ATA power<br>1 x 4-PIN mini power supply connector |
| Modulær Kabel Administration | Ja |
| Kølesystem | 120 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.7 cm |
| Producentgaranti | 2 year warranty |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.4/ EPS12V |
| 80 PLUS Certification | 80 PLUS Gold |
| Frequency Required | 50 - 60 Hz |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 4 x 8 pin PCI Express power with detachable 2 pin section | 3 x 4 pin internal power | 8 x 15 pin Serial ATA power | 1 x 4 pin mini-pow |
| Compliant Standards | CB, RoHS, ErP Ready, EAC, TUV Rheinland |
| Cooling System | 120 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, overload protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, Automatic Fanspeed Control (AFC), Surge &amp; Inrush Protection (SIP) |
| Service & Support | Limited warranty - 2 years |
| Depth | 14 cm |
| Height | 8.7 cm |
| Weight | 2.285 kg |
| Width | 15 cm |
| Shipping Weight | 2.59 kg |
