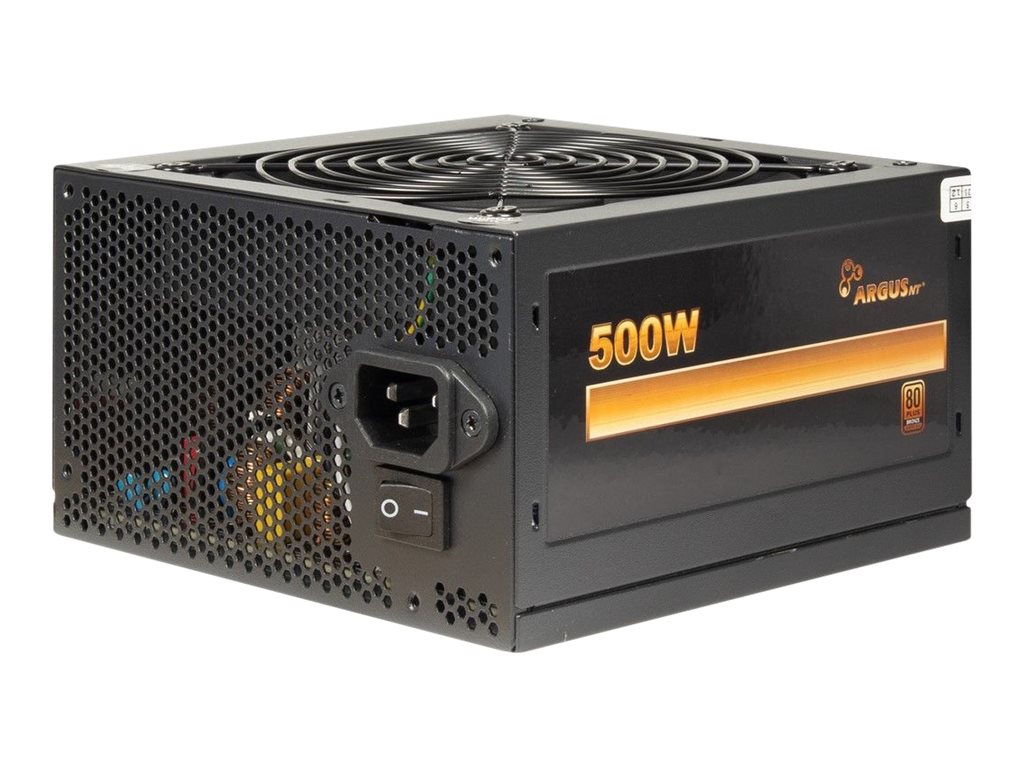

Argus BPS-500 500Watt 80 PLUS Bronze
€41,62
Argus BPS-500 - Strømforsyning (intern) - ATX12V 2.4 - 80 PLUS Bronze - AC 100/240 V - 500 Watt - aktiv PFC
Availability: In stock
Secure payment · Fast delivery
EAN:4260455645249Categories:, , Brand:
Argus BPS-500 - Strømforsyning (intern) - ATX12V 2.4 - 80 PLUS Bronze - AC 100/240 V - 500 Watt - aktiv PFC
Specifications
Specifications
| Produktbeskrivelse | Argus BPS-500 - strømforsyning - 500 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.4 |
| 80 PLUS certificering | 80 PLUS Bronze |
| Vægt | 1.67 kg |
| Indgangspænding | AC 100/240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 500 Watt |
| Output Current | +12V - 41 A | +3.3V - 15 A | +5V - 15 A | -12V - 0.3 A | +5VSB - 2.5 A |
| Output-stikforbindelser | 1 x power 24 pin ATX with removable 4 pin section<br>1 x power 8 pin +12 V with removable 4 pin section<br>2 x 8 pin PCI Express power with removable 2 pin section<br>6 x 15 pin Serial ATA power<br>3 x 4-PIN internal power<br>1 x 4-PIN mini power supply connector |
| Kølesystem | 120 mm ventilator |
| Udstyr inkluderet | Skruer, kabelbånd |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.6 cm |
| Producentgaranti | 3 year warranty |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.4 |
| 80 PLUS Certification | 80 PLUS Bronze |
| Efficiency | 88.4% at 50% Load, 80.5% at 20% Load, 85.3% at 20% Load, 85.3% at 100% Load |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 100/240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 2 x 8 pin PCI Express power with detachable 2 pin section | 6 x 15 pin Serial ATA power | 3 x 4 pin internal power | 1 x 4 pin mini-power connec |
| Compliant Standards | FCC, RoHS, WEEE |
| Cooling System | 120 mm fan |
| Features | Overcurrent protection, overvoltage protection, short-circuit protection, thermal protection |
| Included Accessories | Screws, cable ties |
| Service & Support | Limited warranty - 3 years |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.67 kg |
| Width | 15 cm |
| Shipping Weight | 2.02 kg |
