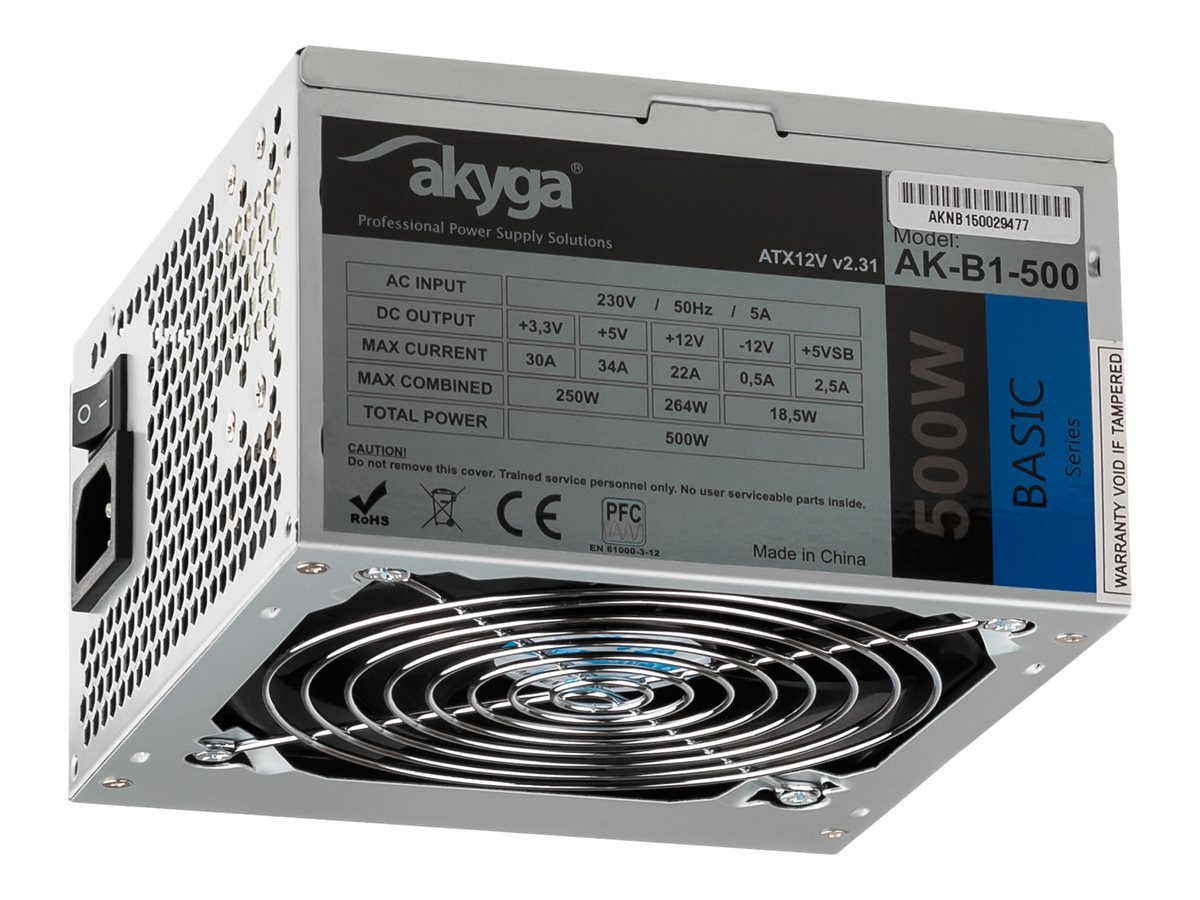

Akyga Basic Series AK-B1-500 500Watt
€24,31
Akyga Basic Series AK-B1-500 - Strømforsyning (intern) - ATX12V 2.31 - AC 230 V - 500 Watt - PFC - grå
Availability: In stock
Secure payment · Fast delivery
EAN:5901720130334Categories:, , Brand:
Akyga Basic Series AK-B1-500 - Strømforsyning (intern) - ATX12V 2.31 - AC 230 V - 500 Watt - PFC - grå
Specifications
Specifications
| Produktbeskrivelse | Akyga Basic Series AK-B1-500 - strømforsyning - 500 Watt |
| Enhedstype | Strømforsyning - Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.31 |
| Vægt | 1.03 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 500 Watt |
| Output Current | +3.3V - 30 A | +5V - 34 A | +12V - 22 A | -12V - 0.5 A | +5VSB - 2.5 A |
| Output-stikforbindelser | 1 x power 24 pin ATX with removable 4 pin section<br>1 x power ATX12V 4-pin connector<br>3 x 15 pin Serial ATA power<br>2 x 4-PIN internal power<br>1 x 4-PIN mini power supply connector<br>1 x 8 pin PCI Express power with removable 2 pin section |
| Kølesystem | 120 mm ventilator |
| Farve | Grå |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.5 cm |
| Color | Gray |
| Device Type | Power supply - Power Factor Correction (PFC) - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V 2.31 |
| Efficiency | 70% |
| Frequency Required | 50 Hz |
| Input Voltage | AC 230 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 4 pin ATX12V connector | 3 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connector | 1 x 8 pin PCI Express power with detachable 2 pin section |
| Compliant Standards | RoHS, REACH, EN 61000-3 |
| Cooling System | 120 mm fan |
| Features | EcoBox package, overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, fan speed control |
| MTBF | 100,000 hours |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 5 °C |
| Depth | 14 cm |
| Height | 8.5 cm |
| Weight | 1.03 kg |
| Width | 15 cm |
| Shipping Depth | 22 cm |
| Shipping Height | 9.5 cm |
| Shipping Weight | 1.1 kg |
| Shipping Width | 16 cm |
