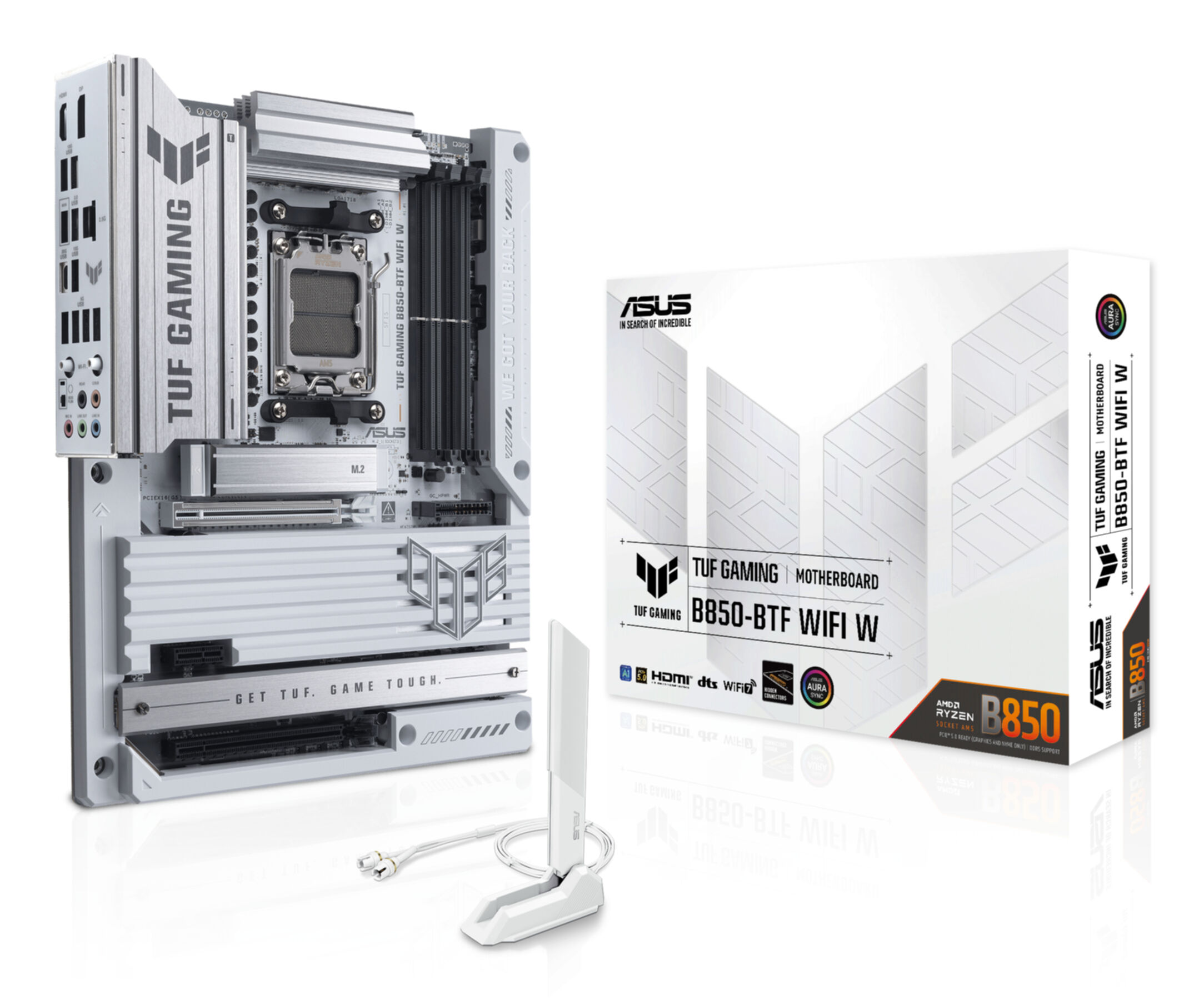

ASUS TUF B850 BTF WIFI W (AM5) (D)
TUF GAMING B850-BTF WIFI W TUF GAMING B850-BTF WIFI W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance. This platform delivers the power and connectivity that advanced AI PC applications demand.
Availability: In stock
TUF GAMING B850-BTF WIFI W TUF GAMING B850-BTF WIFI W takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. “BTF” means “Back To (the) Future” for a new era for all PC DIY gamers; the advanced BTF series not only hides all its connectors on the underside of the motherboard, but it also delivers up to 600 watts for BTF graphics cards through a graphics card high-power slot, for clean cable management and a minimalist build appearance. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
| Socket | Socket AM5 |
| Internal memory max. | 256 GB |
| Chipset | AMD B850 |
| Form factor | ATX |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID support | yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| On-board graphics card | no |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | yes |
| Front panel connector | yes |
| ATX Power connector (24-pin) | yes |
| CPU fan connector | yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | yes |
| EPS power connector (8-pin) | yes |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| 12V power connector | yes |
| Number of water pump connectors | 1 |
| RGB LED pin header | yes |
| Number of RGB LED pin headers | 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Line-in | yes |
| Microphone in | yes |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN | yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | yes |
| Bluetooth version | 5.4 |
| Motherboard chipset | AMD B850 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Product colour | White |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.04 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 57 mm |
| Antenna included | yes |
| Weight | 1.44 kg |
