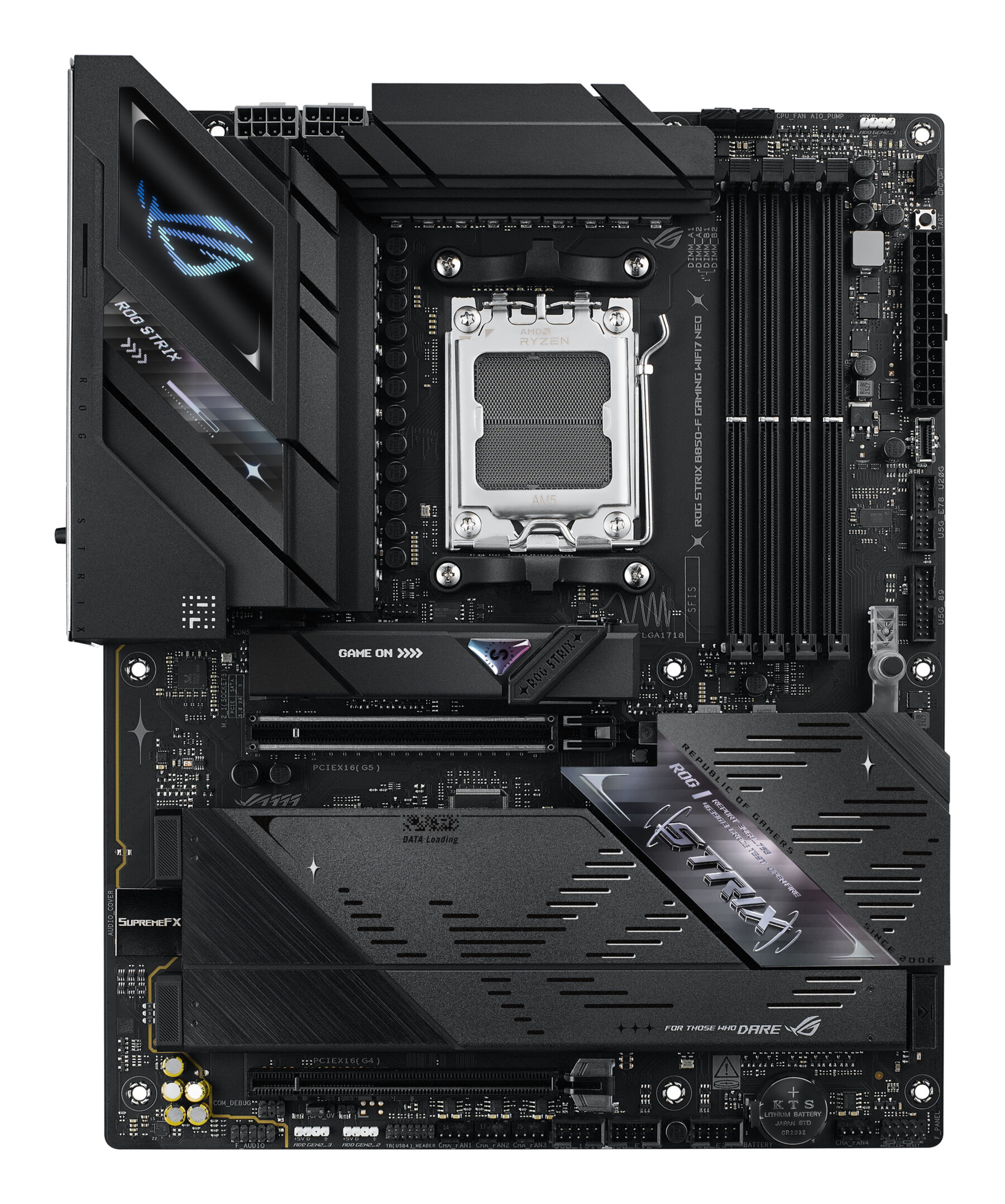

ASUS ROG STRIX B850-F GAMING WIFI7 NEO (AM5) (D)
ROG STRIX B850-F gaming wifi7 neo The ROG STRIX B850-F GAMING WIFI7 Neo is engineered to dominate. Built to unleash the full potential of AMD Ryzen™ 9000, 8000, and 7000 Series processors, this motherboard combines advanced power design with AI technologies to ensure peak performance. It delivers the uncompromised speed and stability essential for elite gaming and the demands of next-gen AI PC applications.
Availability: In stock
ROG STRIX B850-F gaming wifi7 neo The ROG STRIX B850-F GAMING WIFI7 Neo is engineered to dominate. Built to unleash the full potential of AMD Ryzen™ 9000, 8000, and 7000 Series processors, this motherboard combines advanced power design with AI technologies to ensure peak performance. It delivers the uncompromised speed and stability essential for elite gaming and the demands of next-gen AI PC applications.
Specifications
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 6 |
| RAID support | yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| On-board graphics card | no |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | yes |
| ATX Power connector (24-pin) | yes |
| CPU fan connector | yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | yes |
| Thunderbolt headers | 1 |
| 12V power connector | yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | yes |
| Ethernet LAN | yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | yes |
| Bluetooth version | 5.4 |
| Motherboard chipset | AMD B850 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 11 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2280 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | yes |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.18 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Weight | 1.63 kg |
