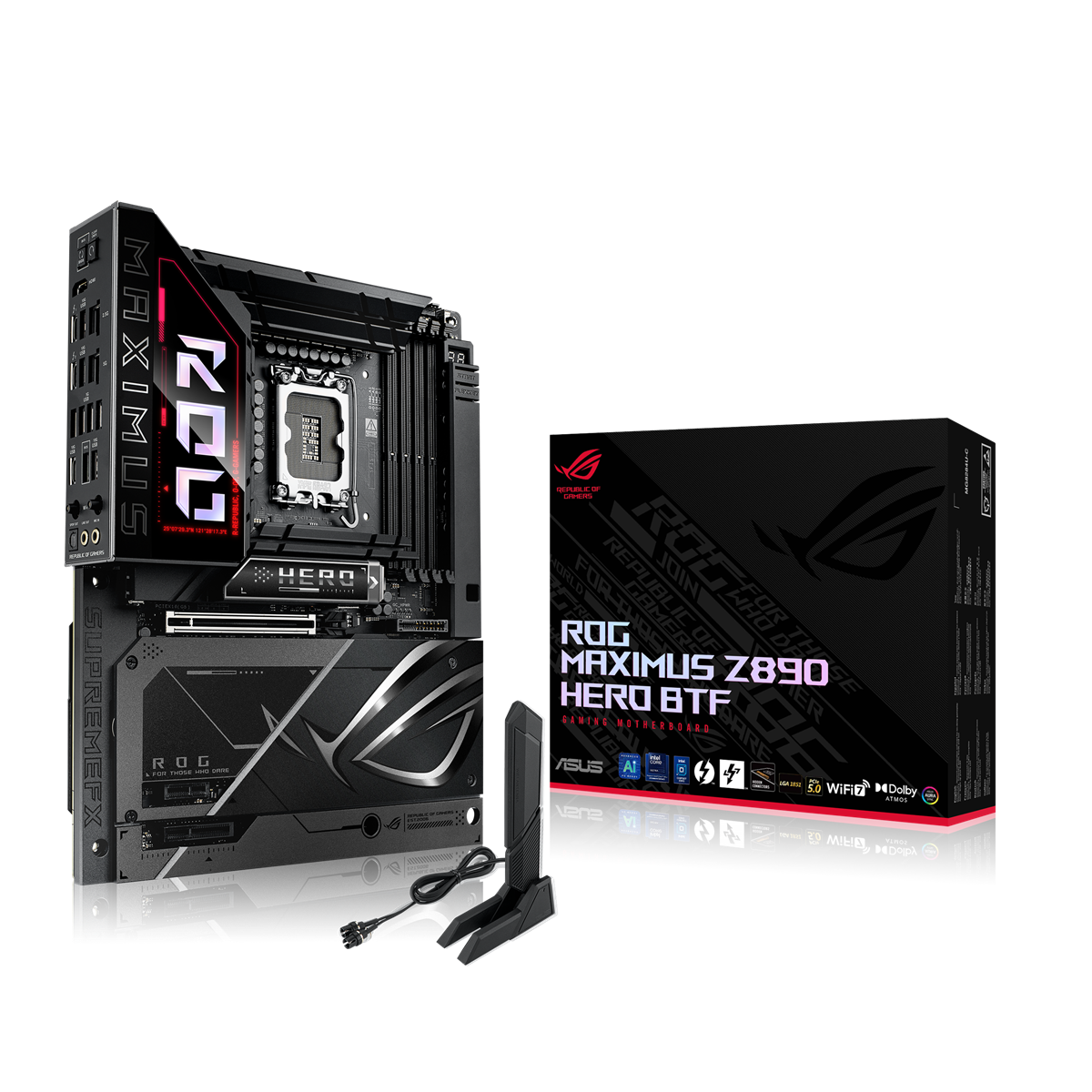

ASUS ROG MAXIMUS Z890 HERO BTF (ATX, Z890, LGA 1851, DDR5, BTF)
The ROG Maximus Z890 Hero BTF features hidden connectors for motherboard power, graphics card power, USB ports and fan cables, enabling an ultra-clean build for your Intel® Core™ Ultra (Series 2) rig. Like the standard Z890 Hero, it also boasts ASUS-exclusive AI-enhanced tuning, DIY-friendly innovations, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology that enables advanced memory overclocking headroom and stability. Meanwhile, Polymo Lighting II elevates your overall system aesthetic.
Availability: In stock
The ROG Maximus Z890 Hero BTF features hidden connectors for motherboard power, graphics card power, USB ports and fan cables, enabling an ultra-clean build for your Intel® Core™ Ultra (Series 2) rig. Like the standard Z890 Hero, it also boasts ASUS-exclusive AI-enhanced tuning, DIY-friendly innovations, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology that enables advanced memory overclocking headroom and stability. Meanwhile, Polymo Lighting II elevates your overall system aesthetic.
Specifications
| CPU-Socket | Intel 1851 |
| Chipset | Intel Z890 |
| Form factor | ATX |
| Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Radio frequency min | 4,800 MHz |
| Memory frequency (OC) | 9,200 MHz |
| Memory slots | 4 pcs. |
| Max Memory Supported | 256 GB |
| PCIe generation | PCIe 5.0 |
| PCIe x16 | 1 pcs. |
| PCIe x1 | 1 pcs. |
| PCIe x4 | 1 pcs. |
| M.2 slots | 6 pcs. |
| M.2 support | 2242/2260/2280/22110 |
| M.2 generation | PCIe 5.0 x4/PCIe 4.0 x4 |
| M.2 interface | PCIe 5.0 x4 mode |
| SATA ports | 4 pcs. |
| Wi-Fi | yes |
| WiFi Standard | Wi-Fi 7 |
| Bluetooth | yes |
| Bluetooth Standard | 5.4 |
| LAN controller | Intel® & Realtek |
| LAN Speed | 2.5Gb & 5Gb Ethernet |
| Thunderbolt | yes |
| RGB | yes |
| Fan Connector (4-pin) | 7 pcs. |
| USB type-A | yes |
| USB type-C | yes |
| HDMI | yes |
| AUX out | yes |
| Ethernet (RJ-45) | yes |
| Width | 244 mm |
| Length | 305 mm |
| Packaging size | 381 x 319 x 124 mm |
| Packaging weight | 4.29 kg |
| Packaging size (Packaging info (4 pcs)) | 520 x 440 x 392 mm |
| Packaging weight (Packaging info (4 pcs)) | 18.46 kg |
