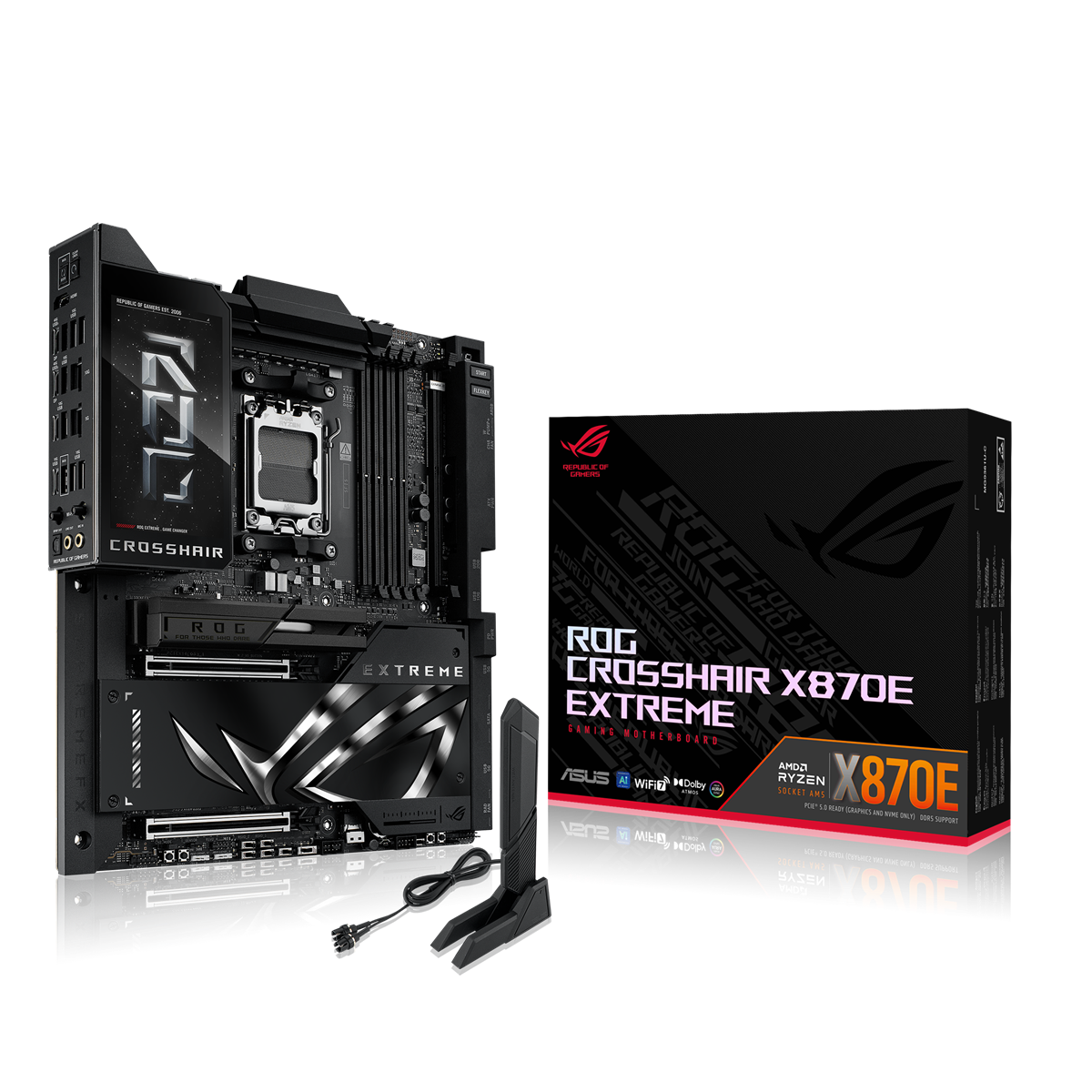

ASUS ROG CROSSHAIR X870E EXTREME (E-ATX, X870E, AM5, DDR5)
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
Availability: In stock
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
Specifications
| CPU-Socket | AMD AM5 |
| Chipset | AMD X870E |
| Form factor | Extended ATX |
| Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Radio frequency min | 4,800 MHz |
| Memory frequency (OC) | 9,000 MHz |
| Memory slots | 4 pcs. |
| Max Memory Supported | 256 GB |
| PCIe generation | PCIe 5.0 |
| PCIe x16 | 2 pcs. |
| M.2 slots | 1 pcs. |
| M.2 support | 2242/2260/2280/22110 |
| M.2 generation | PCIe 5.0 x4/PCIe 4.0 x4 |
| M.2 interface | PCIE modes |
| SATA ports | 4 pcs. |
| Wi-Fi | yes |
| WiFi Standard | Wi-Fi 7 |
| Bluetooth | yes |
| Bluetooth Standard | 5.4 |
| LAN controller | Marvell, Realtek |
| LAN Speed | 10 Gb/s, 5 Gb/s |
| RGB | yes |
| Fan Connector (4-pin) | 6 pcs. |
| USB type-A | yes |
| USB type-C | yes |
| HDMI | yes |
| AUX out | yes |
| Ethernet (RJ-45) | yes |
| Width | 305 mm |
| Length | 277 mm |
| Packaging size | 342 x 385 x 134 mm |
| Packaging weight | 5.35 kg |
| Packaging size (Packaging info (4 pcs)) | 568 x 394 x 465 mm |
| Packaging weight (Packaging info (4 pcs)) | 22.64 kg |
