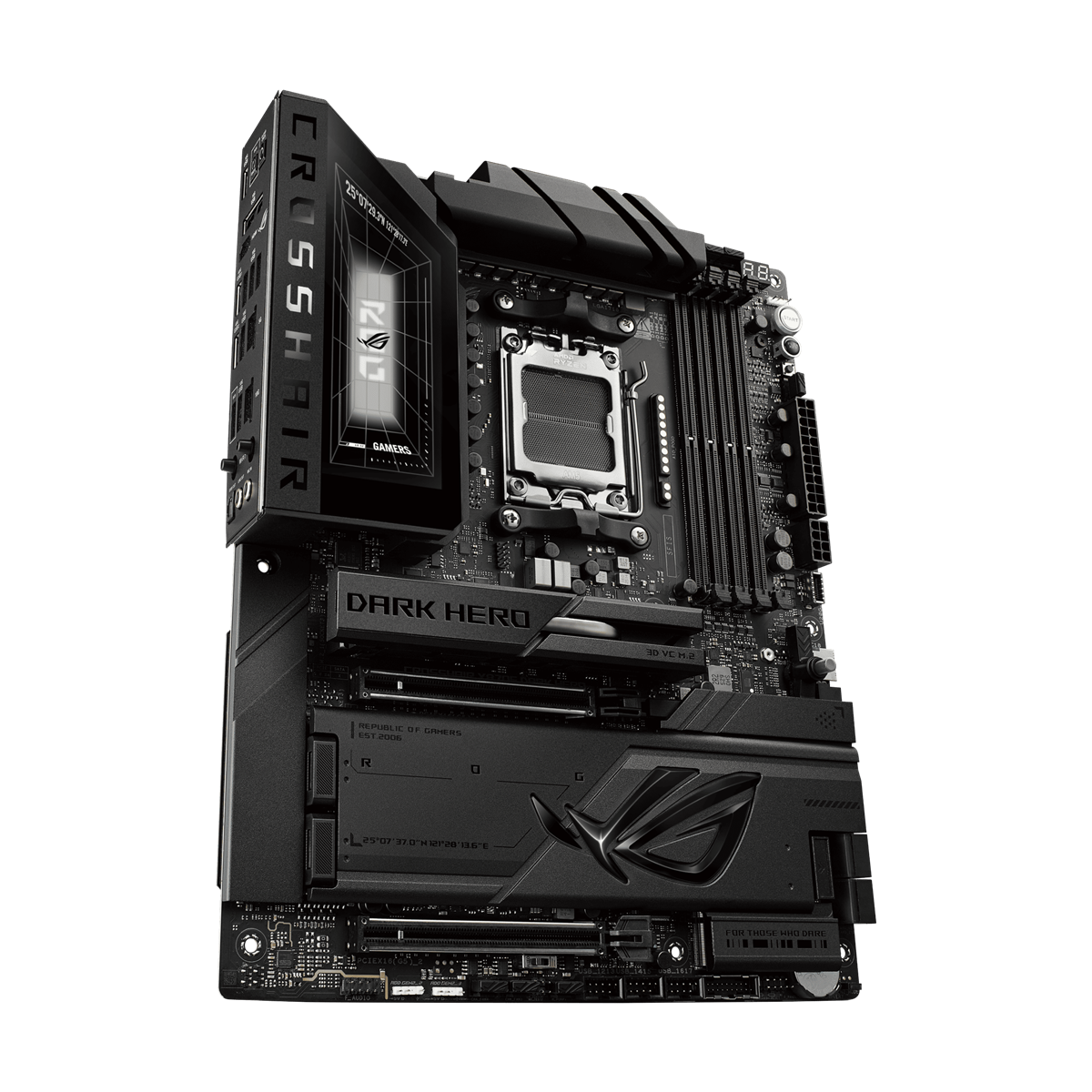

ASUS ROG CROSSHAIR X870E DARK HERO (ATX, X870E, AM5, DDR5)
Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe® 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4® ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.
Availability: In stock
Clad in a sleek, understated black design, the ROG Crosshair X870E Dark Hero delivers refined performance for high-end builds, featuring a robust 20+2+2 power stage design, support for high-speed DDR5 memory, and the latest PCIe® 5.0 connectivity. It offers five onboard M.2 SSD slots with heatsinks, including a 3D VC M.2 heatsink for advanced thermal performance, along with Realtek 10G Ethernet and USB4® ports for next-generation connectivity. ASUS-exclusive AI technologies and Polymo Lighting II complete the platform, balancing intelligent tuning with a clean, premium aesthetic.
Specifications
| CPU-Socket | AMD AM5 |
| Chipset | AMD X870E |
| Form factor | ATX |
| Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Radio frequency min | 4,800 MHz |
| Memory frequency (OC) | 9,600 MHz |
| Memory slots | 4 pcs. |
| Max Memory Supported | 256 GB |
| PCIe generation | PCIe 5.0 |
| PCIe x16 | 2 pcs. |
| M.2 slots | 5 pcs. |
| M.2 support | PCIe 5.0 x4 mode |
| SATA ports | 4 pcs. |
| Wi-Fi | yes |
| WiFi Standard | Wi-Fi 7 |
| Bluetooth | yes |
| Bluetooth Standard | 5.4 |
| LAN controller | Realtek |
| LAN Speed | 10 Gb/s, 1 Gb/s |
| USB type-A | yes |
| USB type-C | yes |
| HDMI | yes |
| DisplayPort | no |
| VGA | no |
| AUX out | yes |
| Ethernet (RJ-45) | yes |
| PS/2 | no |
| Serial/Parallel | no |
| Width | 244 mm |
| Length | 305 mm |
| Packaging size | 383 x 314 x 119 mm |
| Packaging weight | 4.26 kg |
| Packaging size (Packaging info (4 pcs)) | 470 x 390 x 342 mm |
| Packaging weight (Packaging info (4 pcs)) | 17.74 kg |
