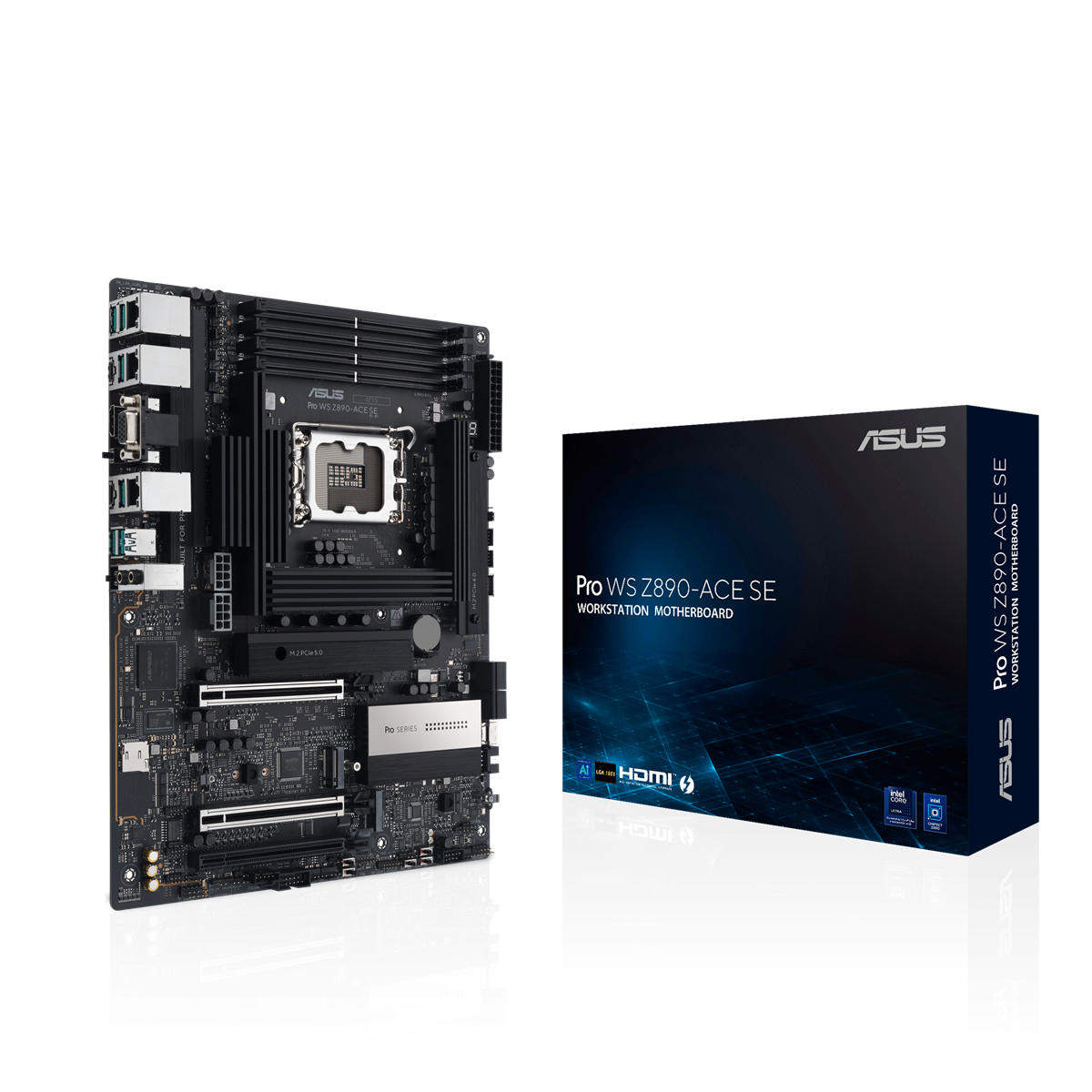

ASUS PRO WS Z890-ACE SE (ATX, Z890, LGA 1851, DDR5)
Intel Z890 LGA1851 ATX workstation motherboard with PCIe® 5.0, DDR5 support, 10Gb & 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gbps front-panel connector and onboard BMC.
Availability: In stock
Intel Z890 LGA1851 ATX workstation motherboard with PCIe® 5.0, DDR5 support, 10Gb & 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gbps front-panel connector and onboard BMC. Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications Intel LGA1851 socket: Ready for Intel® Core™ Ultra 9, 7, and 5 desktop processors Robust performance: 16+2+1+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors Future-proofed connectivity: Thunderbolt™ 4, 10Gb & 2.5Gb Ethernet, two PCIe® 5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Advisor and NPU boost DIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS FlashBack™, Q-Connector Server-grade IPMI remote management and onboard BMC: Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management The Pro WS Z890-ACE SE empowers workstation users of all levels by maximizing the performance of the latest Intel® Core™ Ultra Processor (Series 2) processors with 16+1+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including Thunderbolt™ 4 port, 10Gb and 2.5Gb Ethernet. The workstation motherboard is engineered to support dual graphics cards, making it an ideal choice for content creation, AI and deep learning, and IT management.
Specifications
| CPU-Socket | Intel 1851 |
| Chipset | Intel Z890 |
| Form factor | ATX |
| Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Radio frequency min | 4,800 MHz |
| Memory frequency (OC) | 9,066 MHz |
| Memory slots | 4 pcs. |
| Max Memory Supported | 256 GB |
| PCIe generation | PCIe 5.0 |
| PCIe x16 | 3 pcs. |
| M.2 slots | 4 pcs. |
| M.2 support | 2242/2260/2280 |
| M.2 generation | PCIe 5.0 x4/PCIe 4.0 x4 |
| M.2 interface | PCIE modes |
| SATA ports | 8 pcs. |
| LAN controller | Intel®, Marvell, Realtek |
| LAN Speed | 10 Gb/s, 2.5 Gb/s, 1 Gb/s |
| Thunderbolt | yes |
| Fan Connector (4-pin) | 6 pcs. |
| USB type-A | yes |
| USB type-C | yes |
| HDMI | yes |
| VGA | yes |
| AUX out | yes |
| Ethernet (RJ-45) | yes |
| Width | 305 mm |
| Length | 244 mm |
| Packaging size | 281 x 345 x 76 mm |
| Packaging weight | 1.85 kg |
| Packaging size (Packaging info (4 pcs)) | 378 x 303 x 302 mm |
| Packaging weight (Packaging info (4 pcs)) | 8.26 kg |
