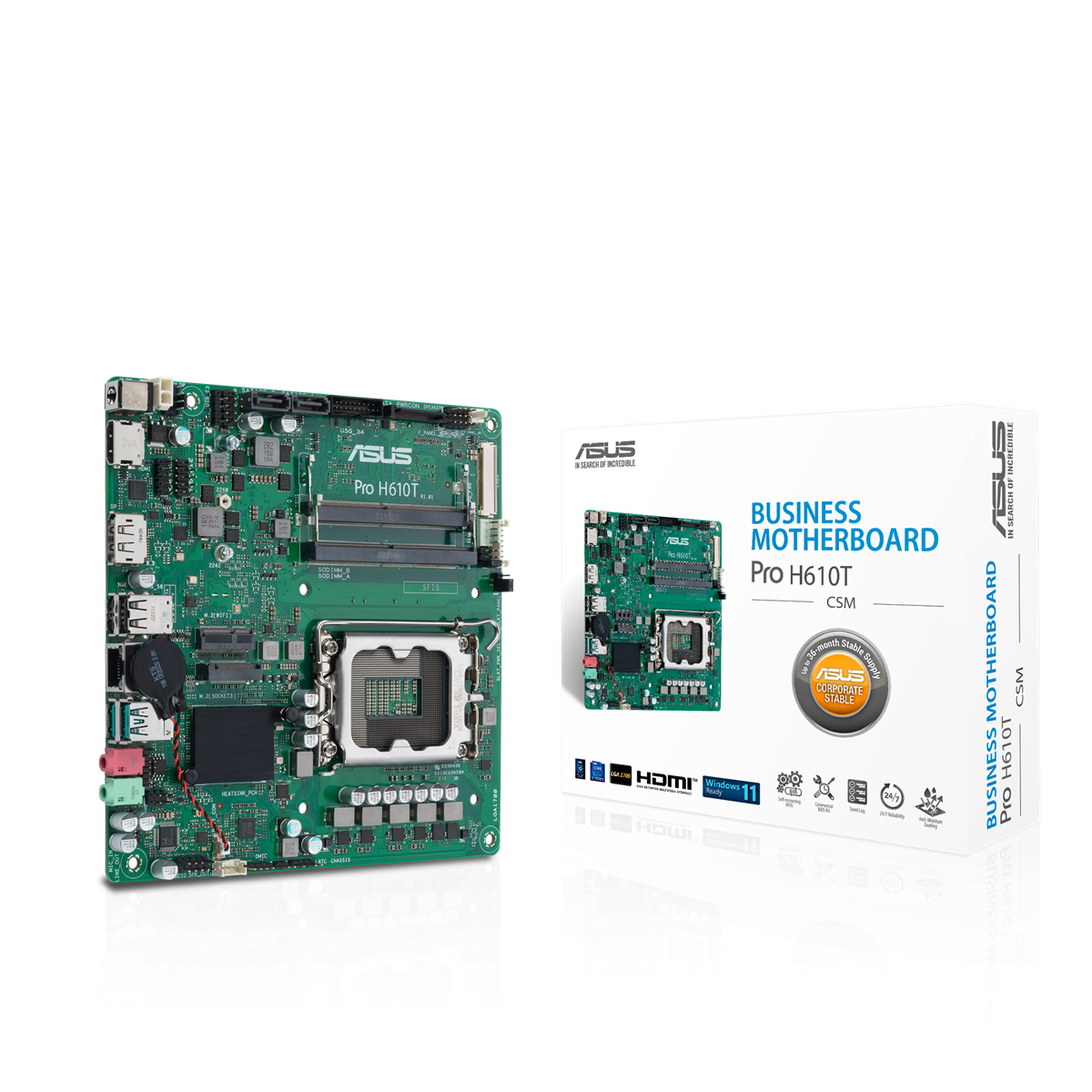

ASUS PRO H610T-CSM (Thin mini-ITX, H610, LGA 1700, DDR5)
Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability, and efficiency.
Availability: In stock
Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability, and efficiency. Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Specifications
| CPU-Socket | Intel 1700 |
| Chipset | Intel H610 |
| Form factor | mini-ITX (Thin) |
| Memory Type | SO-DIMM DDR5 |
| Channel Supported | Dual Channel |
| Radio frequency min | 4,800 MHz |
| Memory frequency (OC) | 5,600 MHz |
| Memory slots | 2 pcs. |
| Max Memory Supported | 64 GB |
| M.2 slots | 1 pcs. |
| M.2 support | 2260/2280 |
| M.2 generation | PCIe 4.0 x4 |
| M.2 interface | PCIe 4.0 x4 & SATA modes |
| SATA ports | 2 pcs. |
| Wi-Fi | no |
| Bluetooth | no |
| LAN controller | Realtek |
| LAN Speed | 1 Gb/s |
| TPM | yes |
| Thunderbolt | no |
| RGB | no |
| Fan Connector (4-pin) | 2 pcs. |
| USB type-A | yes |
| USB type-C | no |
| HDMI | yes |
| DisplayPort | yes |
| VGA | no |
| AUX out | yes |
| Ethernet (RJ-45) | yes |
| PS/2 | no |
| Serial/Parallel | no |
| Width | 170 mm |
| Length | 170 mm |
| Packaging size | 236 x 190 x 68 mm |
| Packaging weight | 647 g |
| Packaging size (Packaging info (10 pcs)) | 478 x 332 x 222 mm |
| Packaging weight (Packaging info (10 pcs)) | 7.43 kg |
