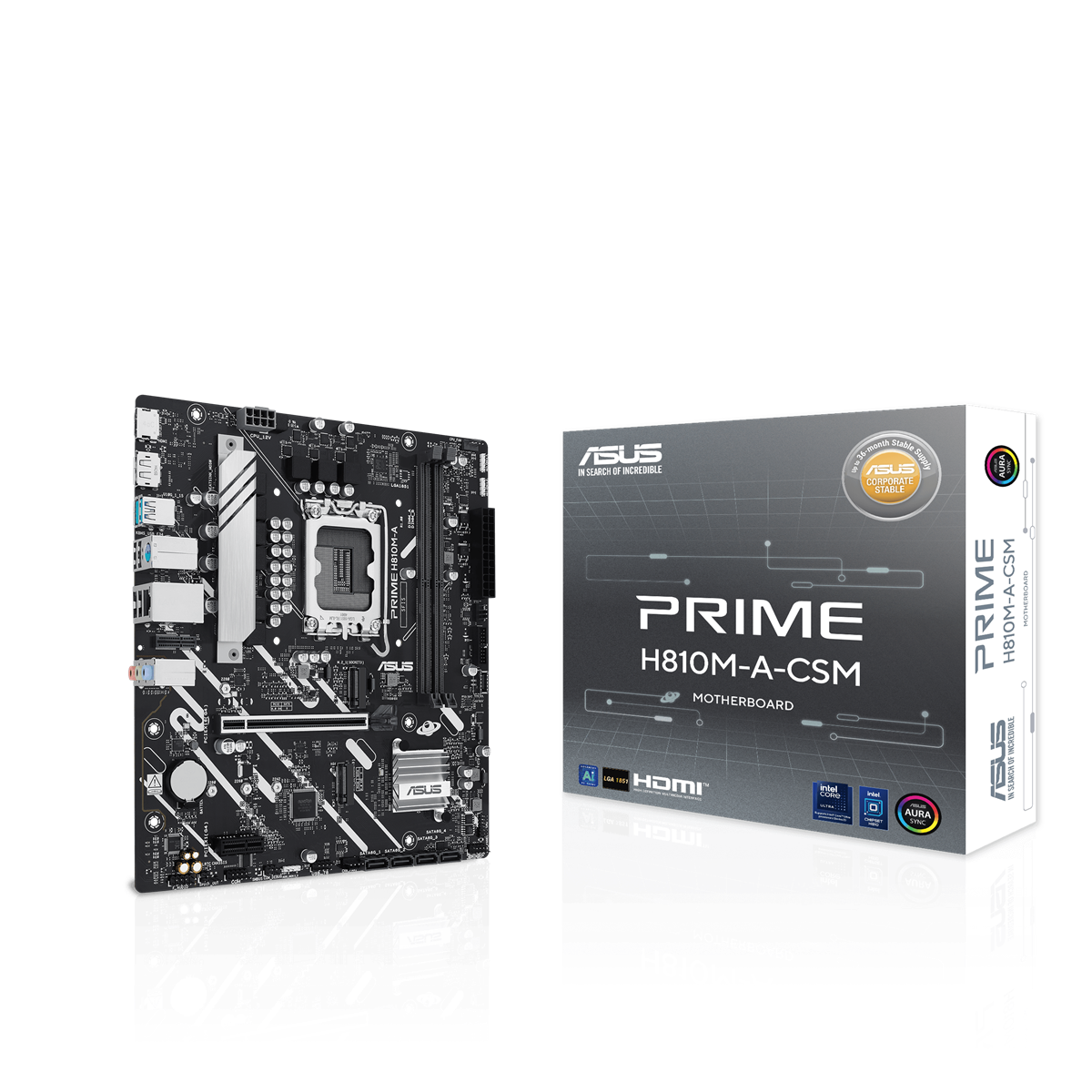

ASUS PRIME H810M-A-CSM (mATX, H810, LGA 1851, DDR5)
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Availability: In stock
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| CPU-Socket | Intel 1851 |
| Chipset | Intel H810 |
| Form factor | micro ATX |
| Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Radio frequency min | 4,800 MHz |
| Memory frequency (OC) | 6,400 MHz |
| Memory slots | 2 pcs. |
| Max Memory Supported | 128 GB |
| PCIe generation | PCIe 4.0 |
| PCIe x16 | 1 pcs. |
| PCIe x1 | 1 pcs. |
| M.2 slots | 2 pcs. |
| M.2 support | 2242/2260/2280 |
| M.2 generation | PCIe 4.0 x4 |
| M.2 interface | PCIE modes |
| SATA ports | 4 pcs. |
| Wi-Fi | no |
| Bluetooth | no |
| LAN controller | Intel® |
| LAN Speed | 1 Gb/s |
| TPM | yes |
| Fan Connector (4-pin) | 3 pcs. |
| USB type-A | yes |
| HDMI | yes |
| DisplayPort | yes |
| AUX out | yes |
| Ethernet (RJ-45) | yes |
| Width | 244 mm |
| Length | 244 mm |
| Packaging size | 270 x 274 x 60 mm |
| Packaging weight | 940 g |
| Packaging size (Packaging info (10 pcs)) | 564 x 288 x 297 mm |
| Packaging weight (Packaging info (10 pcs)) | 10.63 kg |
