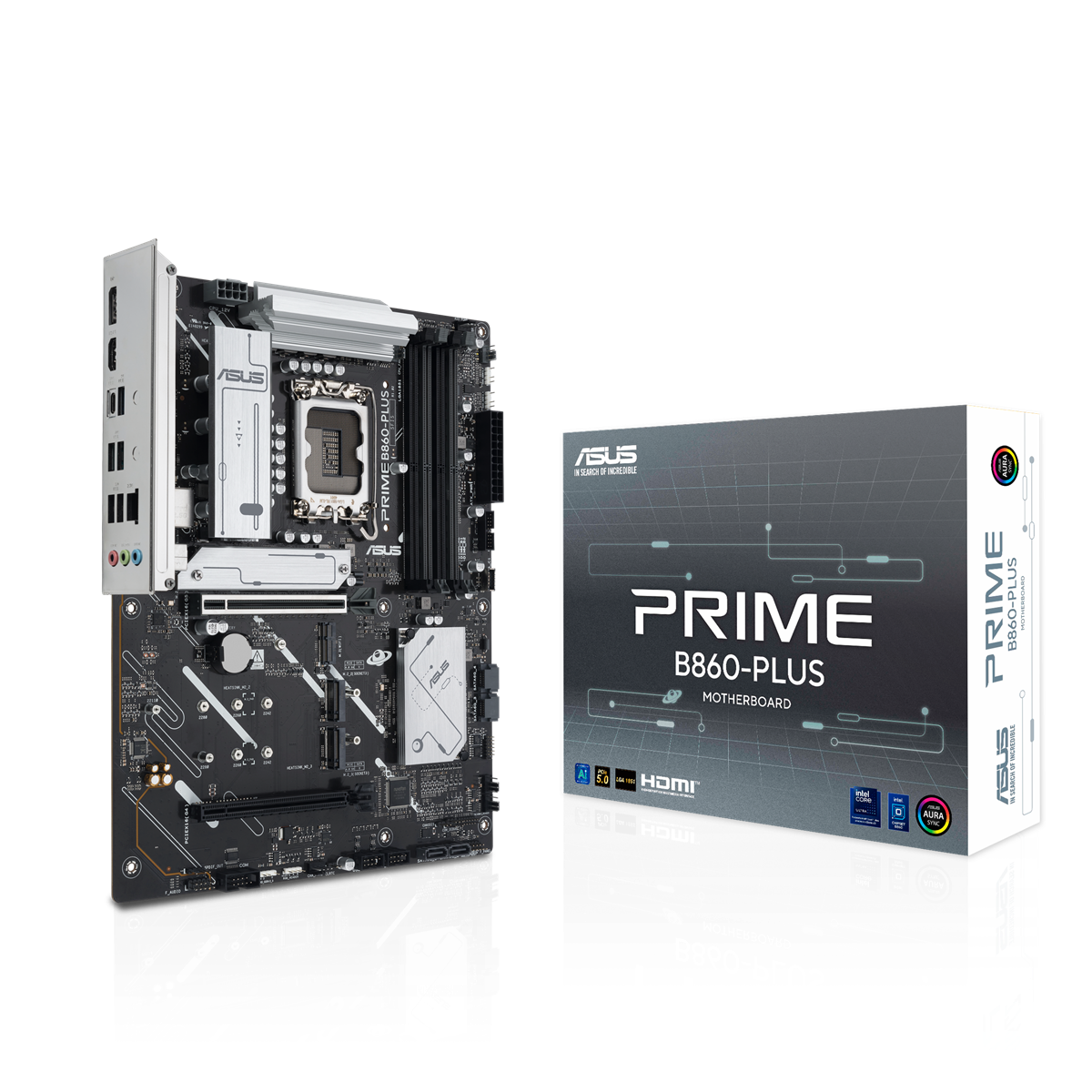

ASUS PRIME B860-PLUS-CSM (ATX, B860, LGA 1851, DDR5)
Prime B860-PLUS-CSM ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Availability: In stock
Prime B860-PLUS-CSM ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| CPU-Socket | Intel 1851 |
| Chipset | Intel B860 |
| Form factor | ATX |
| Memory Type | DDR5-SDRAM |
| Channel Supported | Dual-channel |
| Radio frequency min | 4,800 MHz |
| Memory frequency (OC) | 8,666 MHz |
| Memory slots | 4 pcs. |
| Max Memory Supported | 256 GB |
| PCIe generation | PCIe 5.0 |
| PCIe x16 | 2 pcs. |
| M.2 slots | 3 pcs. |
| M.2 support | M.2, SATA III |
| M.2 interface | M.2, SATA III |
| SATA ports | 4 pcs. |
| Wi-Fi | no |
| LAN Speed | 2.5 Gigabit Ethernet |
| RGB | yes |
| Fan Connector (4-pin) | 7 pcs. |
| USB type-A | yes |
| USB type-C | yes |
| HDMI | yes |
| DisplayPort | yes |
| AUX out | yes |
| Ethernet (RJ-45) | yes |
| Width | 305 mm |
| Length | 244 mm |
| Packaging size | 363 x 276 x 73 mm |
| Packaging weight | 1.43 kg |
| Packaging size (Packaging info (5 pcs)) | 377 x 372 x 302 mm |
| Packaging weight (Packaging info (5 pcs)) | 7.79 kg |
