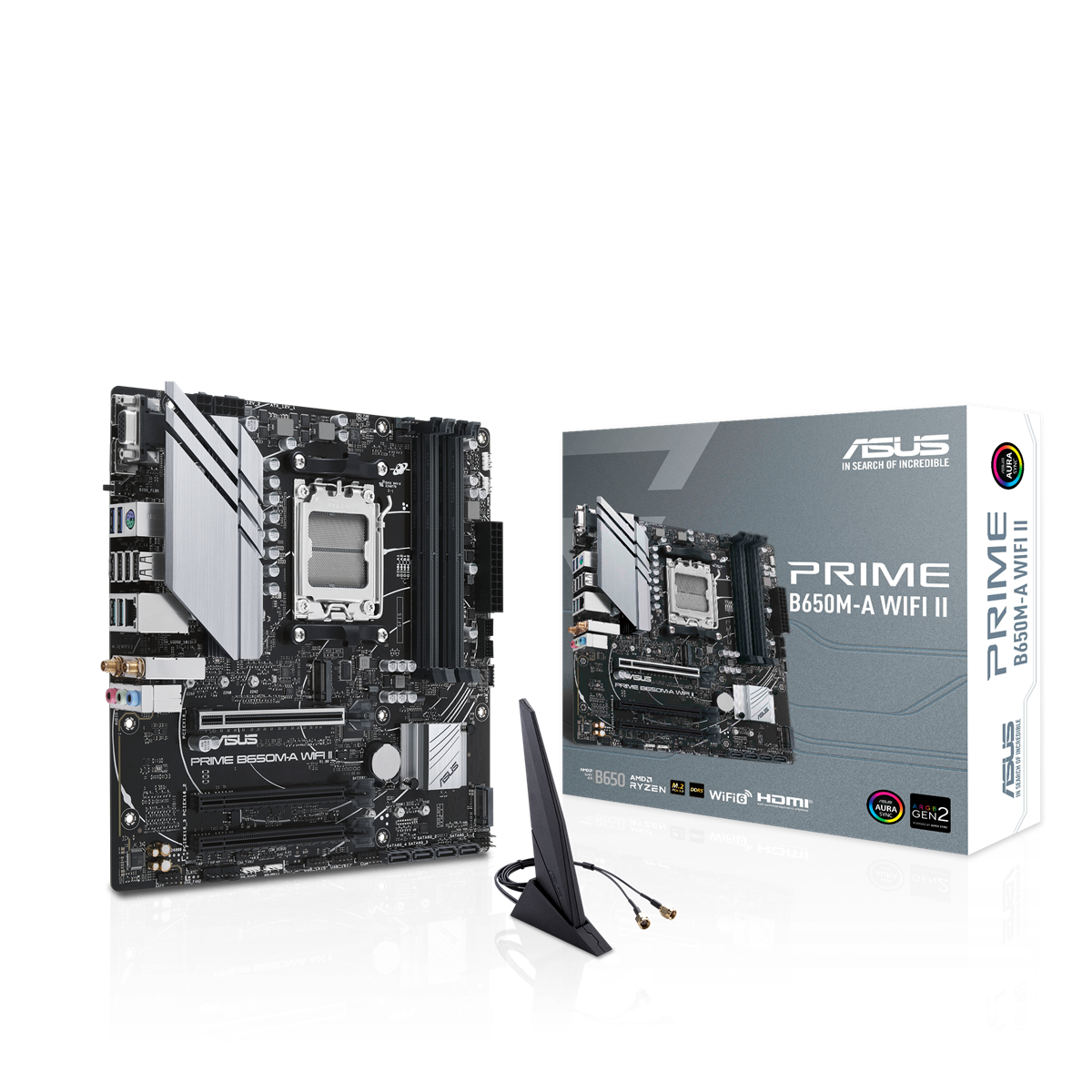

ASUS PRIME B650M-A WIFI II (mATX, B650, AM5)
AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua Sync
Availability: In stock
AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua Sync AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors Ultrafast Connectivity: Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C® ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A WIFI II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. FLEXIBILITY Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. COOLING PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Specifications
| CPU-Socket | AMD AM5 |
| Chipset | AMD B650 |
| Form factor | micro ATX |
| Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Radio frequency min | 4,800 MHz |
| Memory frequency (OC) | 6,400 MHz |
| Memory slots | 4 pcs. |
| Max Memory Supported | 128 GB |
| PCIe generation | PCIe 4.0 |
| PCIe x16 | 3 pcs. |
| M.2 slots | 2 pcs. |
| M.2 support | 2242/2260/2280 |
| M.2 generation | PCIe 5.0 x4/PCIe 4.0 x4 |
| SATA ports | 4 pcs. |
| Wi-Fi | yes |
| WiFi Standard | Wi-Fi 6 |
| Bluetooth | yes |
| Bluetooth Standard | 5.2 |
| LAN controller | Realtek |
| LAN Speed | 2.5Gb Ethernet |
| Fan Connector (4-pin) | 5 pcs. |
| USB type-A | yes |
| HDMI | yes |
| DisplayPort | yes |
| VGA | yes |
| AUX out | yes |
| Ethernet (RJ-45) | yes |
| Packaging size | 284 x 279 x 76 mm |
| Packaging weight | 1.39 kg |
| Packaging size (Packaging info (10 pcs)) | 350 x 350 x 500 mm |
| Packaging weight (Packaging info (10 pcs)) | 14.00 kg |
