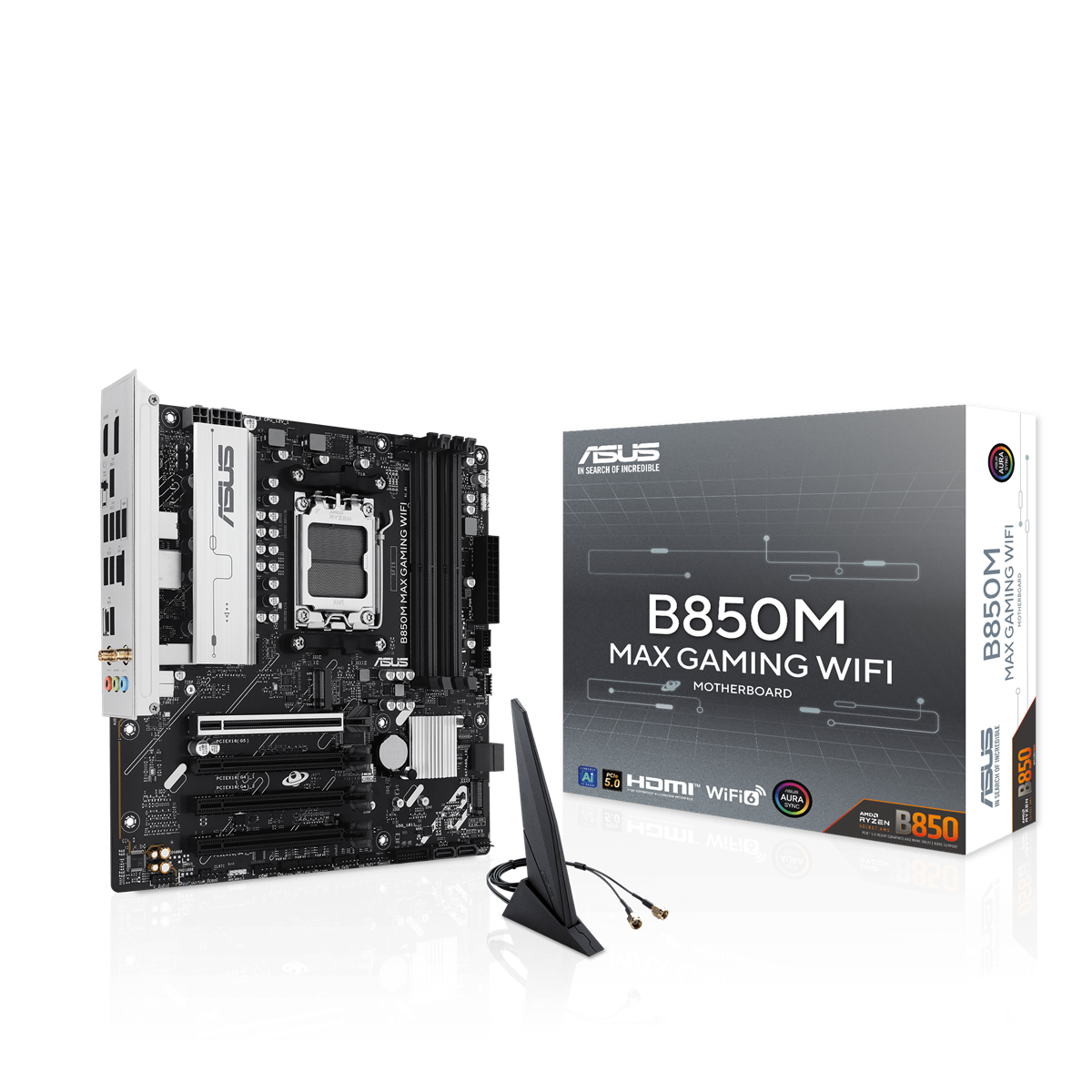

ASUS B850M MAX GAMING WIFI (mATX, B850, AM5, DDR5)
B850M MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Availability: In stock
B850M MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| CPU-Socket | AMD AM5 |
| Chipset | AMD B850 |
| Form factor | micro ATX |
| Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Radio frequency min | 4,800 MHz |
| Memory frequency (OC) | 8,000 MHz |
| Memory slots | 4 pcs. |
| Max Memory Supported | 256 GB |
| PCIe generation | PCIe 5.0 |
| PCIe x16 | 4 pcs. |
| M.2 slots | 3 pcs. |
| M.2 support | 2242/2260/2280 |
| M.2 generation | PCIe 5.0 x4/PCIe 4.0 x4 |
| M.2 interface | PCIE modes |
| SATA ports | 4 pcs. |
| Wi-Fi | yes |
| WiFi Standard | Wi-Fi 6 |
| Bluetooth | yes |
| Bluetooth Standard | 5.4 |
| LAN controller | Realtek |
| LAN Speed | 1 Gb/s |
| TPM | yes |
| RGB | yes |
| Fan Connector (4-pin) | 7 pcs. |
| USB type-A | yes |
| USB type-C | yes |
| HDMI | yes |
| DisplayPort | yes |
| VGA | no |
| AUX out | yes |
| Ethernet (RJ-45) | yes |
| PS/2 | no |
| Serial/Parallel | no |
| Width | 244 mm |
| Length | 244 mm |
| Packaging size | 288 x 281 x 76 mm |
| Packaging weight | 1.39 kg |
| Packaging size (Packaging info (10 pcs)) | 576 x 370 x 308 mm |
| Packaging weight (Packaging info (10 pcs)) | 18.07 kg |
