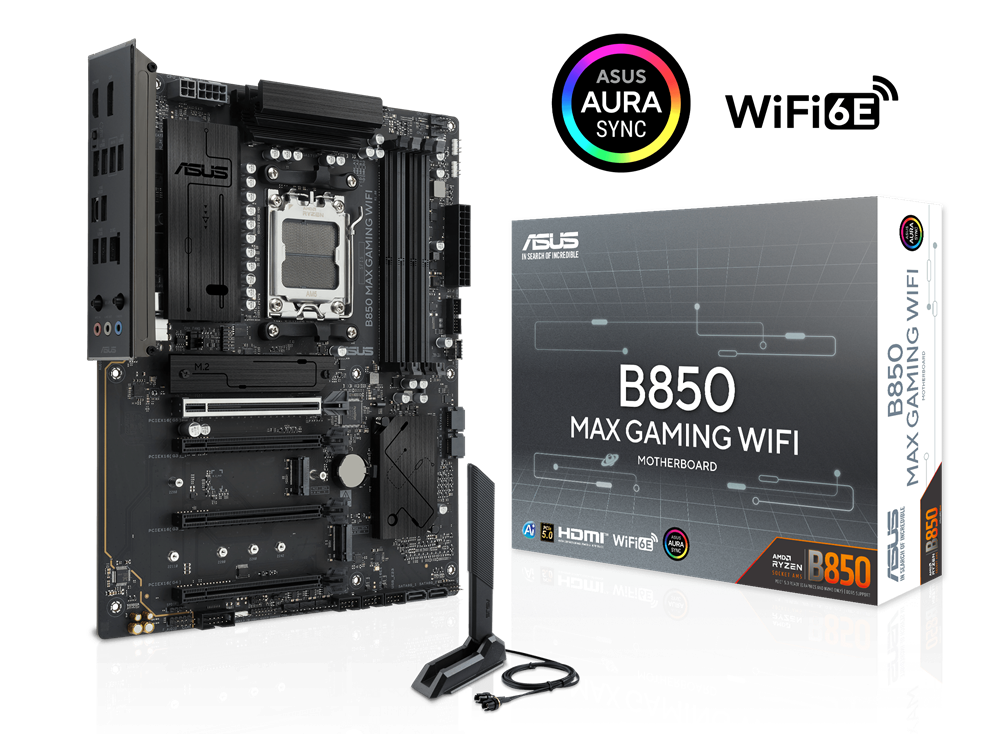

ASUS B850 MAX GAMING WIFI (ATX, B850, AM5, DDR5)
B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Availability: In stock
B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
| CPU-Socket | AMD AM5 |
| Chipset | AMD B850 |
| Form factor | ATX |
| Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Radio frequency min | 4,800 MHz |
| Memory frequency (OC) | 8,000 MHz |
| Memory slots | 4 pcs. |
| Max Memory Supported | 256 GB |
| PCIe generation | PCIe 5.0 |
| PCIe x16 | 4 pcs. |
| M.2 slots | 3 pcs. |
| M.2 support | 2242/2260/2280 |
| M.2 generation | PCIe 5.0 x4/PCIe 4.0 x4 |
| M.2 interface | PCIE modes |
| SATA ports | 4 pcs. |
| Wi-Fi | yes |
| WiFi Standard | Wi-Fi 6E |
| Bluetooth | yes |
| Bluetooth Standard | 5.3 |
| LAN controller | Realtek |
| LAN Speed | 2.5Gb Ethernet |
| Thunderbolt | yes |
| RGB | yes |
| Fan Connector (4-pin) | 7 pcs. |
| USB type-A | yes |
| USB type-C | yes |
| HDMI | yes |
| DisplayPort | yes |
| VGA | no |
| AUX out | yes |
| Ethernet (RJ-45) | yes |
| PS/2 | no |
| Serial/Parallel | no |
| Width | 305 mm |
| Length | 244 mm |
| Packaging size | 282 x 360 x 73 mm |
| Packaging weight | 1.63 kg |
| Packaging size (Packaging info (5 pcs)) | 377 x 372 x 302 mm |
| Packaging weight (Packaging info (5 pcs)) | 8.94 kg |
