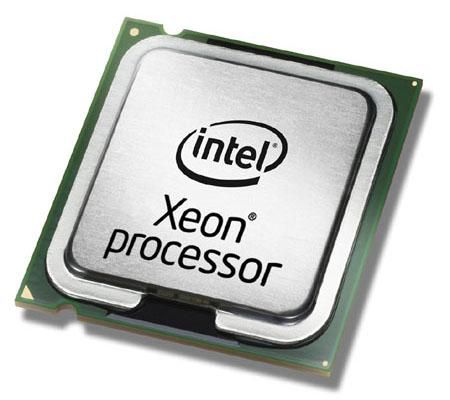

Xeon Processor L5640
€10,78
Xeon Processor L5640
Availability: In stock
Secure payment · Fast delivery
EAN:AT80614005133AB-RFBCategories:, , Brand:
Xeon Processor L5640
Specifications
Specifications
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Server |
| Physical Address Extension (PAE) | 40 bit |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Graphics | On-board graphics card No |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Memory channels | Triple-channel |
| Memory clock speeds supported by processor | 1066, 1333, 800 |
| Memory types supported by processor | DDR3-SDRAM |
| Operational conditions | Tcase 69,4 °C |
| Tcase | 69,4 °C |
| Cache memory | 12 MB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 288 GB |
| Box | No |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | No |
| CPU multiplier (bus/core ratio) | 17 |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Number of QPI links | 2 |
| Package type | Box, Tray |
| Processor ARK ID | 47926 |
| Processor base frequency | 2,26 GHz |
| Processor boost frequency | 2,8 GHz |
| Processor cache | 12288 KB |
| Processor cache type | Smart Cache |
| Processor code | SLBV8 |
| Processor codename | Westmere EP |
| Processor cores | 6 |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor frequency | 2,26 GHz |
| Processor lithography | 32 nm |
| Processor manufacturer | Intel |
| Processor model | L5640 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | LGA 1366 (Socket B) |
| Processor threads | 12 |
| System bus rate | 5,86 GT/s |
| Thermal Design Power (TDP) | 60 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Born on date | Q1'10 |
| Bus bandwidth | 5,86 |
| Bus speed | 5.86 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q1'10 |
| Maximum memory | 288 GB |
| Processor brand name | Intel Xeon |
| Processor core voltage | 0.750-1.350 V |
| Product family | Intel Xeon Processor 5000 Sequence |
| Product name | Intel Xeon L5640 (12M Cache, 2.26 GHz, 5.86 GT/s Intel QPI) |
| Product type | Processor |
| Status | Discontinued |
| Supported memory types | DDR3-SDRAM |
| Vendor information | Brand Name Intel Warranty 1 År |
| Brand Name Intel | Warranty 1 År |
| Brand Name | Intel |
| Warranty | 1 År |
| Weight & dimensions | Processor package size 42.5mm x 45mm mm |
| Processor package size | 42.5mm x 45mm mm |
| Hovedkategori | Server, Computer & Printer Parts |
| Underkategori | CPUs |
