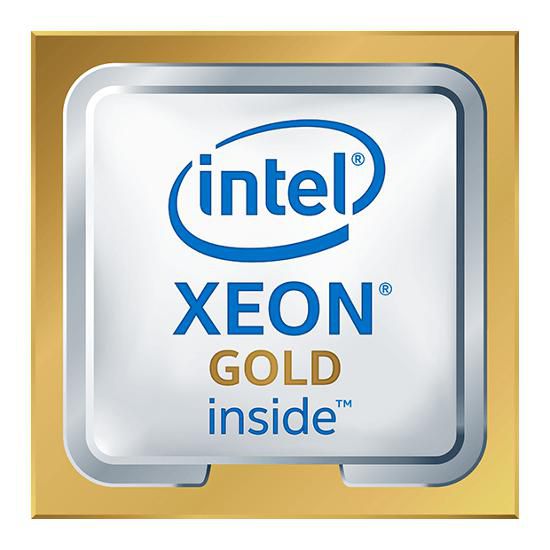

Lenovo Intel Xeon Gold 6240R 2.4GHz, 24C/48T, 10.4GT/s, 35.75M Cache, HT (165W) DDR4-2933
The Intel Xeon® 6240R 2.4GHz Twenty Four Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption. Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon 6240R 2.4GHz Twenty Four Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Availability: In stock
The Intel Xeon® 6240R 2.4GHz Twenty Four Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption. Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon 6240R 2.4GHz Twenty Four Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Specifications
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express CEM revision | 3.0 |
| PCI Express slots version | 3.0 |
| Scalability | 2S |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| ECC | Yes |
| Maximum internal memory supported by processor | 1 TB |
| Memory channels | Hexa-channel |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Tcase | 90 °C |
| Component for | Server/workstation |
| Processor ARK ID | 199343 |
| Processor base frequency | 2,4 GHz |
| Processor boost frequency | 4 GHz |
| Processor cache | 35,75 MB |
| Processor codename | Cascade Lake |
| Processor cores | 24 |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | 6240R |
| Processor operating modes | 64-bit |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 48 |
| Thermal Design Power (TDP) | 165 W |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Intel® Speed Select technology - Performance Profile (Intel® SST-PP) | No |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Brand Name | Lenovo |
| Warranty | 1 year |
| Processor package size | 76.0 x 56.5 mm |
