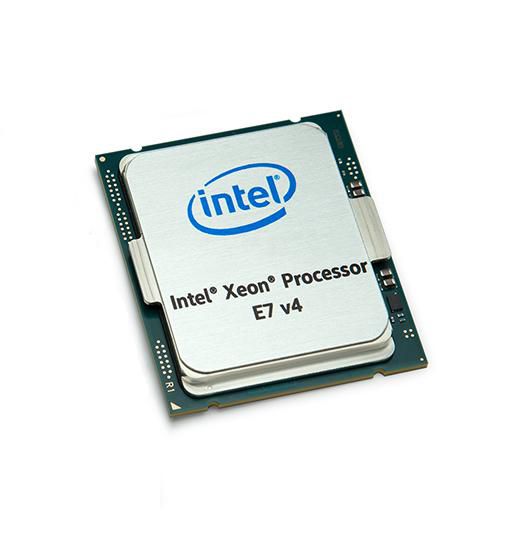

Xeon E7-8880v4 (55M Cache,
€953,29
Xeon E7-8880v4 (55M Cache,
Availability: In stock
Secure payment · Fast delivery
EAN:W128940547Categories:, , Brand:
Xeon E7-8880v4 (55M Cache,
Specifications
Specifications
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| CPU configuration (max) | 8 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 32 |
| PCI Express CEM revision | 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | Yes |
| Scalability | S8S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Graphics | On-board graphics card No |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 3 TB |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1066, 1333, 1600, 1866 |
| Memory types supported by processor | DDR3-SDRAM, DDR4-SDRAM |
| Operational conditions | Tcase 77 °C |
| Tcase | 77 °C |
| Other features | Maximum internal memory 3145728 MBMaximum internal memory 3 TB |
| Maximum internal memory 3145728 MB | Maximum internal memory 3 TB |
| Maximum internal memory | 3 TB |
| Box | No |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | No |
| Memory bandwidth supported by processor (max) | 85 GB/s |
| Number of QPI links | 3 |
| Package type | Tray |
| Processor ARK ID | 93792 |
| Processor base frequency | 2,2 GHz |
| Processor boost frequency | 3,3 GHz |
| Processor cache | 56320 KB |
| Processor cache type | Smart Cache |
| Processor code | SR2S7 |
| Processor codename | Broadwell |
| Processor cores | 22 |
| Processor family | Intel Xeon E7 v4 |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | E7-8880V4 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E7-8800 v4 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 44 |
| Stepping | B0 |
| System bus rate | 9,6 GT/s |
| Thermal Design Power (TDP) | 150 W |
| Conflict-Free processor | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Instruction Replay Technology | No |
| Intel Instruction Replay Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 3,3 GHz |
| Bus bandwidth | 9,6 |
| Bus speed | 9.6 GT/s |
| Bus type units | GT/s |
| End of servicing updates date | Thursday, June 30, 2022 |
| Last change | 63903513 |
| Launch date | Q2'16 |
| Processor brand name | Intel Xeon |
| Product family | Intel Xeon Processor E7 v4 Family |
| Product type | Processor |
| Servicing status | End of Servicing Updates |
| Status | Launched |
| Supported memory types | DDR3-SDRAM, DDR4-SDRAM |
| Vendor information | Brand Name Intel Warranty 1 År |
| Brand Name Intel | Warranty 1 År |
| Brand Name | Intel |
| Warranty | 1 År |
| Weight & dimensions | Processor package size 45mm x 52.5mm mm |
| Processor package size | 45mm x 52.5mm mm |
| Hovedkategori | Server, Computer & Printer Parts |
| Underkategori | CPUs |
