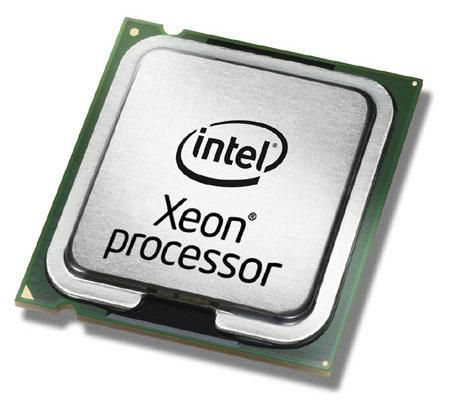

Xeon E5607
€19,58
Xeon E5607
Availability: In stock
Secure payment · Fast delivery
EAN:AT80614006789AA-RFBCategories:, , Brand:
Xeon E5607
Specifications
Specifications
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Server |
| Physical Address Extension (PAE) | 40 bit |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Graphics | On-board graphics card No |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Memory channels | Triple-channel |
| Memory types supported by processor | DDR3-SDRAM |
| Operational conditions | Maximum operating temperature 80 °C |
| Maximum operating temperature | 80 °C |
| Other features | Cache memory 8 MBMaximum internal memory 294912 MBMaximum internal memory 288 GB |
| Cache memory | 8 MB |
| Maximum internal memory | 288 GB |
| Box | No |
| Bus type | QPI |
| Cooler included | No |
| CPU multiplier (bus/core ratio) | 17 |
| Memory bandwidth supported by processor (max) | 25,6 GB/s |
| Number of QPI links | 2 |
| Package type | Tray |
| Processor ARK ID | 52582 |
| Processor base frequency | 2,26 GHz |
| Processor cache | 8192 KB |
| Processor cache type | Smart Cache |
| Processor code | SLBZ9 |
| Processor codename | Westmere EP |
| Processor cores | 4 |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor frequency | 2,26 GHz |
| Processor lithography | 32 nm |
| Processor manufacturer | Intel |
| Processor model | E5607 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | LGA 1366 (Socket B) |
| Processor threads | 4 |
| Stepping | B1 |
| System bus rate | 4,8 GT/s |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0.75 - 1.35 V |
| Conflict-Free processor | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Born on date | Q1'11 |
| Bus bandwidth | 4,8 |
| Bus speed | 4.8 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q1'11 |
| Maximum memory | 288 GB |
| Processor brand name | Intel Xeon |
| Processor core voltage | 0.750-1.350 V |
| Product family | Intel Xeon Processor 5000 Sequence |
| Product name | Intel Xeon E5607 (8M Cache, 2.26 GHz, 4.80 GT/s Intel QPI) |
| Product type | Processor |
| Status | Discontinued |
| Supported memory types | DDR3-SDRAM |
| Vendor information | Brand Name Intel Warranty 1 År |
| Brand Name Intel | Warranty 1 År |
| Brand Name | Intel |
| Warranty | 1 År |
| Weight & dimensions | Processor package size 42.5mm x 45mm mm |
| Processor package size | 42.5mm x 45mm mm |
| Hovedkategori | Server, Computer & Printer Parts |
| Underkategori | CPUs |
