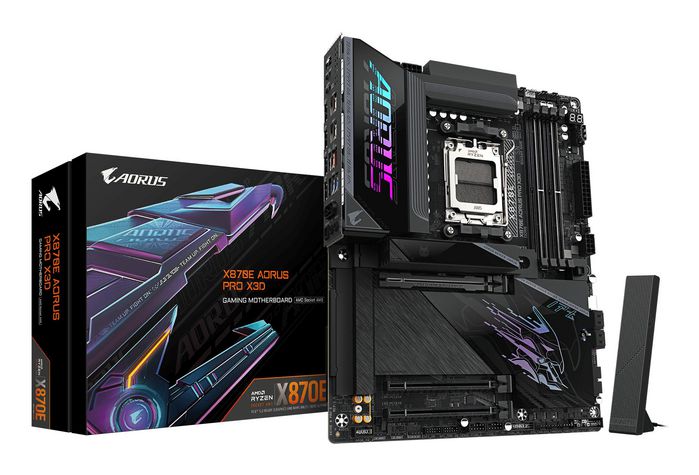

Gigabyte X870E AORUS PRO X3D Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4
€434,50
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Availability: In stock
Secure payment · Fast delivery
EAN:W129306536Categories:, , Brand:
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Specifications
Specifications
| Battery Technology | Zinc-Carbon (Zn-C) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| PC health monitoring | CPU, Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 11 x64 |
| DirectX version | 12.0 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 6 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of noise detection headers | 1 |
| Number of RGB LED pin headers | 4 |
| Number of SATA III connectors | 4 |
| Number of temperature sensor headers | 2 |
| Number of water pump connectors | 3 |
| RGB LED pin header | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Products per shipping (inner) case | 1 pc(s) |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 9000 MHz |
| Supported memory clock speeds | 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000, 8200, 8400, 8600, 8800, 9000 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8126 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | Qualcomm QCNCM865 |
| Weight | 3730 g |
| Antenna included | Yes |
| Batteries included | Yes |
| Screws included | Yes |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Digital audio optical out | 1 |
| DisplayPort version | 1.4 |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB4 Gen 2x2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| WiFi-AP antenna jack | 2 |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 10, 5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported storage drive types | HDD & SSD |
| Warranty period | 3 year(s) |
| Brand Name | Gigabyte |
| Warranty | 1 year |
