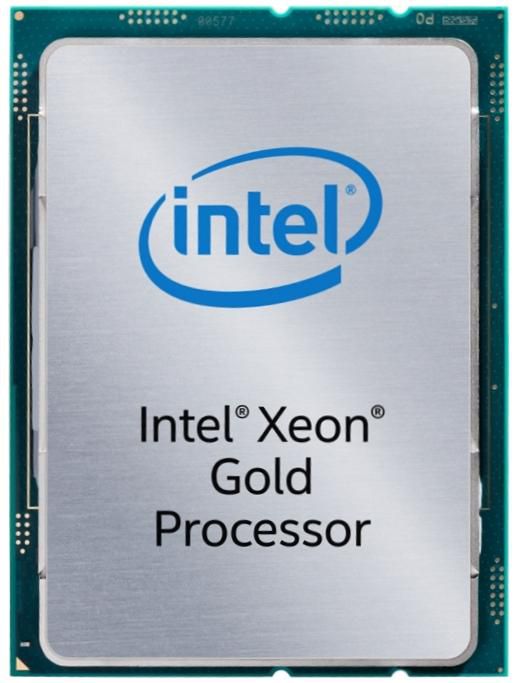

Lenovo Intel Xeon Gold 6146 Processor 24.75M Cache, 3.20 GHz
Intel® Speed Shift Technology Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency. Intel® Turbo Boost Technology Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t. Intel® vPro™ Technology Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and
Availability: In stock
Intel® Speed Shift Technology Intel® Turbo Boost Technology Intel® vPro™ Technology Intel® Hyper-Threading Technology Intel® Speed Shift Technology Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency. Intel® Turbo Boost Technology Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t. Intel® vPro™ Technology Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations. Intel® Hyper-Threading Technology Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Specifications
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Scalability | S4S |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| ECC | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Memory channels | Hexa-channel |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Tcase | 76 °C |
| Compatibility | Compute Module HNS2600BPB, Compute Module HNS2600BPQ, Compute Module HNS2600BPS, Server Board S2600BPB, Server Board S2600BPQ, Server Board S2600BPS, Server Board S2600STB, Server Board S2600WF0, Server System R2208WF0ZS, Server System R2208WFTZS, Server System R2308WFTZS |
| Bus type | UPI |
| Component for | Server/workstation |
| Processor ARK ID | 124942 |
| Processor base frequency | 3,2 GHz |
| Processor boost frequency | 4,2 GHz |
| Processor cache | 24,75 MB |
| Processor cache type | L3 |
| Processor code | SR3MA |
| Processor codename | Skylake |
| Processor cores | 12 |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor lithography | 14 nm |
| Processor model | 6146 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon Gold 6000 Series |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 24 |
| Stepping | H0 |
| Thermal Design Power (TDP) | 165 W |
| Conflict-Free processor | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-IN | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro™ Platform Eligibility | Yes |
| Launch date | Q3'17 |
| Status | Launched |
| Brand Name | Lenovo |
| Warranty | 1 year |
| Processor package size | 76 x 56.5 mm |
