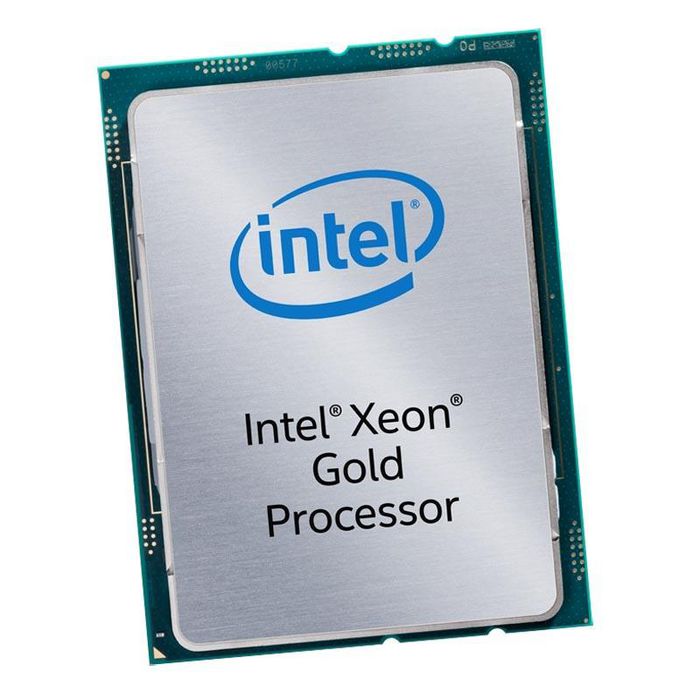

Lenovo Intel Xeon Gold 6140 18C 140W 2.3GHz ThinkSystem SR570 Processor Option Kit
€37,18
For the SR570 server models that come standard with one processor, the second processor can be ordered, if required. The second processor must be of the same model as the first processor. The second processor option includes a processor, a heatsink, and two additional single-rotor system fans.
Availability: In stock
Secure payment · Fast delivery
EAN:W128172892Categories:, , Brand:
For the SR570 server models that come standard with one processor, the second processor can be ordered, if required. The second processor must be of the same model as the first processor. The second processor option includes a processor, a heatsink, and two additional single-rotor system fans.
Specifications
Specifications
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Scalability | S4S |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Memory channels | Hepta-channel |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Tcase | 91 °C |
| Component for | Server/workstation |
| Cooler included | Yes |
| Processor base frequency | 2,3 GHz |
| Processor boost frequency | 3,7 GHz |
| Processor cache | 24,75 MB |
| Processor cache type | L3 |
| Processor codename | Skylake |
| Processor cores | 18 |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor lithography | 14 nm |
| Processor model | 6140 |
| Processor operating modes | 64-bit |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 36 |
| Stepping | H0 |
| Thermal Design Power (TDP) | 140 W |
| Conflict-Free processor | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-IN | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro™ Platform Eligibility | Yes |
| Brand Name | Lenovo |
| Warranty | 1 year |
| Processor package size | 76.0 x 56.5 mm |
