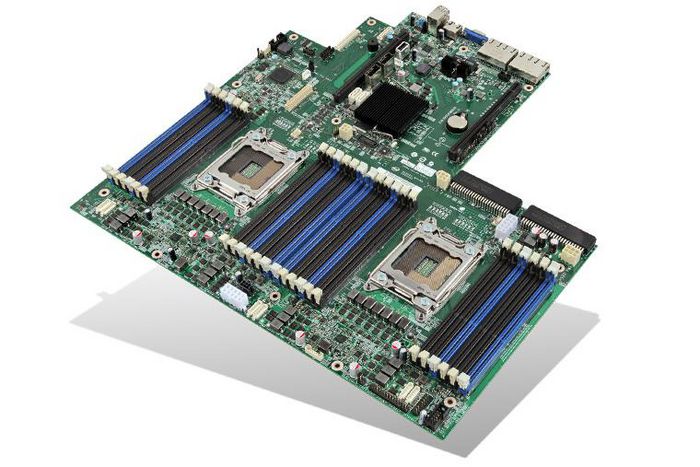

Intel Server Board S2600GZ
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card. Advanced Encryption Standard New Instructions (AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, anthentication, random number generation, and authenticated encryption. Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
Availability: In stock
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card. Advanced Encryption Standard New Instructions (AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, anthentication, random number generation, and authenticated encryption. Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
Specifications
| PCI Express slots version | 3.0 |
| PCI Express x1 slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 slots | 6 |
| PCI Express x8 slots | 2 |
| Component for | Server |
| Embedded USB (eUSB) SSD option | Yes |
| Market segment | Server |
| Motherboard chipset | Intel® C602 |
| Physical Address Extension (PAE) | Yes |
| Rack-Friendly board | Yes |
| Discrete graphics support | Yes |
| On-board graphics card | Yes |
| Number of SATA connectors | 10 |
| Total number of SATA connectors | 10 |
| USB 2.0 connectors | 4 |
| ECC сompatibility | ECC |
| Maximum internal memory | 768,55 GB |
| Maximum RDIMM memory | 768 GB |
| Memory bandwidth (max) | 682.5 GB/s |
| Memory channels | Octa-channel |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3-SDRAM |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Chassis type | Rack |
| Commodity Classification Automated Tracking System (CCATS) | G145323 |
| CPU configuration (max) | 2 |
| Discrete graphics card model | Supported |
| Embedded options available | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Graphics output | D-sub |
| Intel Node Manager | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Maximum UDIMM memory | 768 GB |
| Motherboard ARK ID | 56253 |
| Number of DIMM slots | 24 |
| Number of processors supported | 2 |
| Packaging content | (1) Intel Server Board S2600GZ4. |
| PCI Express CEM revision | 3.0 |
| Supplemental SKU | No |
| Supported RDIMM clock speeds | 1600 MHz |
| Supported UDIMM clock speeds | 1600 MHz |
| Thermal Design Power (TDP) | 135 W |
| Compatible processor series | Intel® Xeon® E5 Family |
| ECC supported by processor | Yes |
| Intel Xeon series | E5-2600 |
| Lithography | 32 nm |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory bandwidth supported by processor (max) | 119.4 GB/s |
| Number of QPI links | 2 |
| Processor manufacturer | Intel |
| Processor number of cores supported | 4, 6, 8 |
| Processor socket | LGA 2011 (Socket R) |
| Processor thermal power (max) | 135 W |
| Product codename | Grizzly Pass |
| Product family | Dual-socket server board |
| Product series | Intel® Server Board S2600GZ Family |
| Supported QPI | 6.4, 7.2, 8 |
| Connector for Intel I/O Expansion Module x8 Gen 3 | 1 |
| Integrated BMC with IPMI | Yes |
| Integrated systems available | Yes |
| Intel AC'97 technology | No |
| Intel Active Management Technology version | No |
| Intel Advanced Management Technology | Yes |
| Intel Build Assurance Technology | Yes |
| Intel Clear Video Technology | No |
| Intel Client Initiated Remote Access (CIRA) technology | No |
| Intel Dual Display Capable Technology | No |
| Intel Efficient Power Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel I/O Acceleration Technology | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Intel Quick Resume Technology | No |
| Intel Quiet System Technology (QST) | No |
| Intel Quiet Thermal Technology | Yes |
| Intel Rapid Storage Technology | No |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Remote Management Module Support | Y |
| Intel Remote PC Assist Technology (RPAT) | No |
| Intel Server Customization Technology | Yes |
| Intel Server Management Software | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Active Management Technology (Intel® AMT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® Remote Wake Technology (Intel® RWT) | No |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 1.2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Number of SAS ports | 0 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 2 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| RAID levels | 5 |
| Supported storage drive interfaces | SATA, SATA II |
| Additional information URL | http://www.intel.com/content/www/us/en/motherboards/server-motherboards/server-board-s2600gl-gz.html |
| Born on date | Q1'12 |
| End of life date announce | Wednesday, December 21, 2016 |
| FireWire support | Yes |
| Form factor | Custom 16.5" x 16.5" |
| Last change | 63903513 |
| Last order date | Friday, June 30, 2017 |
| Last receipt attributes date | Tuesday, October 31, 2017 |
| Launch date | Q1'12 |
| Maximum memory | 768,55 GB |
| Product name | Intel Server Board S2600GZ |
| Product type | Server/Workstation Board |
| Status | Discontinued |
| Supported RAID configuration | Up to SW Raid 5 (LSI + RSTE) |
| Sustainability certificates | ENERGY STAR |
| USB ports quantity | 7 |
| USB version | 2.0 |
| Brand Name | Intel |
| Warranty | 1 year |
