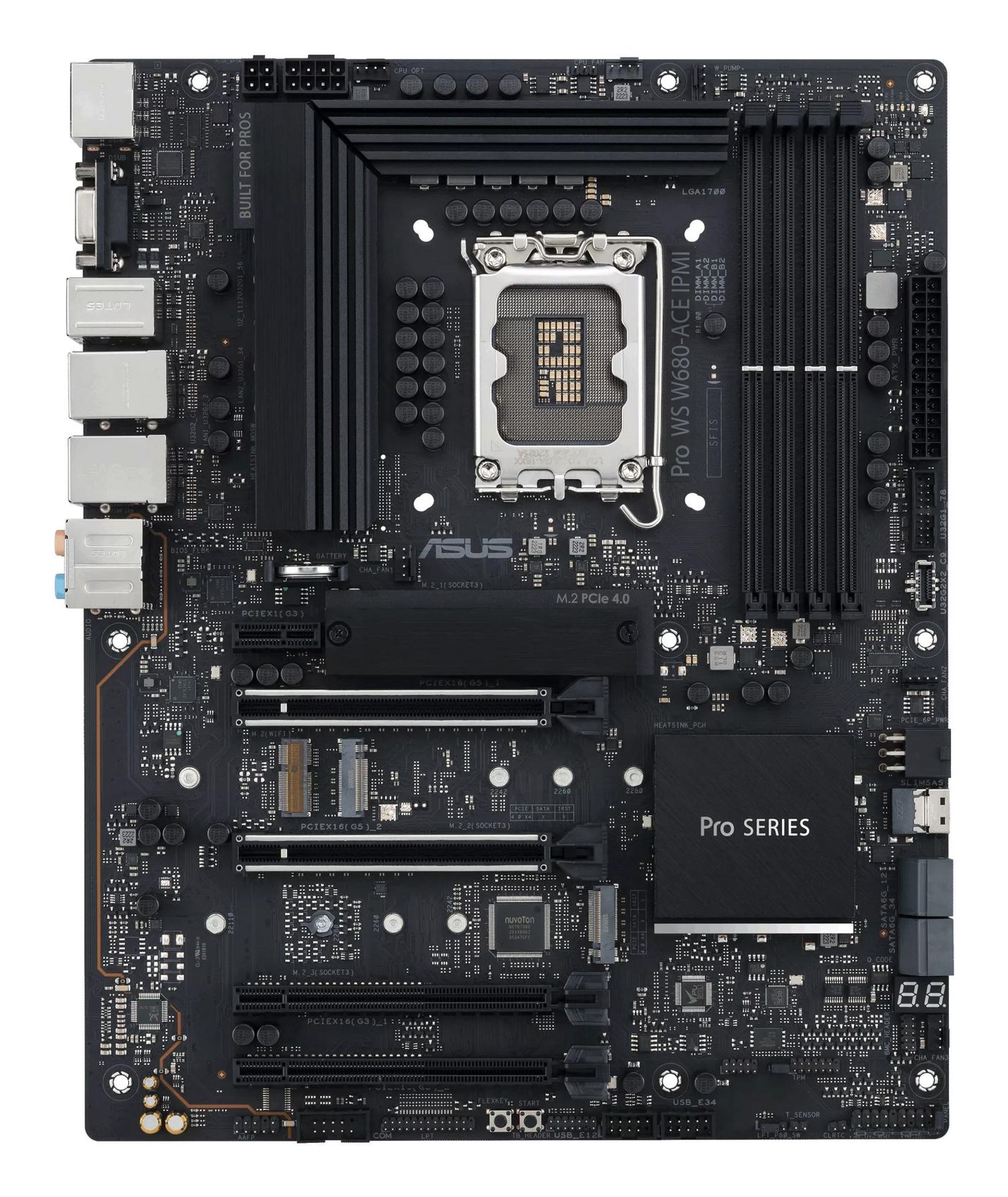

Pro Ws W680-Ace Ipmi Intel
€556,47
Pro Ws W680-Ace Ipmi Intel
Availability: In stock
Secure payment · Fast delivery
EAN:W129040933Categories:, , Brand:
Pro Ws W680-Ace Ipmi Intel
Specifications
Specifications
| BIOS | BIOS memory size 256 MbitBIOS type UEFI AMI |
| BIOS memory size 256 Mbit | BIOS type UEFI AMI |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | Intel W680 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Graphics | Parallel processing technology support Not supported |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Integrated SAS ports | 1 |
| Number of chassis fan connectors | 3 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| USB 3.2 Gen 2x2 connectors | 1 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Network | Ethernet interface type 2.5 Gigabit Ethernet Ethernet LAN Yes Wi-Fi No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Other features | Back-to-BIOS button Yes Number of M.2 (E) slots 1 |
| Back-to-BIOS button Yes | Number of M.2 (E) slots 1 |
| Back-to-BIOS button | Yes |
| Number of M.2 (E) slots | 1 |
| Packaging content | Cables included SATA, USBUser guide Yes |
| Cables included SATA, USB | User guide Yes |
| Cables included | SATA, USB |
| User guide | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| IPMI LAN (RJ-45) port | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0, 1, 10, 5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, NVMe, SATA III |
| Supported storage drive types | HDD & SSD |
| Vendor information | Brand Name Asus Warranty 1 År |
| Brand Name Asus | Warranty 1 År |
| Brand Name | Asus |
| Warranty | 1 År |
| Hovedkategori | Server, Computer & Printer Parts |
| Underkategori | Motherboards |
