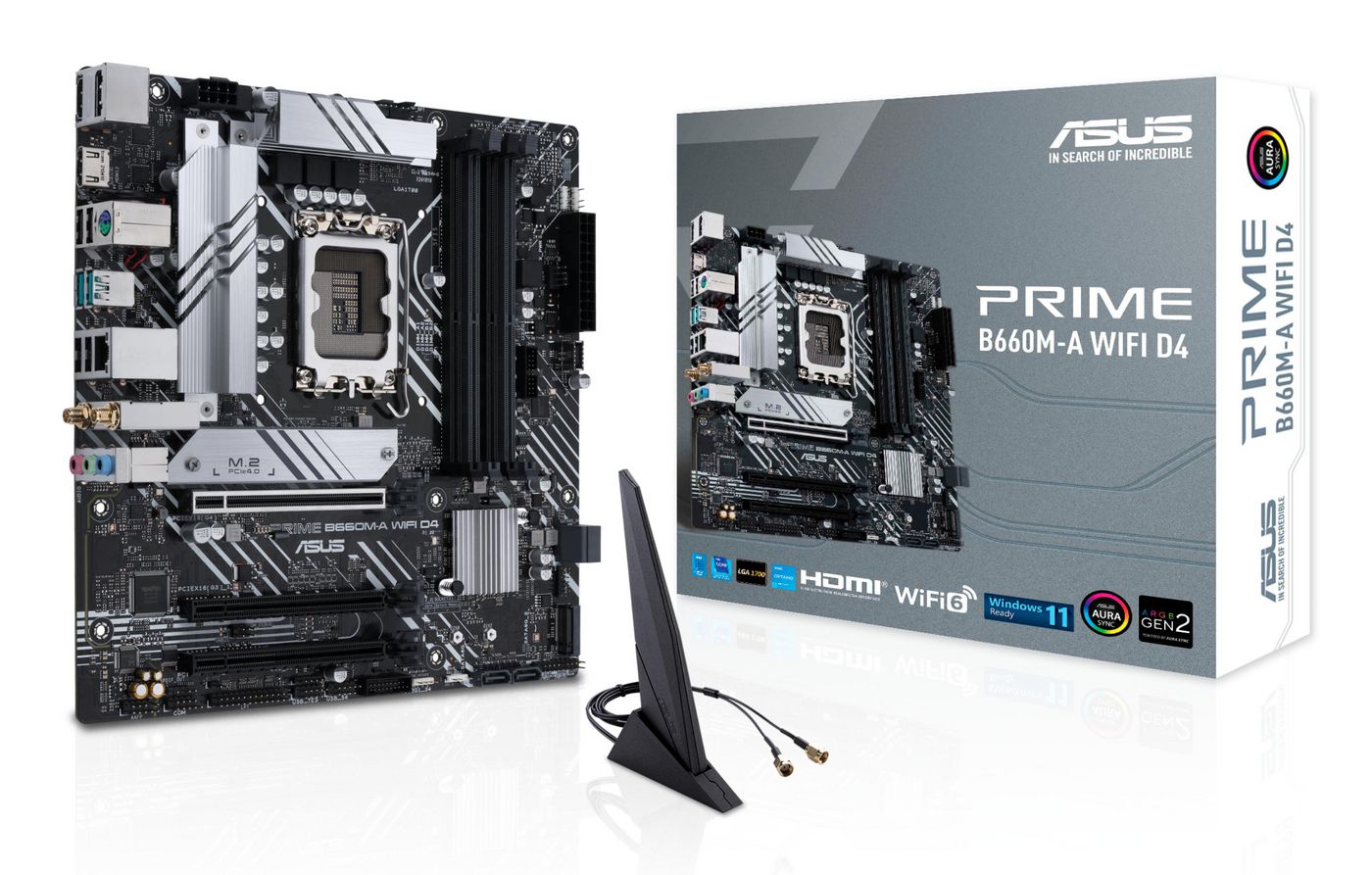

Prime B660M-A Wifi D4 Intel
€140,55
Prime B660M-A Wifi D4 Intel
Availability: In stock
Secure payment · Fast delivery
EAN:W128338211Categories:, , Brand:
Prime B660M-A Wifi D4 Intel
Specifications
Specifications
| BIOS | BIOS memory size 128 MbitBIOS type UEFI AMI |
| BIOS memory size 128 Mbit | BIOS type UEFI AMI |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Expansion slots | Number of M.2 (M) slots 2 PCI Express x16 (Gen 3.x) slots 2 PCI Express x16 (Gen 4.x) slots 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel B660 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | Number of displays supported 3 |
| Number of displays supported | 3 |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Non-ECC | Yes |
| Number of memory slots | 4 |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4400, 4600, 4800, 5000, 5333 |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Other features | Weight 819 g |
| Weight | 819 g |
| Packaging content | Cables included SATA Drivers included Yes |
| Cables included SATA | Drivers included Yes |
| Cables included | SATA |
| Drivers included | Yes |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| Storage controllers | RAID levels 0, 1, 10, 5Supported storage drive interfaces M.2, SATASupported storage drive types HDD & SSD |
| RAID levels | 0, 1, 10, 5 |
| Supported storage drive interfaces | M.2, SATA |
| Supported storage drive types | HDD & SSD |
| Vendor information | Brand Name Asus Warranty 1 År |
| Brand Name Asus | Warranty 1 År |
| Brand Name | Asus |
| Warranty | 1 År |
| Hovedkategori | Server, Computer & Printer Parts |
| Underkategori | Motherboards |
