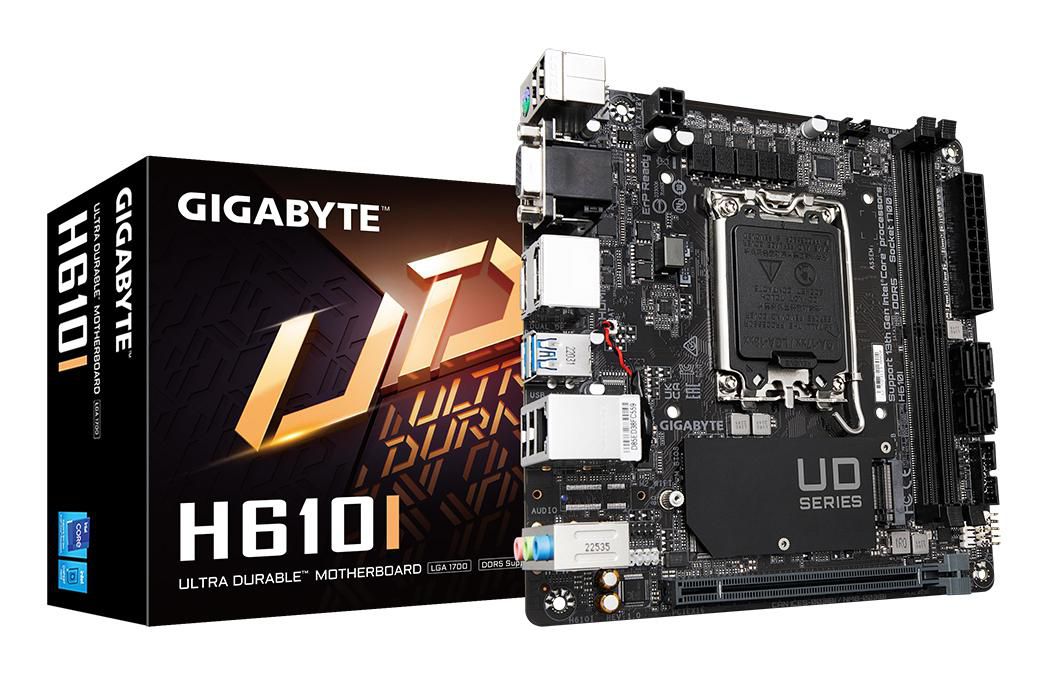

Motherboard - Supports Intel
€143,32
Motherboard - Supports Intel
Availability: In stock
Secure payment · Fast delivery
EAN:W128899595Categories:, , Brand:
Motherboard - Supports Intel
Specifications
Specifications
| Battery | Battery weight 3 gNumber of battery cells 1 |
| Battery weight 3 g | Number of battery cells 1 |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Expansion slots | Number of M.2 (M) slots 1 PCI Express x16 slots 1 |
| Number of M.2 (M) slots 1 | PCI Express x16 slots 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 slots | 1 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Active |
| Motherboard chipset | Intel H610 Express |
| Motherboard chipset family | Intel |
| Motherboard form factor | mini ITX |
| PC health monitoring | Fan, Temperature, Voltage |
| Power source type | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics card | HD Graphics |
| Graphics card family | Intel |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Logistics data | Products per shipping (inner) case 1 pc(s) |
| Products per shipping (inner) case | 1 pc(s) |
| ECC | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Non-ECC | Yes |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 5600 MHz |
| Supported memory clock speeds | 4400, 4800, 5200, 5600 |
| Supported memory module capacities | 12GB, 16GB, 1GB, 2GB, 32GB, 4GB, 8GB |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Network | Ethernet interface type Gigabit Ethernet Ethernet LAN Yes Wi-Fi No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Batteries included | Yes |
| Bundled software | Norton Internet Security (OEM version), LAN bandwidth management software |
| Cables included | SATA |
| Compatible processor series | Intel Pentium G, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum internal memory supported by processor | 64 GB |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 2 |
| DVI-D ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Number of HDDs supported | 1 |
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Technical details | Warranty period 3 year(s) |
| Warranty period | 3 year(s) |
| Vendor information | Brand Name Gigabyte Warranty 1 År |
| Brand Name Gigabyte | Warranty 1 År |
| Brand Name | Gigabyte |
| Warranty | 1 År |
| Hovedkategori | Server, Computer & Printer Parts |
| Underkategori | Motherboards |
