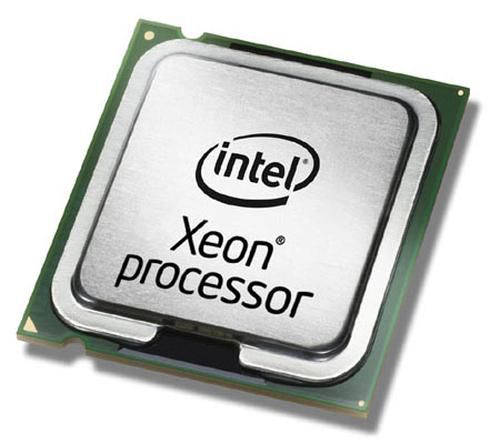

Lenovo Intel Xeon E5-2630 v4, 25M Cache, 2.2 GHz, 8 GT/s QPI, Factory Integrated
Increase the processing power of your ThinkServer Dual-Socket systems with Intel Xeon E5-2600 family processors to boost your system's performance for advanced applications, technical computing, multithread applications, virtualization, and multitasking. The ThinkServer solutions based on the new Intel Xeon processor E5-2600 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient. From virtualization and cloud computing solutions to design automation or real-time financial transactions, you’ll be delighted by better than ever performance no matter what tasks you face.
Availability: In stock
Increase the processing power of your ThinkServer Dual-Socket systems with Intel Xeon E5-2600 family processors to boost your system's performance for advanced applications, technical computing, multithread applications, virtualization, and multitasking. The ThinkServer solutions based on the new Intel Xeon processor E5-2600 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient. From virtualization and cloud computing solutions to design automation or real-time financial transactions, you’ll be delighted by better than ever performance no matter what tasks you face.
Specifications
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | Yes |
| Scalability | 2S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| ECC | Yes |
| Maximum internal memory supported by processor | 1,5 TB |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600, 1866, 2133 |
| Memory types supported by processor | DDR4-SDRAM |
| Tcase | 74 °C |
| Compatibility | System x3550 M5 |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | No |
| Memory bandwidth supported by processor (max) | 68.3 GB/s |
| Number of QPI links | 2 |
| Processor base frequency | 2,2 GHz |
| Processor boost frequency | 3,1 GHz |
| Processor cache | 25 MB |
| Processor cache type | Smart Cache |
| Processor codename | Broadwell |
| Processor cores | 10 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor frequency | 2,2 GHz |
| Processor lithography | 14 nm |
| Processor model | E5-2630V4 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 20 |
| Stepping | R0 |
| System bus rate | 8 GT/s |
| Thermal Design Power (TDP) | 85 W |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Flex Memory Access | No |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-IN | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® vPro™ Technology | Yes |
| Brand Name | Lenovo |
| Warranty | 1 year |
