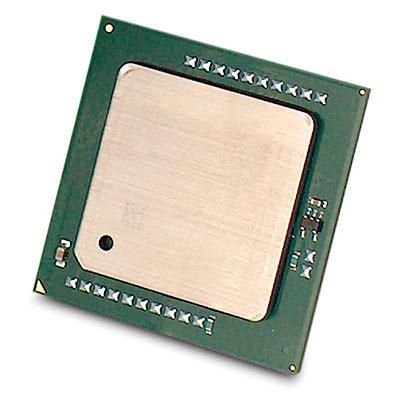

Intel Xeon L5630
€10,22
Intel Xeon L5630
Availability: In stock
Secure payment · Fast delivery
EAN:69Y1359-RFBCategories:, , Brand:
Intel Xeon L5630
Specifications
Specifications
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Server |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Graphics | On-board graphics card No |
| On-board graphics card | No |
| ECC | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Memory channels | Triple-channel |
| Memory clock speeds supported by processor | 1066, 800 |
| Memory types supported by processor | DDR3-SDRAM |
| Operational conditions | Tcase 63,1 °C |
| Tcase | 63,1 °C |
| Bus type | QPI |
| Component for | Server/workstation |
| Memory bandwidth supported by processor (max) | 25,6 GB/s |
| Number of QPI links | 2 |
| Processor base frequency | 2,13 GHz |
| Processor boost frequency | 2,4 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor cores | 4 |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor frequency | 2,13 GHz |
| Processor lithography | 32 nm |
| Processor model | L5630 |
| Processor operating modes | 64-bit |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 8 |
| System bus rate | 5,86 GT/s |
| Thermal Design Power (TDP) | 40 W |
| VID Voltage Range | 0.750 - 1.350 V |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Vendor information | Brand Name IBM Warranty 1 År |
| Brand Name IBM | Warranty 1 År |
| Brand Name | IBM |
| Warranty | 1 År |
| Hovedkategori | Server, Computer & Printer Parts |
| Underkategori | CPUs |
