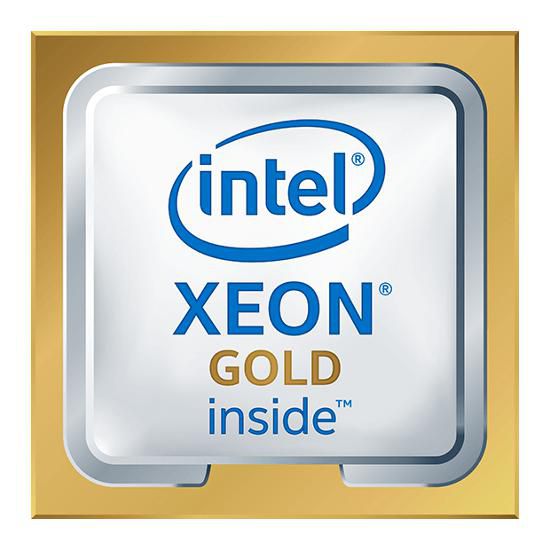

Dell Intel Xeon Gold 6254 3.1G, 18C/36T, 10.4GT/s, 24.75M Cache, Turbo, HT (200W) DDR4-2933
The Intel Xeon® Gold 6254 3.1GHz Eighteen Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption. Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Gold 6254 3.1GHz Eighteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Availability: In stock
The Intel Xeon® Gold 6254 3.1GHz Eighteen Core Processor enhances the performance and the speed of your system. Additionally, the Virtualization Technology enables migration of more environments. It supports enhanced SpeedStep® technology that allows tradeoffs to be made between performance and power consumption. Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Gold 6254 3.1GHz Eighteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
Specifications
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express CEM revision | 3.0 |
| PCI Express slots version | 3.0 |
| Scalability | 4S |
| Supported instruction sets | AVX-512 |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| ECC | Yes |
| Maximum internal memory supported by processor | 1 TB |
| Memory channels | Hexa-channel |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Tcase | 82 °C |
| Compatibility | - PowerEdge C6420, - PowerEdge MX740C, - PowerEdge MX840c, - PowerEdge R640, - PowerEdge R740, - PowerEdge R740XD, - PowerEdge R840, - PowerEdge R940, - PowerEdge R940xa |
| Box | No |
| Component for | Server/workstation |
| Cooler included | No |
| Package type | Tray |
| Processor ARK ID | 192451 |
| Processor base frequency | 3,1 GHz |
| Processor boost frequency | 4 GHz |
| Processor cache | 24,75 MB |
| Processor codename | Cascade Lake |
| Processor cores | 18 |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor lithography | 14 nm |
| Processor manufacturer | Intel |
| Processor model | 6254 |
| Processor operating modes | 64-bit |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 36 |
| Thermal Design Power (TDP) | 200 W |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-IN | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Launch date | Q2'19 |
| Memory speed (max) | 2933 MHz |
| Number of UPI links | 3 |
| Product type | Processor |
| Status | Launched |
| Brand Name | Dell |
| Warranty | 1 year |
| Processor package size | 76.0 x 56.5 mm |
