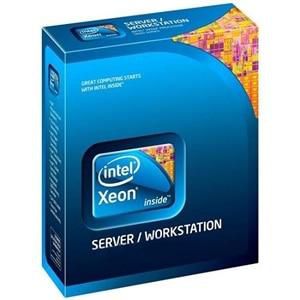

INTEL XEON 10 CORE CPU
€15,04
INTEL XEON 10 CORE CPU
Availability: In stock
Secure payment · Fast delivery
EAN:W127116775Categories:, , Brand:
INTEL XEON 10 CORE CPU
Specifications
Specifications
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Export Control Classification Number (ECCN) | 5A992C |
| Idle States | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express CEM revision | 3.0 |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | 46 bit |
| Scalability | 2S |
| Supported instruction sets | AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| ECC | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600, 1866, 2133 |
| Memory types supported by processor | DDR4-SDRAM |
| Operational conditions | Tcase 79 °C |
| Tcase | 79 °C |
| Other features | Intel® Virtualization Technology (Intel® VT) VT-d, VT-xMaximum internal memory 786432 MBMaximum internal memory 768 GB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 768 GB |
| Box | No |
| Bus type | QPI |
| Component for | Server/workstation |
| Cooler included | No |
| L3 cache speed | 2,6 GHz |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Number of QPI links | 2 |
| Package type | Box, Tray |
| Processor ARK ID | 81706 |
| Processor base frequency | 2,6 GHz |
| Processor boost frequency | 3,3 GHz |
| Processor cache | 25600 KB |
| Processor cache type | Smart Cache |
| Processor code | SR1XR |
| Processor codename | Haswell |
| Processor cores | 10 |
| Processor family | Intel Xeon E5 v3 |
| Processor lithography | 22 nm |
| Processor manufacturer | Intel |
| Processor model | E5-2660V3 |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-2600 v3 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 20 |
| Stepping | M1 |
| System bus rate | 9,6 GT/s |
| Thermal Design Power (TDP) | 105 W |
| VID Voltage Range | 0.65 - 1.3 V |
| Conflict-Free processor | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0 |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Transactional Synchronization Extensions | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Turbo Boost Technology 2.0 frequency | 3,3 GHz |
| Intel® vPro™ Platform Eligibility | Yes |
| Bus bandwidth | 9,6 |
| Bus speed | 9.6 GT/s |
| Bus type units | GT/s |
| Last change | 63903513 |
| Launch date | Q3'14 |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon v2 |
| Product family | Intel Xeon Processor E5 v3 Family |
| Product type | Processor |
| Status | Discontinued |
| Supported memory types | DDR4-SDRAM |
| Vendor information | Brand Name Dell Warranty 1 År |
| Brand Name Dell | Warranty 1 År |
| Brand Name | Dell |
| Warranty | 1 År |
| Weight & dimensions | Processor package size 52.5mm x 45mm mm |
| Processor package size | 52.5mm x 45mm mm |
| Hovedkategori | Server, Computer & Printer Parts |
| Underkategori | CPUs |
